NPU Accelerated Face Detection Instructions

Instructions

This example shows how to accelerate the operation of the YOLO-Fastest face detection model on the Titan Board using the Arm® Ethos™ -u55 NPU, And combine the CEU (Camera Engine Unit) camera interface and the RGB LCD display screen to achieve real-time face detection and display.

The main functions include:

Collect real-time video streams via CEU (OV5640 camera)
Perform YOLO-Fastest model inference on video frames using NPU Display the detection results (with face box) on the LCD screen
Supports hardware-accelerated YUV to RGB conversion and graphic rendering

Overall system architecture

The system data flow of this example is shown in the following figure:

[OV5640 Camera]
        │
        ▼
[CEU camera acquisition module]
        │ (YUV422)
        ▼
[DMA transfer to Frame Buffer (HyperRAM)]
        │
        ├──► [NPU (eethos -U55) runs YOLO-Fastest inference]
        │         │
        │         ▼
        │     [Test result: Coordinates + confidence level]
        │
        └──► [GLCDC Display controller]
                  │
                  ▼
          [RGB LCD real-time display]

Arm® Ethos™-U55 NPU Features

The RA8P1 MCU used by the Titan Board integrates the **Arm® Ethos™-U55 neural processing unit (NPU) **, which can work in coordination with the Cortex-M85 CPU to significantly enhance the inference performance of neural networks.

1. Hardware Features

Computing Power and Acceleration
- Supports INT8 quantized models
- Delivers performance up to several hundred GOPS (depending on configuration)
- Supports common operators such as convolution, pooling, ReLU, and Softmax
Collaboration with CPU
- Works with the Cortex-M85 through the CMSIS-NN and Ethos-U drivers
- Supports asynchronous execution between NPU and CPU
- Model pre-processing and post-processing are handled by the CPU
Memory and Bandwidth
- Supports direct feature map access from on-chip SRAM or external HyperRAM
- DMA accelerates model input/output data transfer
- Multi-level caching mechanisms reduce latency
Compatibility
- Fully compatible with TensorFlow Lite for Microcontrollers (TFLM)
- Supports model formats converted by the Arm NN SDK (.tflite)

YOLO-Fastest Model Introduction

YOLO-Fastest is a lightweight object detection network designed for real-time operation on embedded devices.

Item	Specification
Model Type	YOLO-Fastest (Face Detection)
Model Framework	TensorFlow Lite (INT8)
Input Size	192 x 192
Output	Face bounding box coordinates + confidence
Inference Time (Ethos-U55)	Approx. 25 ms/frame
Application Scenarios	Face detection / Real-time visual recognition

FSP Configuration

HyperRAM Configure

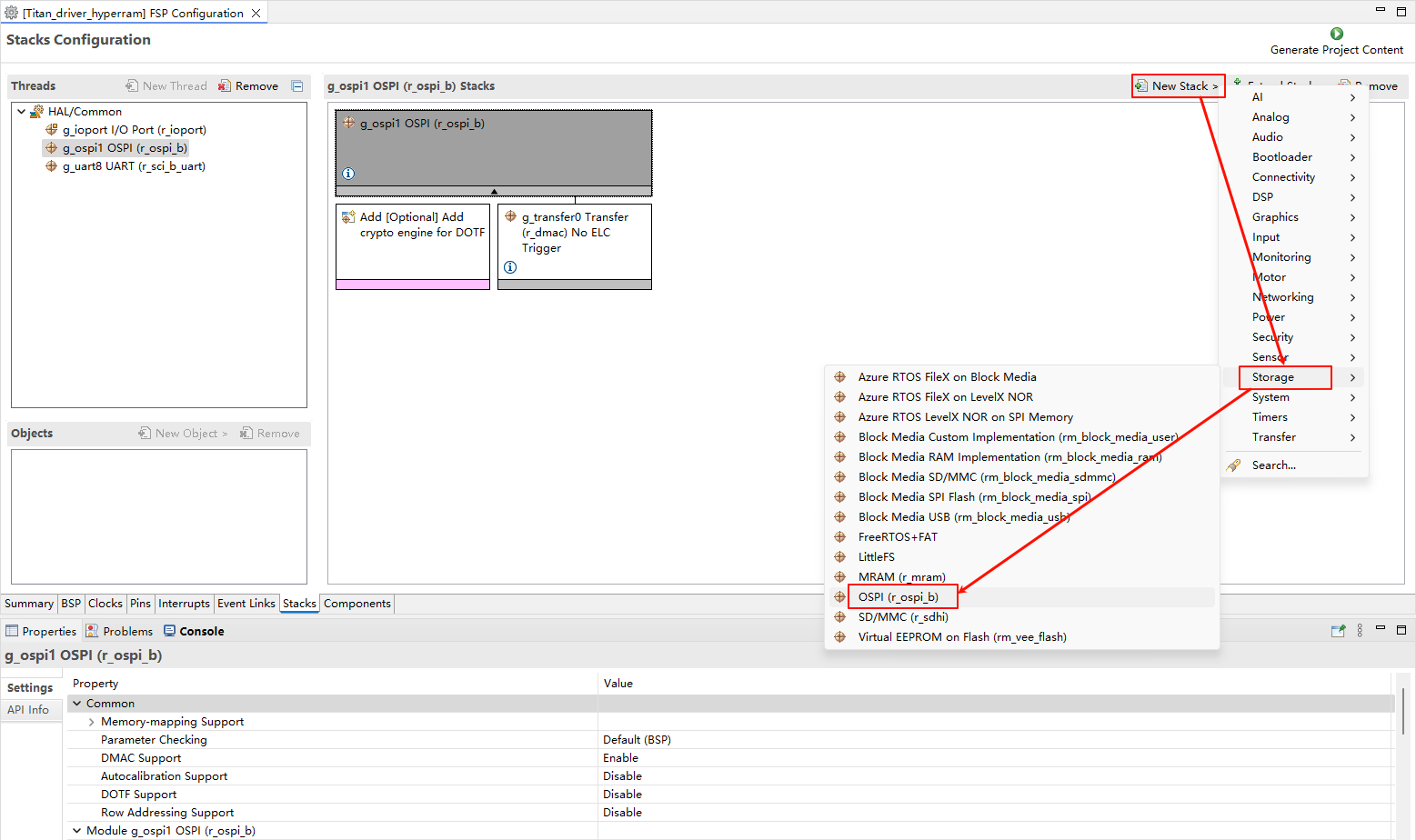

Create a r_ospi_b stack:

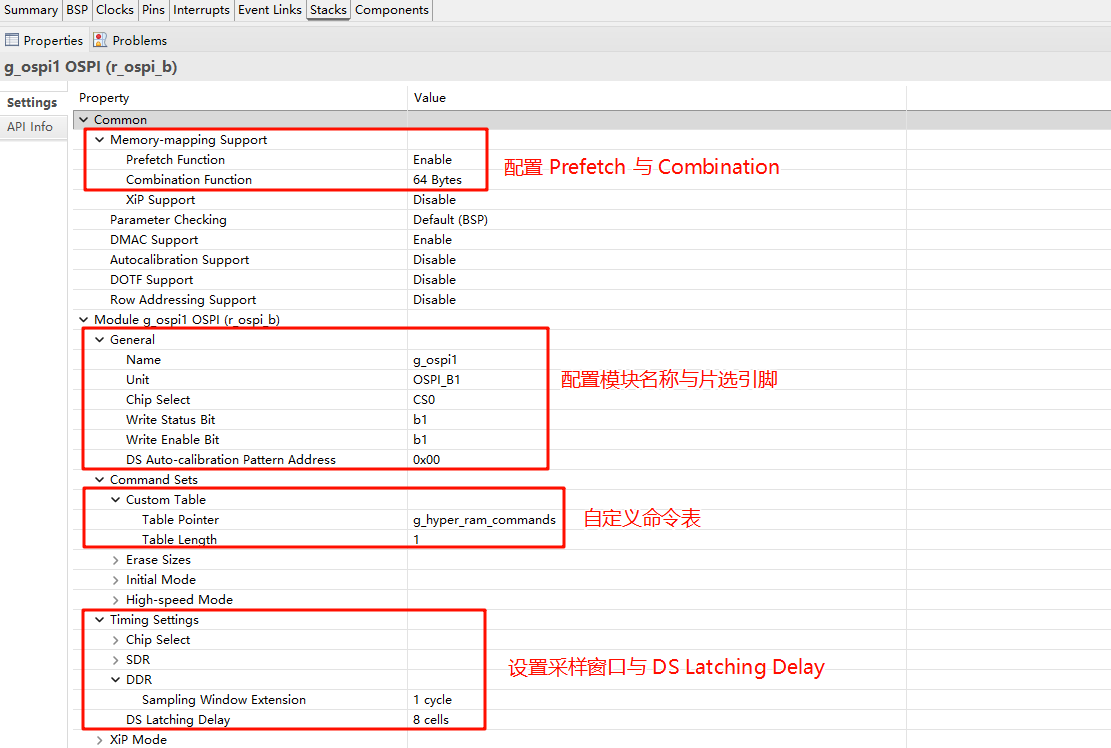

Configure r_ospi_b stack:

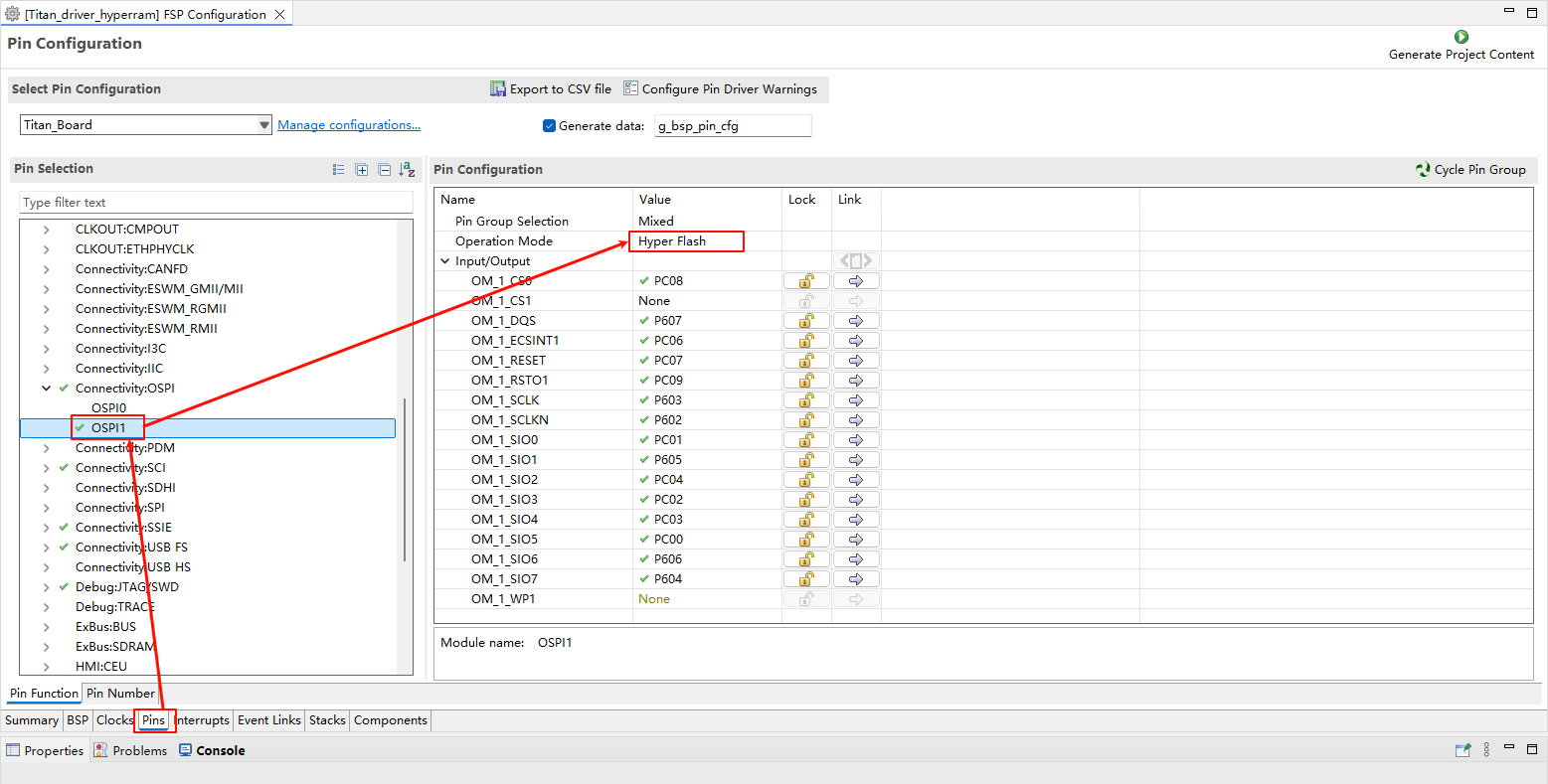

HyperRAM pins configure:

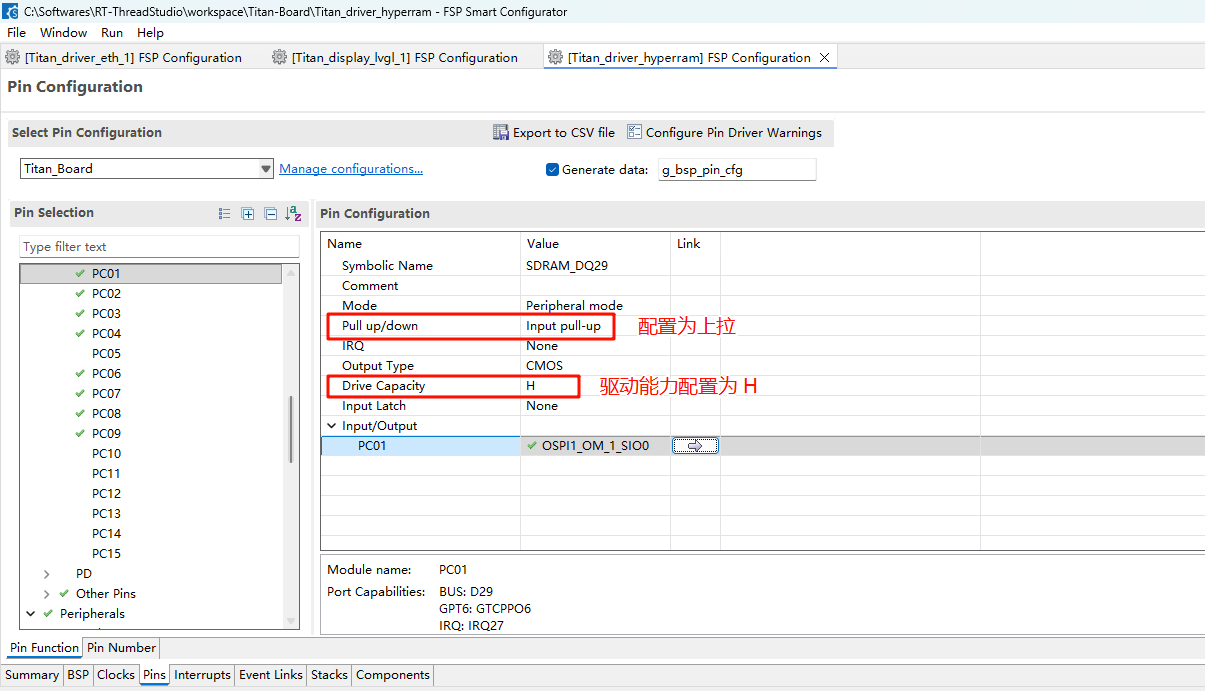

Set the drive strength of all HyperRAM-related pins to High (H), and configure OM_1_SIO0~OM_1_SIO7 as input with pull-up.

CEU Configuration

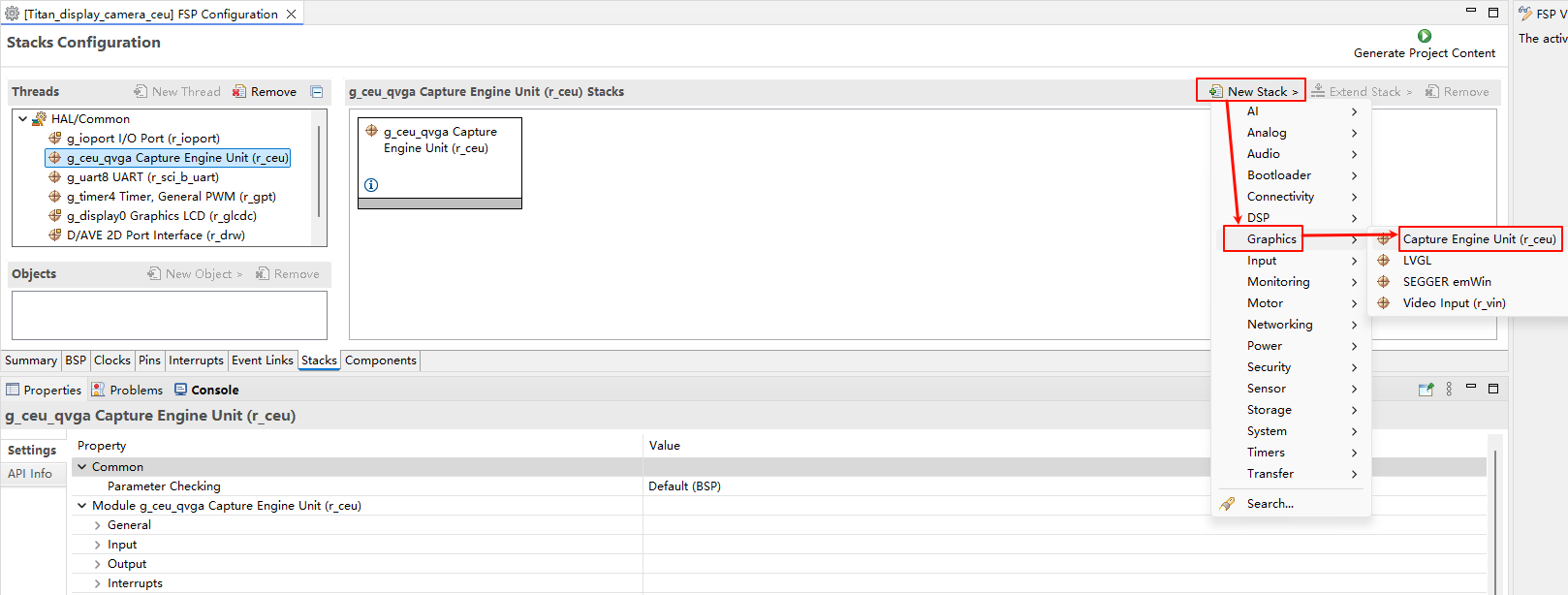

Create a r_ceu stack:

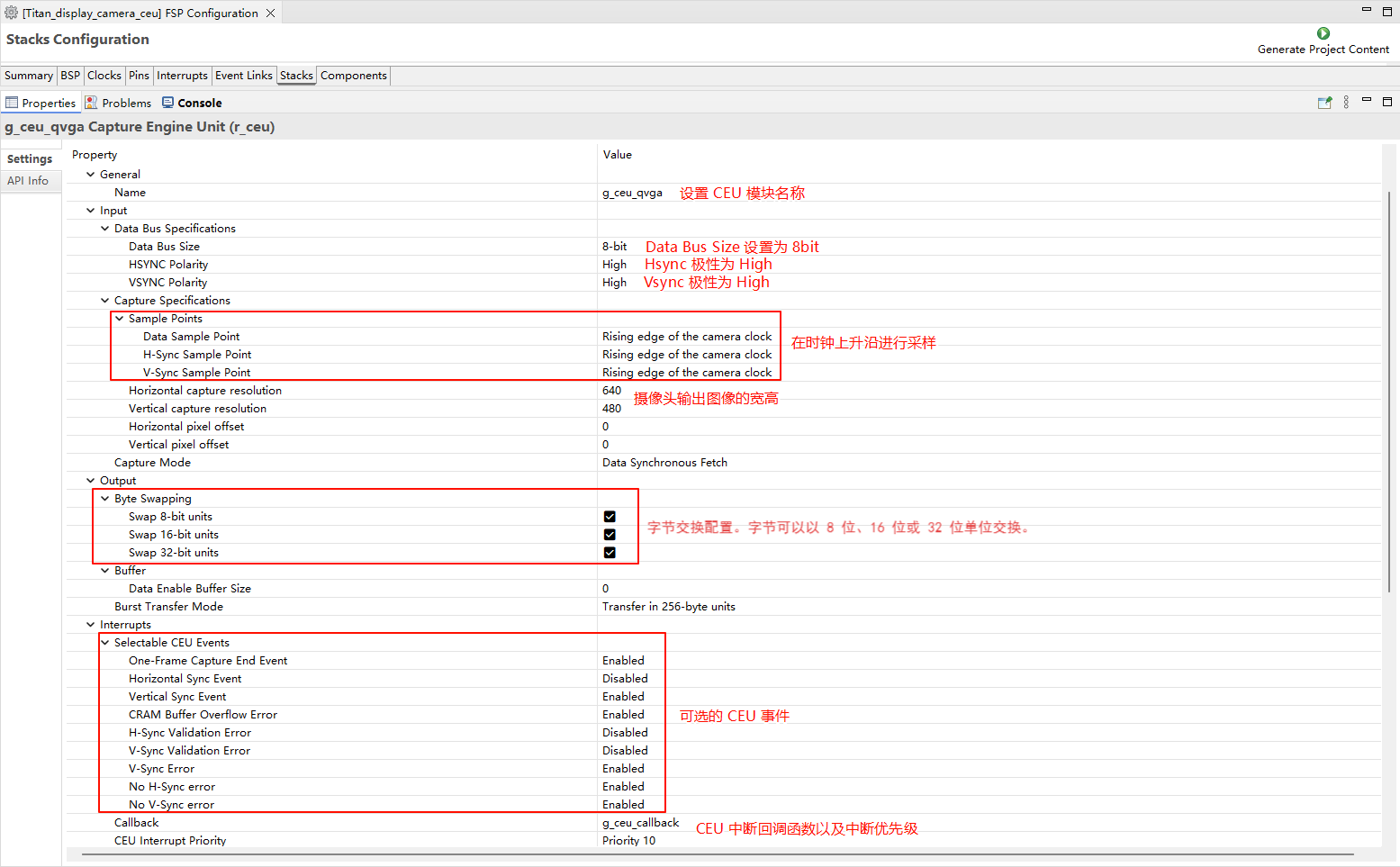

Configure CEU:

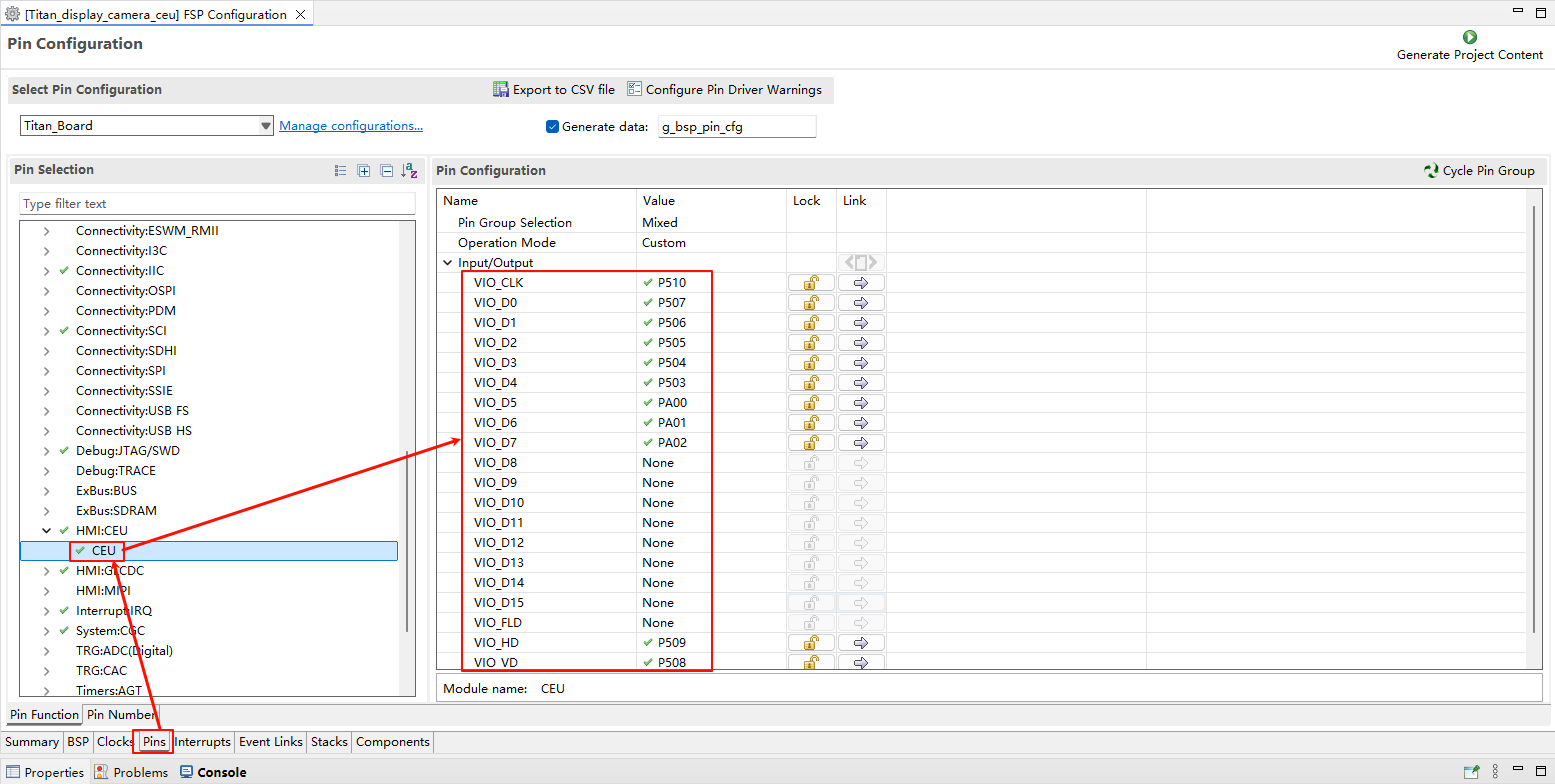

Configure CEU pins:

CEU Clock Configuration

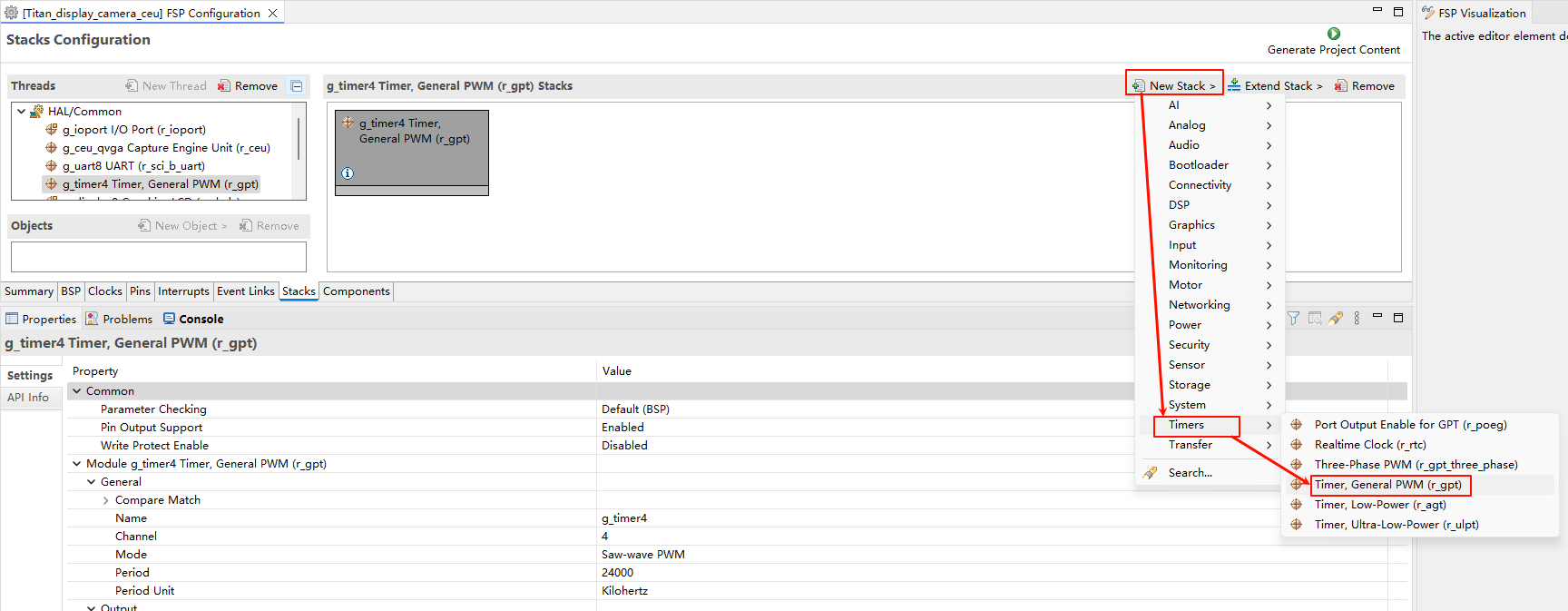

Create a r_gpt stack:

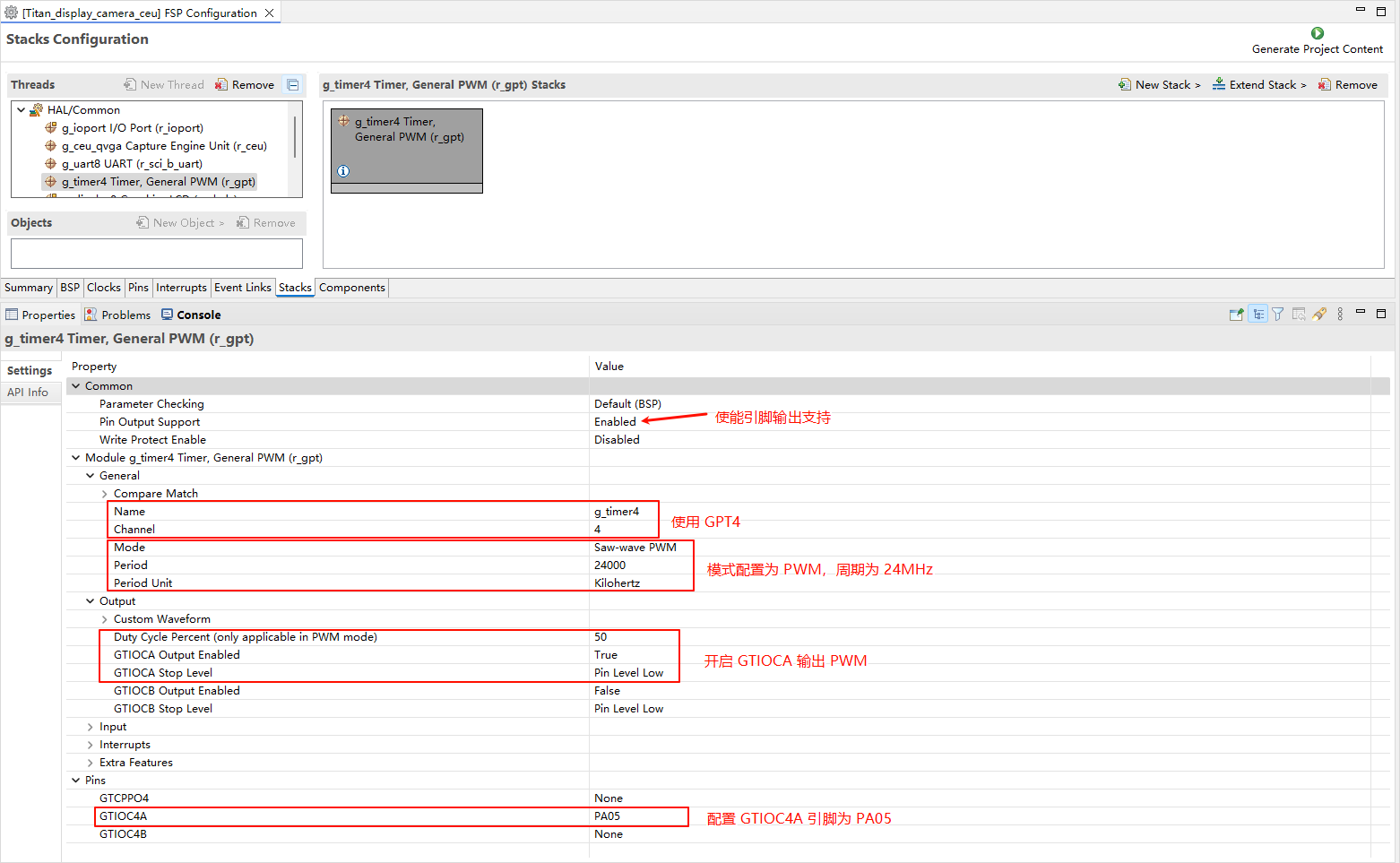

Configure the PWM output of the camera clock

D/AVE 2D Configuration

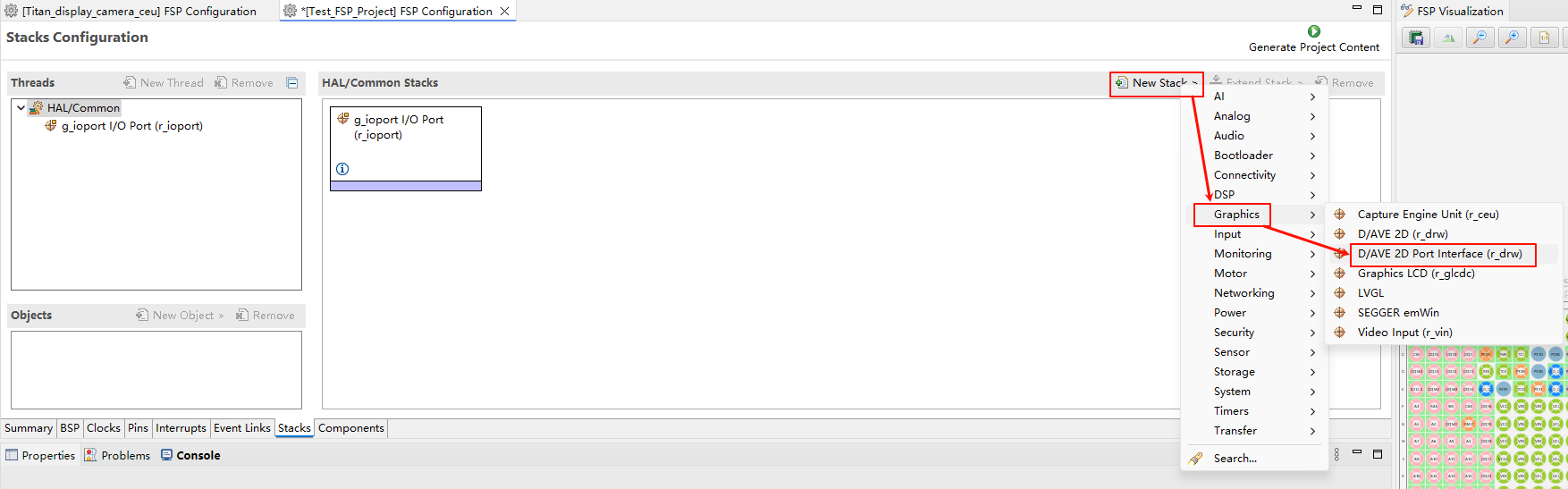

Create a r_drw stack:

RGB LCD Configuration

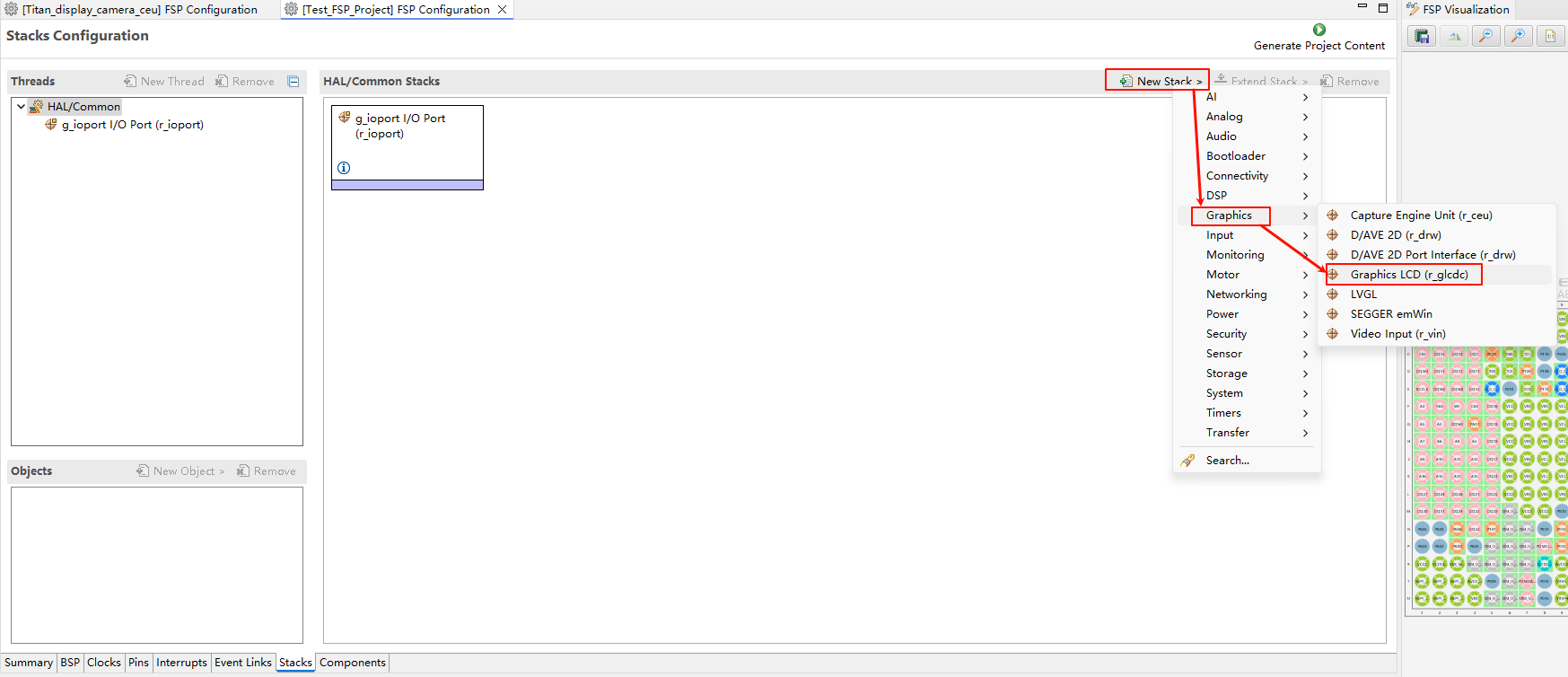

Create a r_glcdc stack:

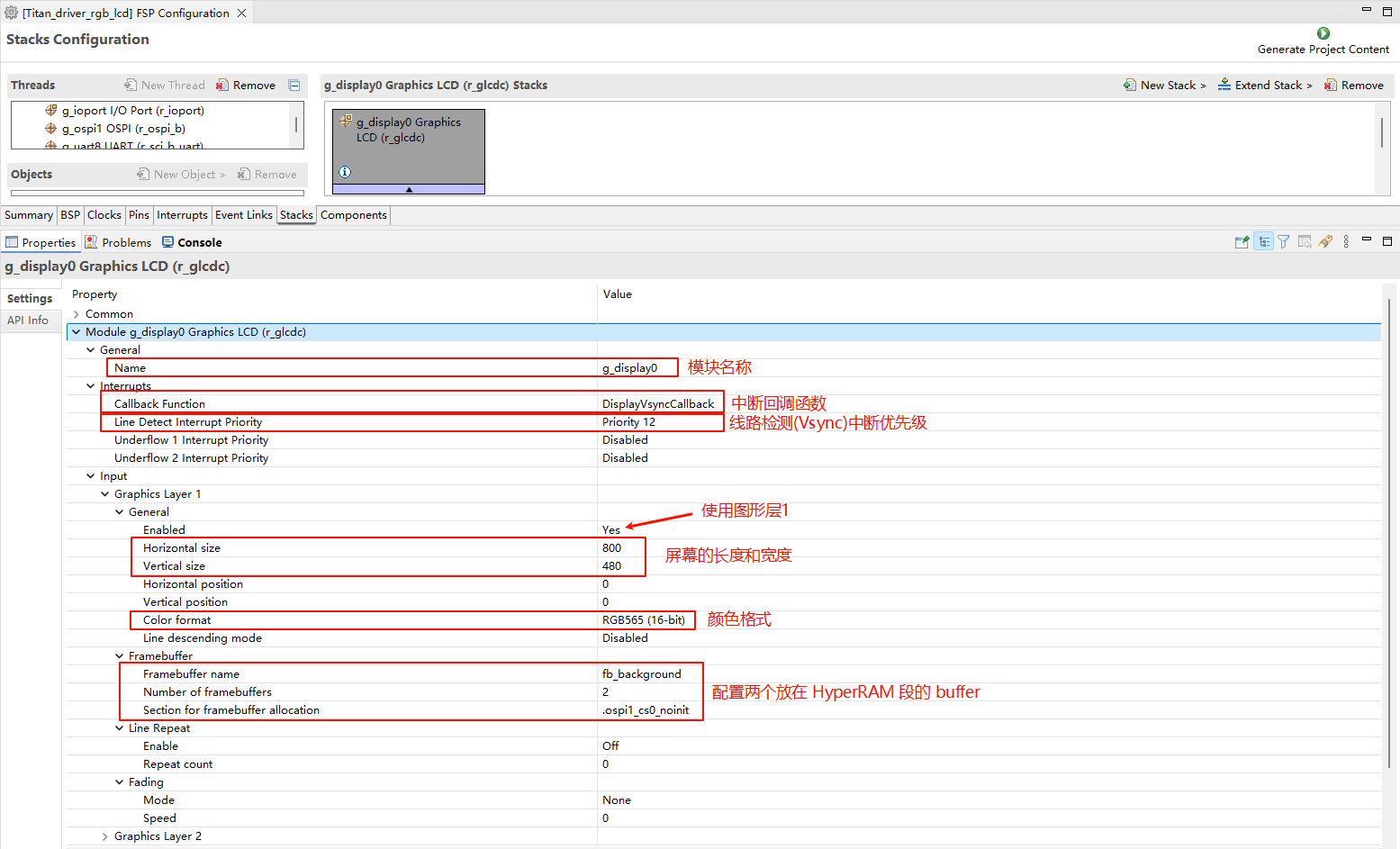

Configure interrupt callback and graphics Layer 1:

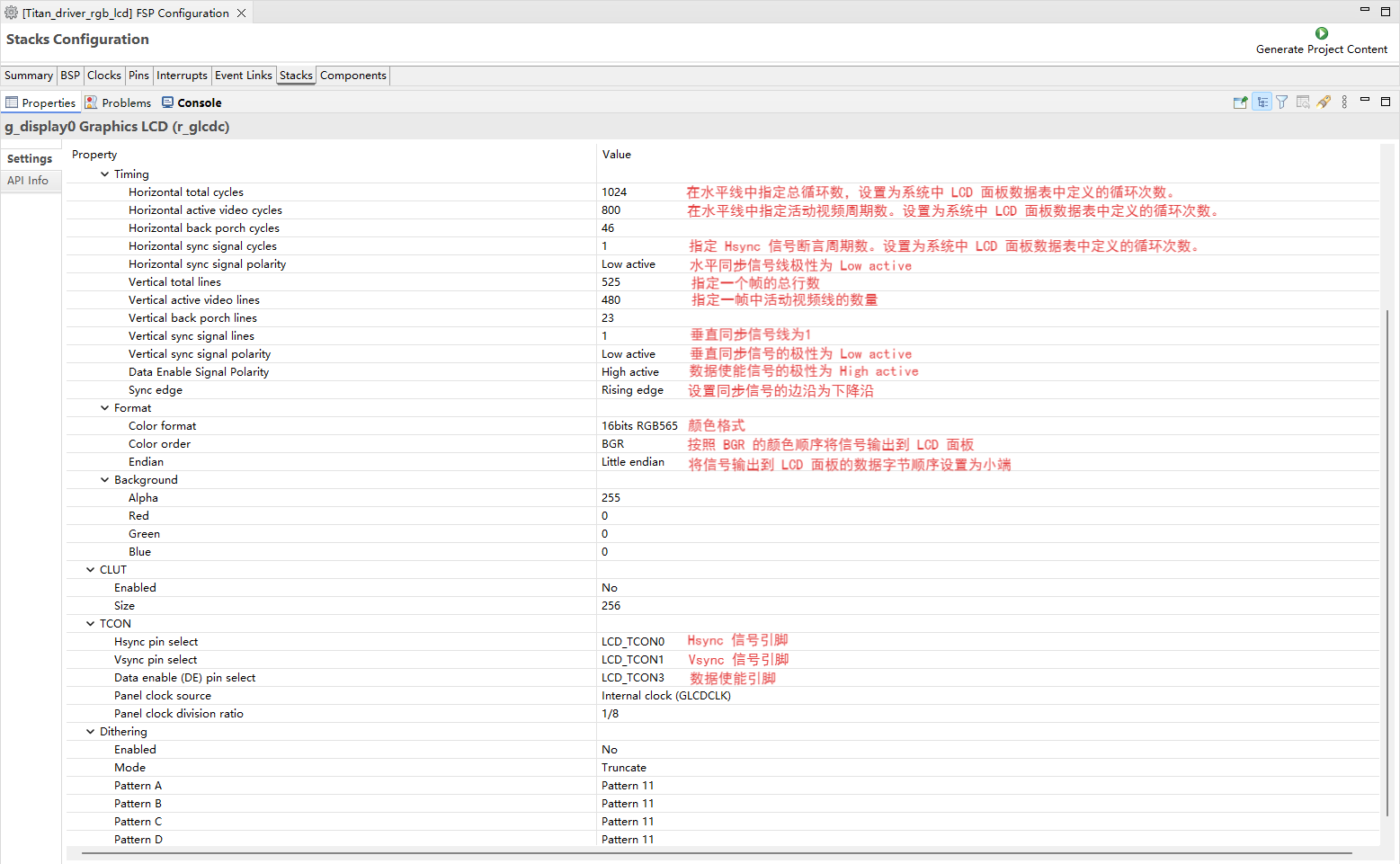

Configure output parameters, CLUT, TCON.

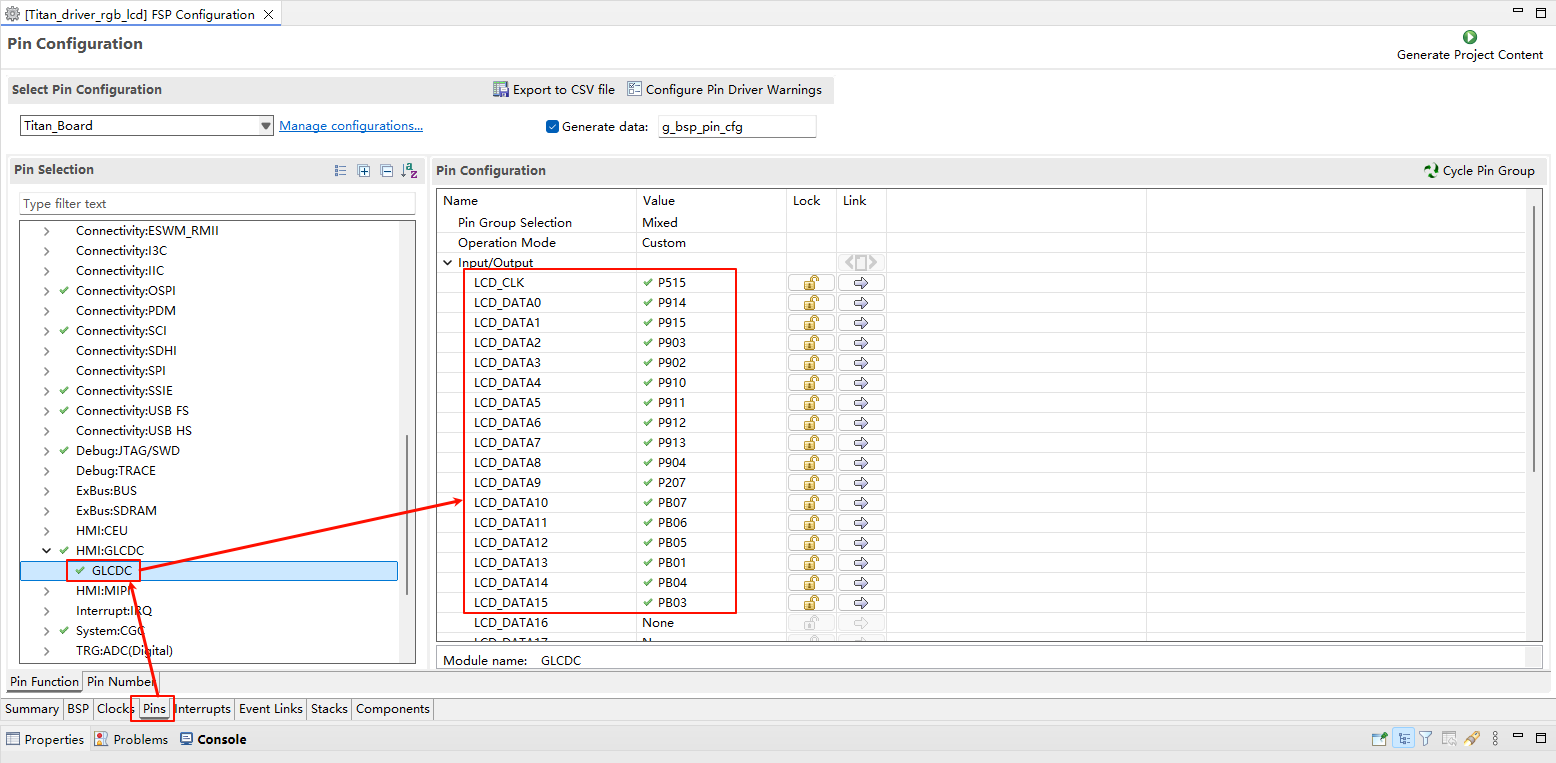

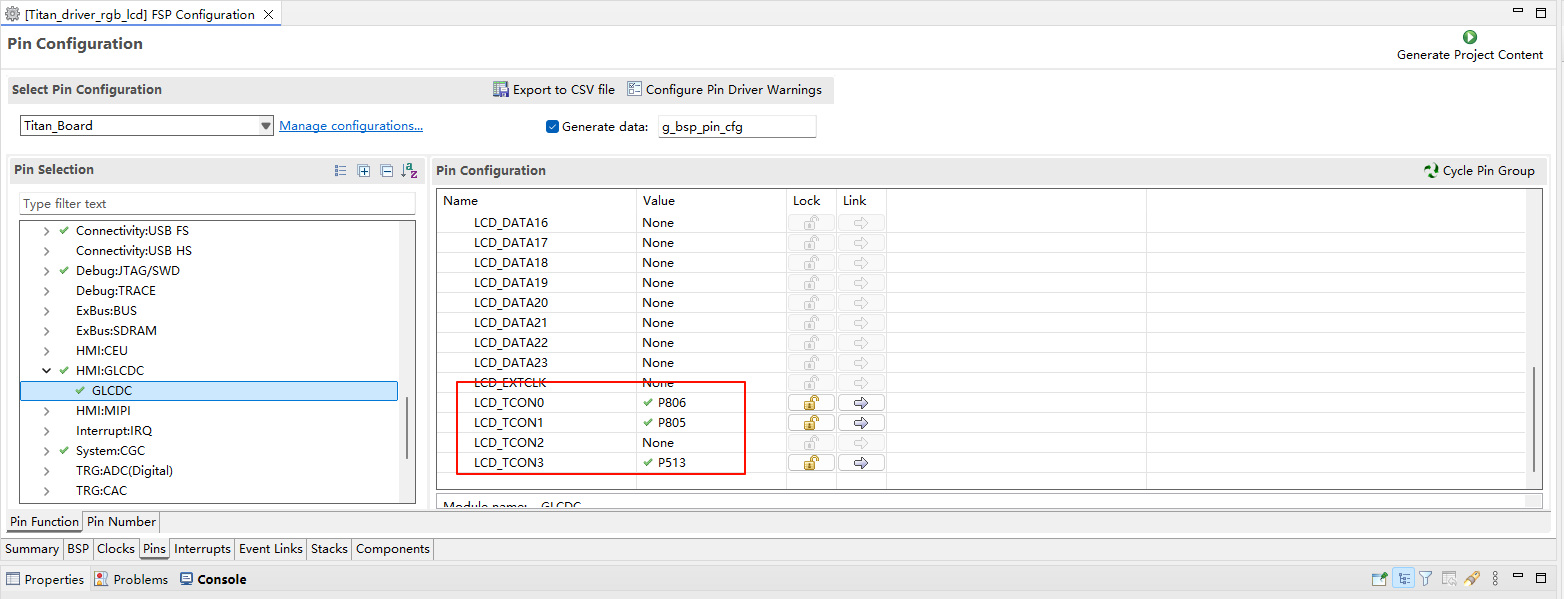

Configure GLCDC pins:

LCD Backlight Configuration

Create a r_gpt stack:

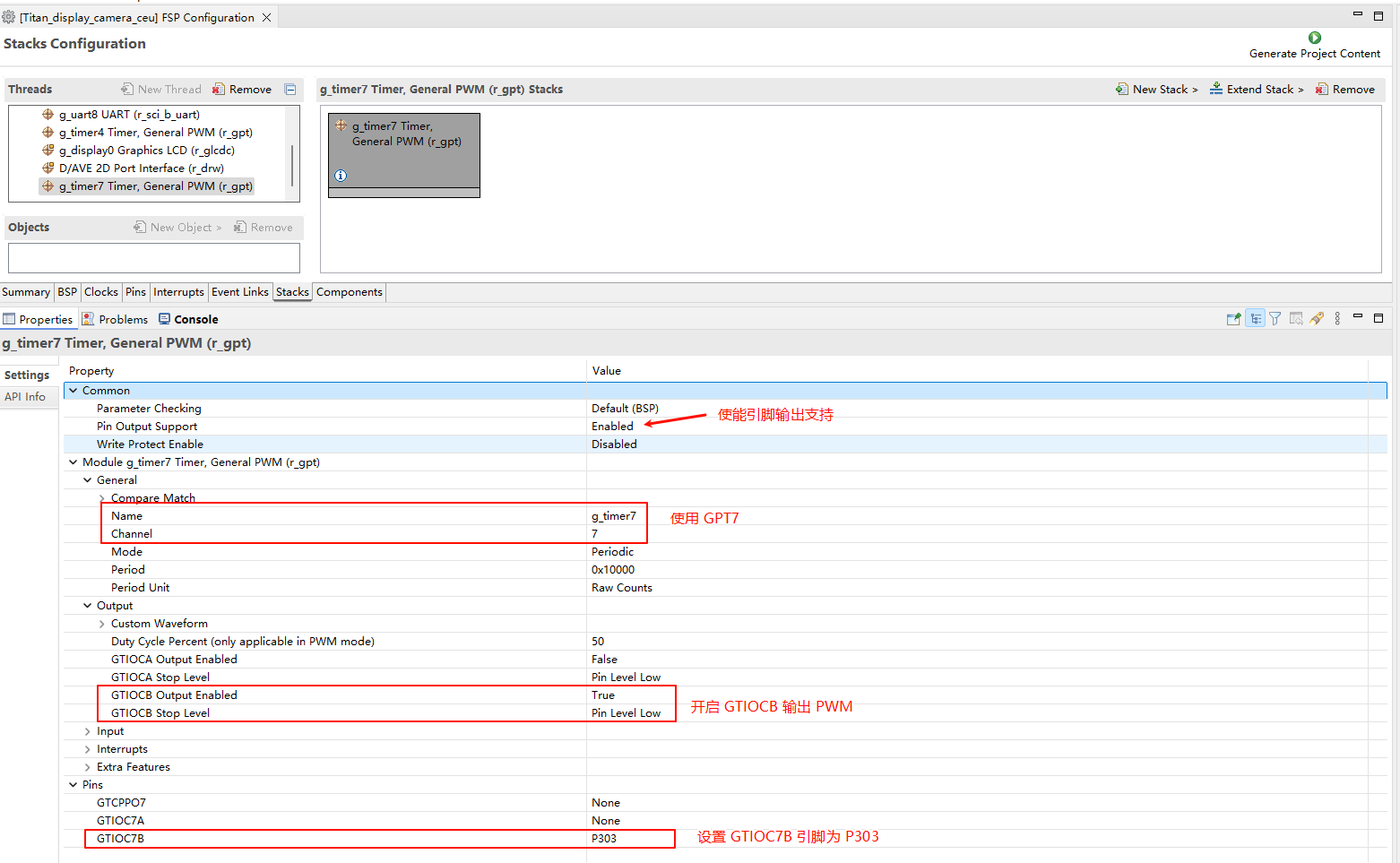

Configure backlight PWM output:

NPU Configuration

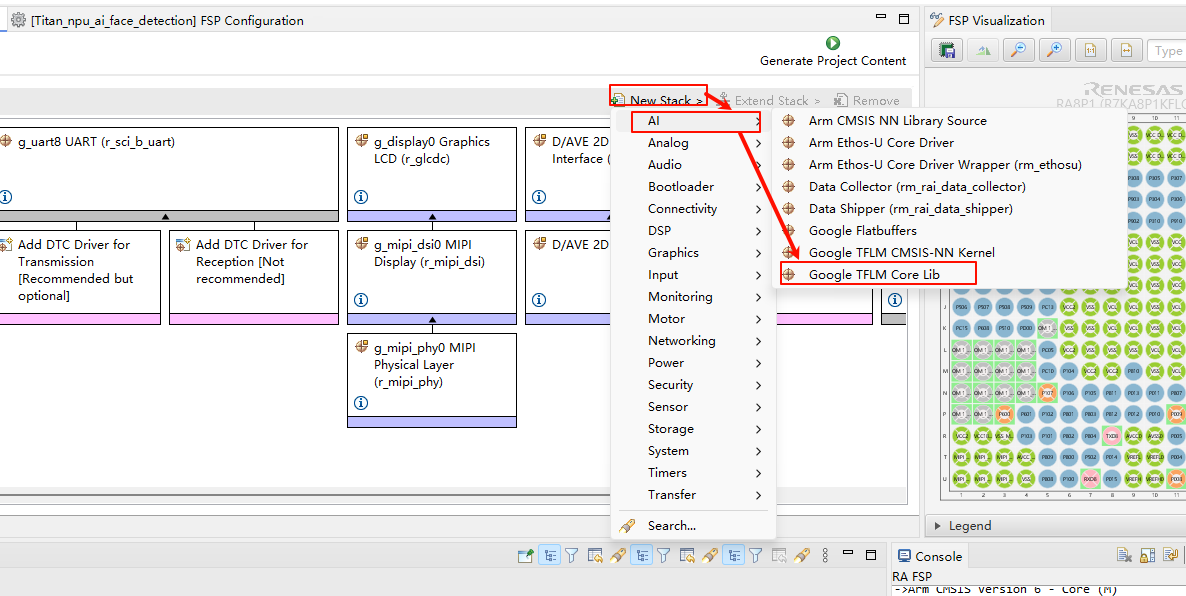

Create Google TFLM Core Lib stack:

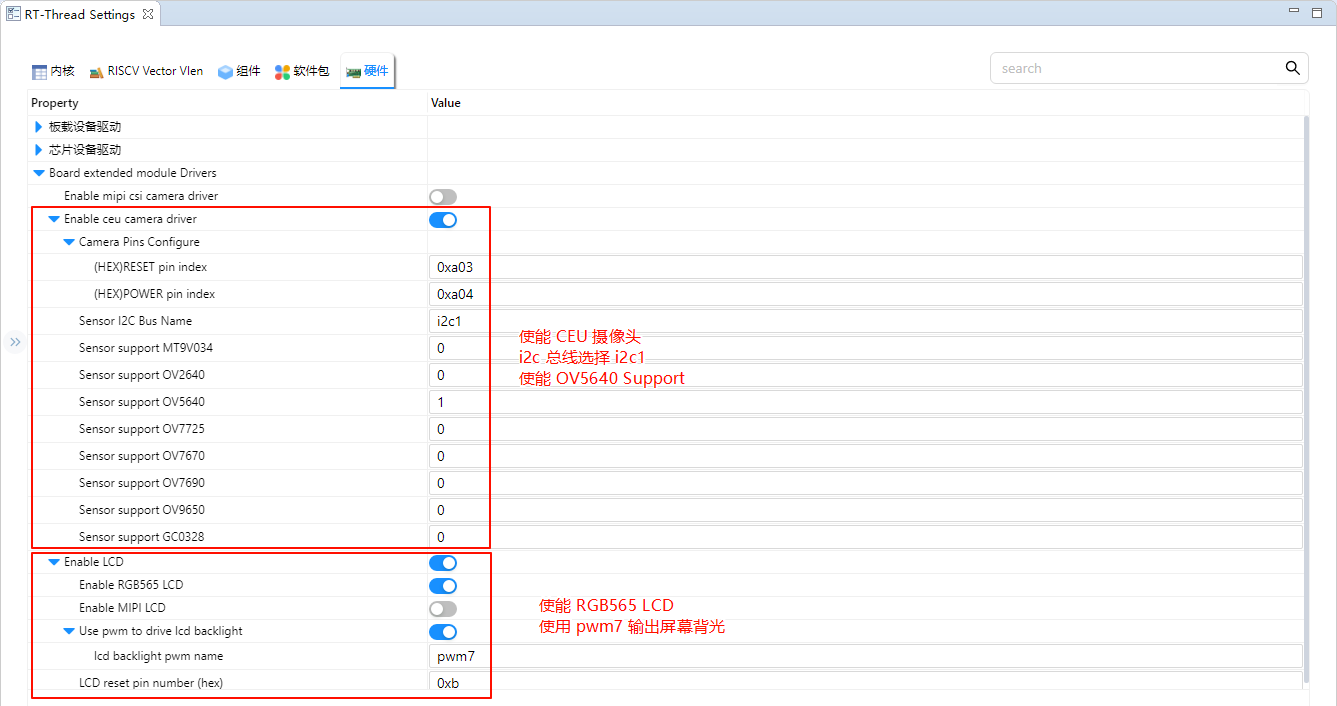

RT-Thread Settings Configuration

Enable the CUE camera, using the i2c1 and ov5640 cameras; Enable RGB565 LCD and use pwm7 output backlight.

Build & Download

RT-Thread Studio: In RT-Thread Studio’s package manager, download the Titan Board resource package, create a new project, and compile it.

After compilation, connect the development board’s USB-DBG interface to the PC and download the firmware to the development board.

Run Effect

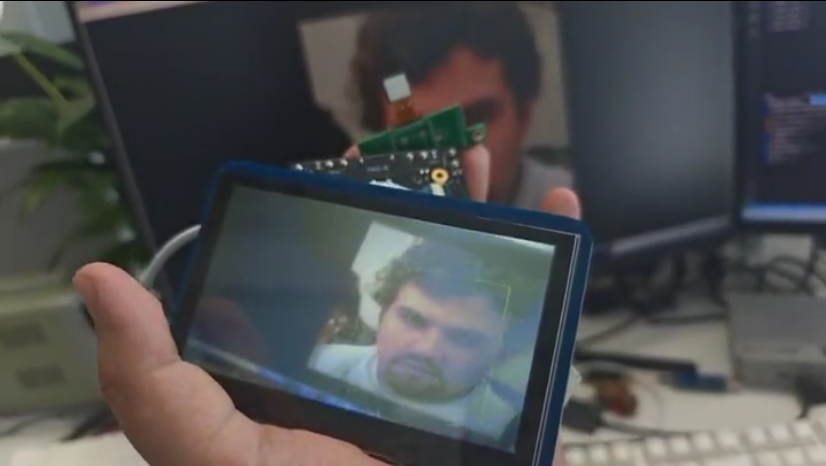

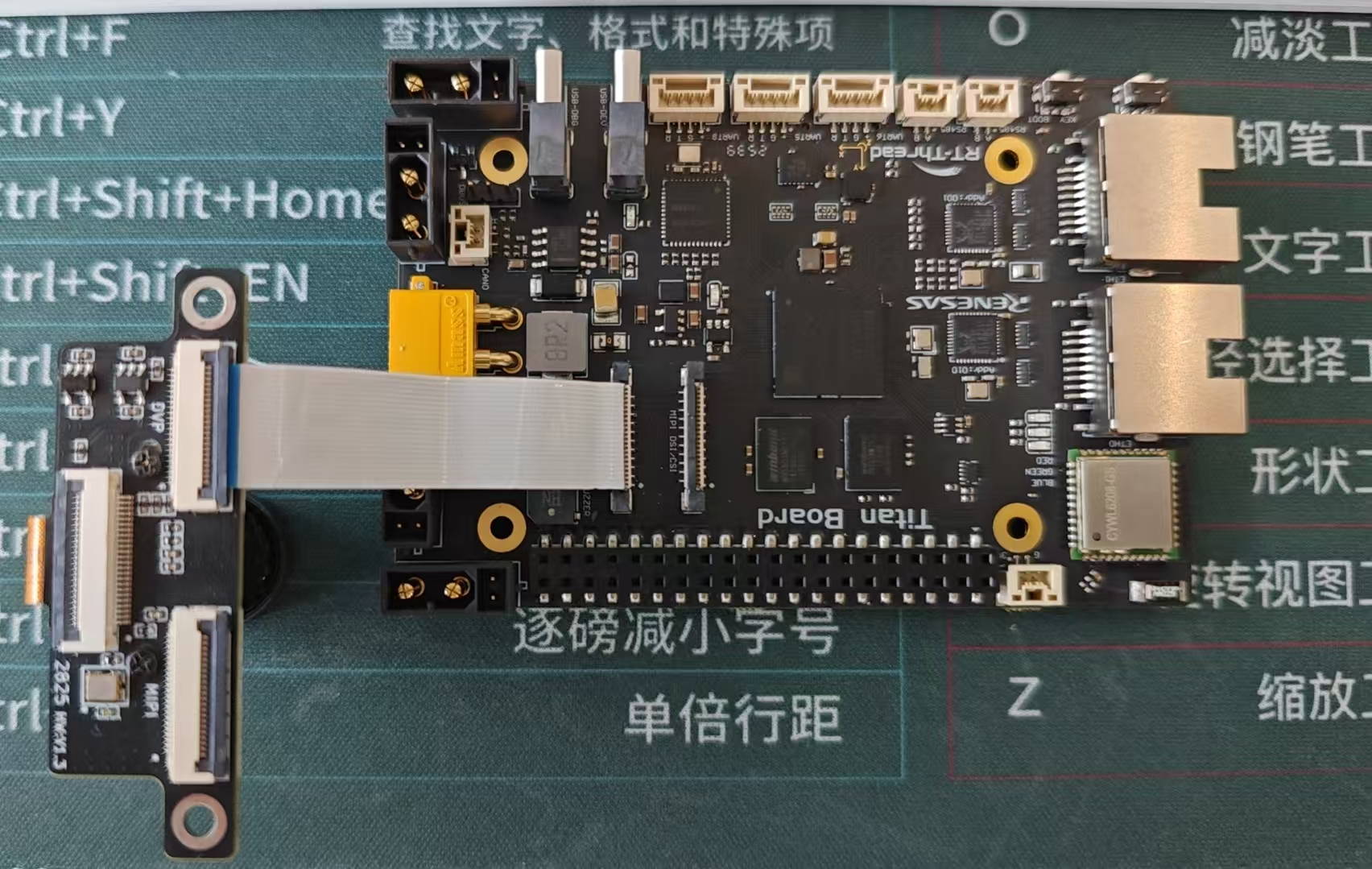

After resetting the Titan Board, prepare a face picture and place it in front of the camera. At this time, observe the LCD screen and you can see that the face is framed by a green rectangle.
