Netutils Usage Instructions

English | Chinese

Instruction

netutils is a package that contains many simple and easy to use network tools. Using this package, developers can bring a lot of convenience when debugging network functions. When you need to use some network debugging gadgets, all you need is the netutils package, the Swiss Army knife of network functionality debugging.

This routine shows how to use the various features of the netutils package on the Titan Board development board.

Hardware Description

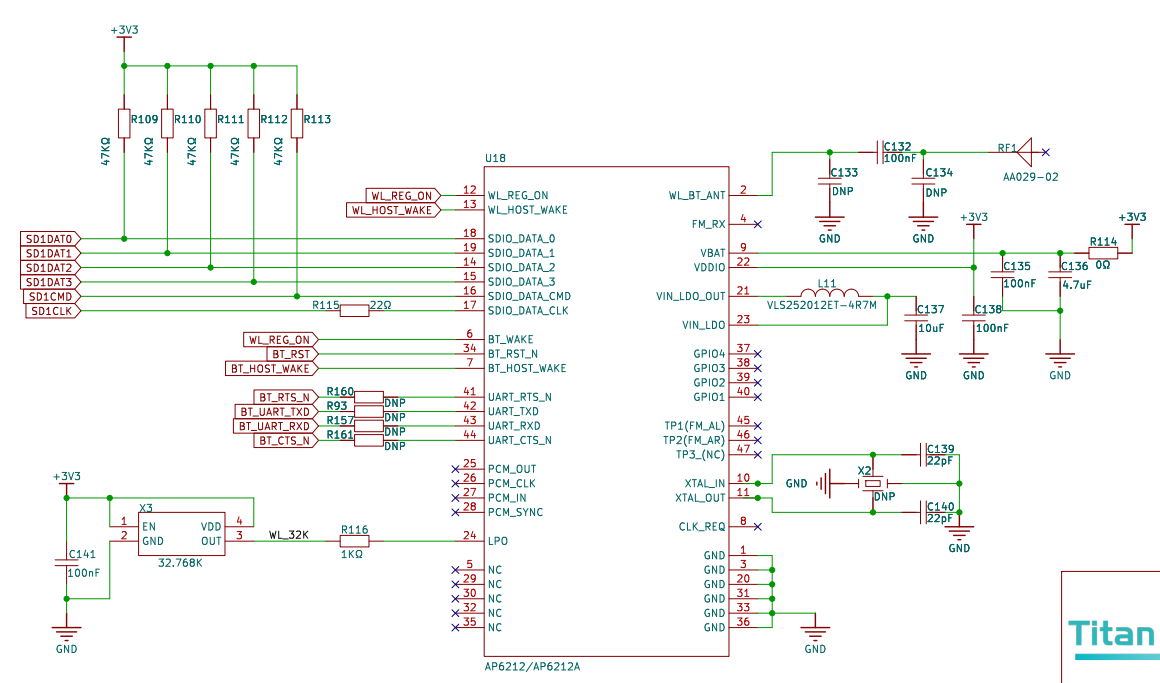

This routine needs to rely on the WiFi module on the Titan Board to complete the network communication, so please ensure that the WiFi module on the hardware platform can work properly.

image-20251015143654484

FSP Configuration

  • First you need to configure Flash. See the README.md in the Titan_component_flash_fs project for the Flash configuration.

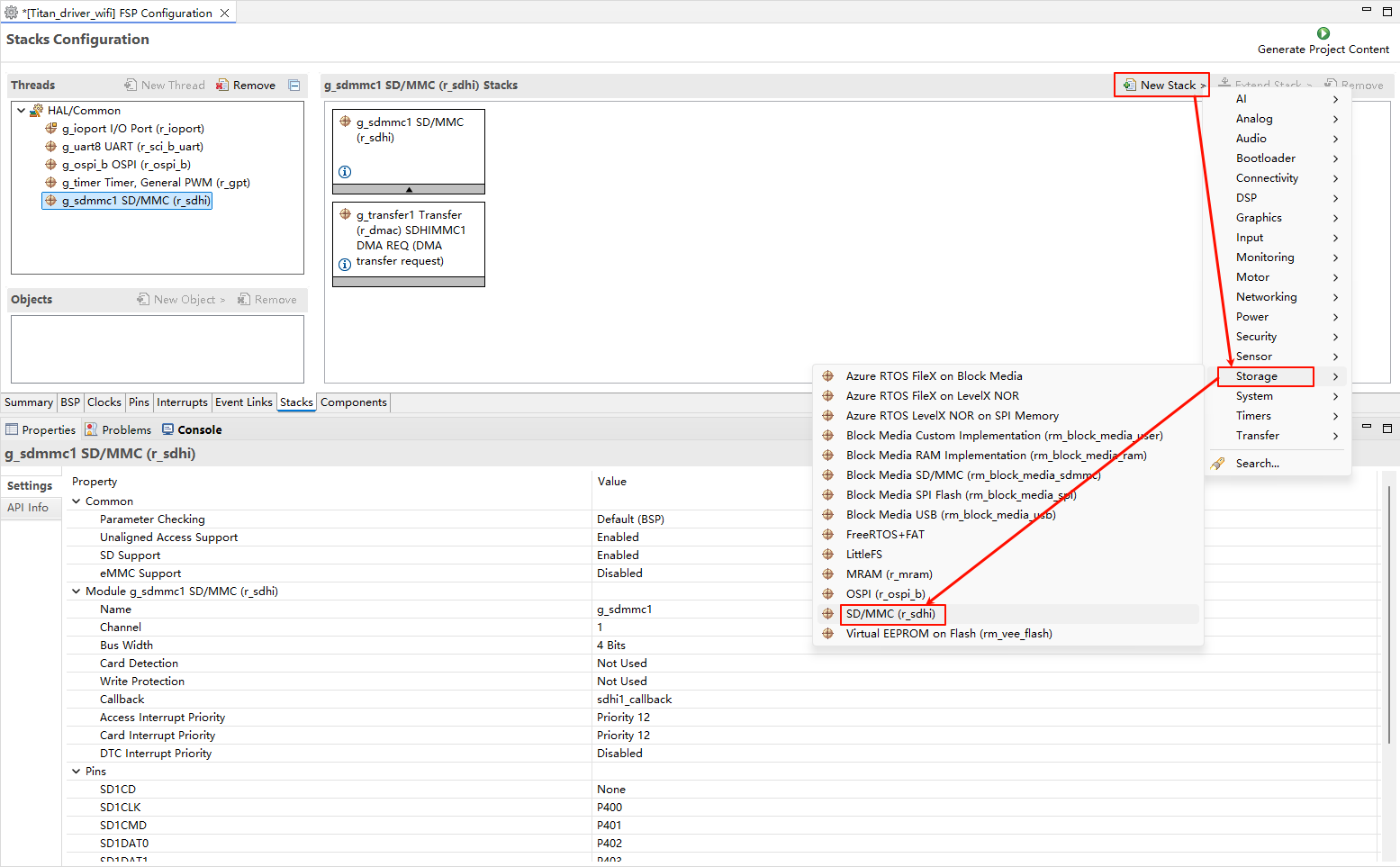

  • Next, configure SDHI1 and create a r_sdhi stack:

image-20250814182233963

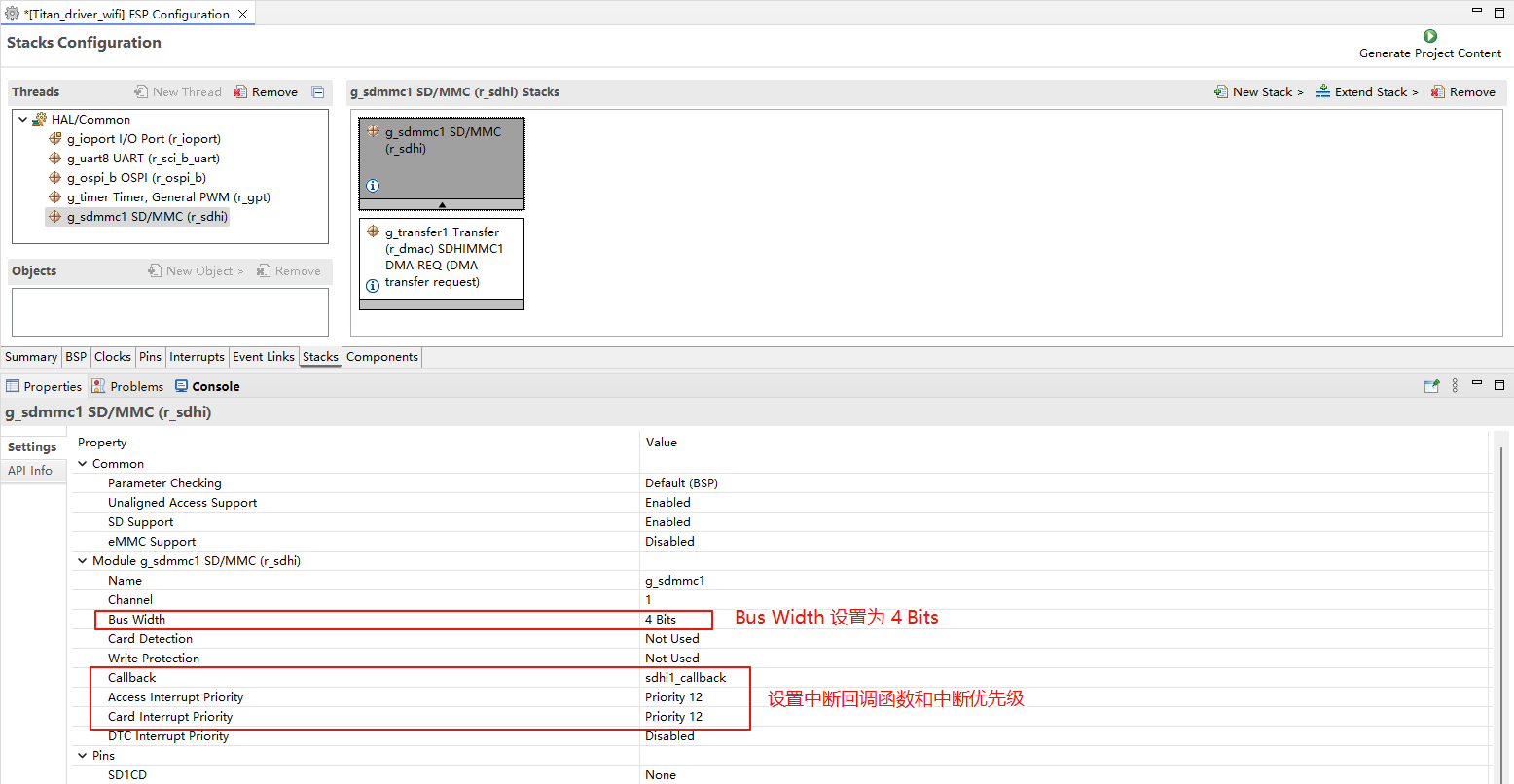

  • Configure SDHI1 stack:

image-20250814182438095

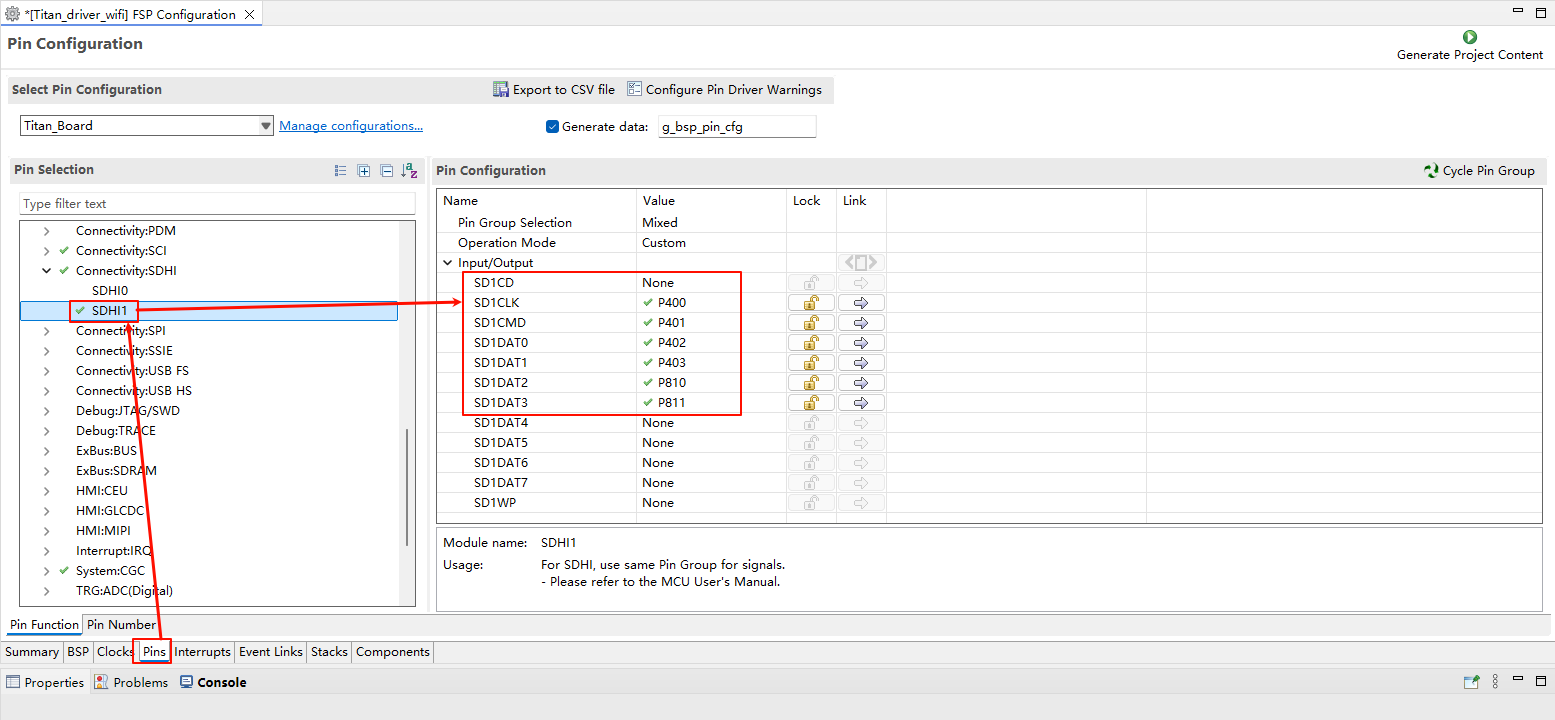

  • Configure SDHI1 pins:

image-20250814182521412

RT-Thread Settings Configuration

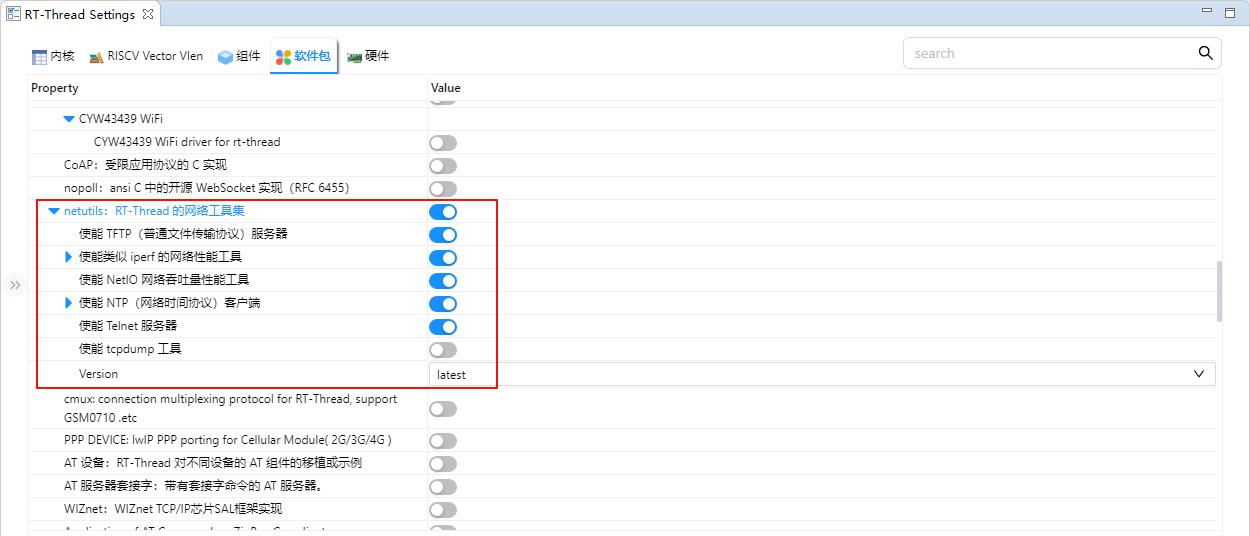

  • Add the netutils package to enable the web tools you want to use.

image-20250901153436524

Software Description

The source code for this routine is located at /project/Titan_component_netutils.

Description of netutils package file structure

Here is a breakdown and summary of the RT-Thread netutils package’s functionality:

Name

Classification

Function Introduction

Ping

Debug tests

Using the “ping” command can check whether the network is connected, can be a good help us to analyze and determine the network failure

NTP

Time synchronization

Network time protocol

TFTP

File transfer

TFTP is a simple protocol for transferring files that is even lighter than FTP

Iperf

Performance tests

Maximum TCP and UDP bandwidth performance is tested and bandwidth, delay jitter and packet loss can be reported

NetIO

Performance tests

A tool for testing the throughput of a network

Telnet

Remote access

You can remotely log into the Finsh/MSH Shell of RT-Thread

tcpdump

Network debugging

Tcpdump is a network packet capture tool for RT-Thread based on lwIP

The file structure of the netutils software package is as follows:

netutils 		// netutils folder
├── iperf 		// iperf Network Performance Test
├── netio 		// Netio Network Traffic Measurement Test
├── ntp 		// NTP Time Synchronization Function
├── ping 		// Ping Function
├── tcpdump 	// Network Capture Tools
├── telnet 		// Telnet server
├── tftp 		// TFTP Function
├── tools 		// Network Testing Tools

Compilation & Download

  • RT-Thread Studio: In RT-Thread Studio’s package manager, download the Titan Board resource package, create a new project, and compile it.

After compilation, connect the development board’sUSB-DBG interface to the PC and download the firmware to the development board.

Run Effect

Mount the file system

Since the TFTP function requires the support of the file system when transferring files within the system, the system will initialize the file system-related functions during its initialization process. The normal initialization prompt message for the file system is as follows:

 \ | /
- RT -     Thread Operating System
 / | \     5.1.0 build Sep  1 2025 14:02:13
 2006 - 2024 Copyright by RT-Thread team
lwIP-2.0.3 initialized!
[I/sal.skt] Socket Abstraction Layer initialize success.
Hello RT-Thread!
===========================================================
This example project is an driver wifi routine(hyperflash)!
===========================================================
[I/drv.ospi_flash] Get flash id: 0x021a5bef
[I/drv.ospi_flash] OSPI flash initialized successfully
[D/FAL] Flash device |               ospi_flash | addr: 0x90000000 | len: 0x04000000 | blk_size: 0x00001000 |initialized finish.
[I/FAL] ==================== FAL partition table ====================
[I/FAL] | name         | flash_dev  |   offset   |    length  |
[I/FAL] -------------------------------------------------------------
[I/FAL] | whd_firmware | ospi_flash | 0x00000000 | 0x00080000 |
[I/FAL] | whd_clm      | ospi_flash | 0x00080000 | 0x00080000 |
[I/FAL] | download     | ospi_flash | 0x00100000 | 0x00200000 |
[I/FAL] | easyflash    | ospi_flash | 0x00300000 | 0x00100000 |
[I/FAL] | filesystem   | ospi_flash | 0x00400000 | 0x00c00000 |
[I/FAL] =============================================================
[I/FAL] RT-Thread Flash Abstraction Layer initialize success.
[I/FAL] The FAL MTD NOR device (filesystem) created successfully
[I/wifi] Filesystem initialized!
msh />WLAN MAC Address : 2C:B0:FD:A2:2D:60
WLAN Firmware    : wl0: Mar 28 2021 22:55:55 version 7.45.98.117 (dc5d9c4 CY) FWID 01-d36e8386
WLAN CLM         : API: 12.2 Data: 9.10.39 Compiler: 1.29.4 ClmImport: 1.36.3 Creation: 2021-03-28 22:47:33
WHD VERSION      : 3.1.0.23284 : v3.1.0 : GCC 13.2 : 2024-03-21 22:57:11 +0800
[I/WLAN.dev] wlan init success
[I/WLAN.lwip] eth device init ok name:w0
[I/WLAN.dev] wlan init success
[I/WLAN.lwip] eth device init ok name:w1

Connect to Wi-Fi

After the program runs, it will enter the MSH command line and wait for the user to configure the device to connect to the network. Use the MSH command “wifi join ssid password” to configure the network, as shown below:

msh />wifi join ssid_test password
join ssid:ssid_test
[I/WLAN.mgnt] wifi connect success ssid:ssid_test
msh />[I/WLAN.lwip] Got IP address : 192.168.173.8

Ping tool

Ping is a network diagnostic tool used to test whether data packets can reach a specific host via the IP protocol. It estimates the packet loss rate (packet loss ratio) between the host and the device and the round-trip time of the packets.

  • Ping domain

msh />ping www.rt-thread.org
ping: not found specified netif, using default netdev w0.
60 bytes from 120.222.223.251 icmp_seq=1 ttl=48 time=76 ms
60 bytes from 120.222.223.251 icmp_seq=2 ttl=48 time=54 ms
60 bytes from 120.222.223.251 icmp_seq=3 ttl=48 time=74 ms
60 bytes from 120.222.223.251 icmp_seq=4 ttl=48 time=74 ms

--- 120.222.223.251 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss
minimum = 54ms, maximum = 76ms, average = 69ms
msh />

  • Ping IP

msh />ping 192.168.173.247
ping: not found specified netif, using default netdev w0.
60 bytes from 192.168.173.247 icmp_seq=1 ttl=64 time=42 ms
60 bytes from 192.168.173.247 icmp_seq=2 ttl=64 time=44 ms
60 bytes from 192.168.173.247 icmp_seq=3 ttl=64 time=24 ms
60 bytes from 192.168.173.247 icmp_seq=4 ttl=64 time=24 ms

--- 192.168.173.247 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss
minimum = 24ms, maximum = 44ms, average = 33ms
msh />

NTP tool

NTP is the Network Time Protocol, which is a protocol used to synchronize the times of various computers in a network. The netutils software package implements the NTP client. After connecting to the network, one can obtain the current UTC time and update it to the RTC.

The effect of the MSH command is as follows:

msh />ntp_sync
[I/ntp] Get local time from NTP server: Mon Sep  1 15:15:35 2025
msh />

TFTP tool

TFTP (Trivial File Transfer Protocol, Simple File Transfer Protocol) is one of the protocols within the TCP/IP suite, used for transferring files between a client and a server. A simple protocol for file transfer between the server and the client, providing a straightforward and low-cost file transfer service. The port number is 69, which is different from the traditional one. The FTP protocol is much more lightweight and is suitable for use in small embedded products. The preparation for the TFTP tool requires the following two steps:

  • The installation file for the TFTP client is located at packages/netutils/tools/Tftpd64-4.60-setup.exe. Before using TFTP, please install this software first.

  • To start the TFTP server before transferring files, you need to use the Finsh/MSH commands on RT-Thread to initiate the TFTP server. The general effect is as follows:

msh />tftp -s
tftp server start!
msh />

  • Connect to the RT-Thread operating system and send files

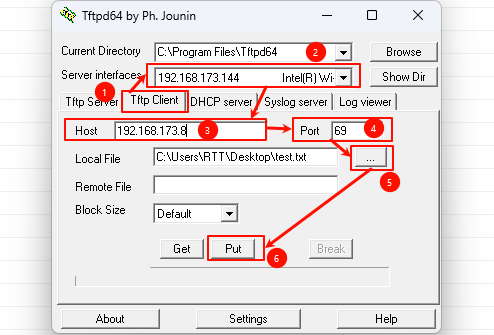

  1. Open the newly installed Tftpd64 software and follow the steps below to configure it:选择 Tftp Client ；

  2. In the “Server interfaces” dropdown box, make sure to select the network card that is in the same network segment as RT-Thread.

  3. Enter the IP address of the TFTP server. You can view it using the ifconfig command in the MSH of RT-Thread.

  4. Enter the port number of the TFTP server. The default is 69.

  5. Select the file to be sent. “Remote File” is the path (including the file name) where the file is saved on the server side. The options support both relative and absolute paths. Since RT-Thread by default enables the DFS_USING_WORKDIR option, at this time the relative path is based on the current directory entered by MSH. Therefore, when using a relative path, be sure to switch the directory in advance.

  6. Just click the “Put” button.

Note: If DFS_USING_WORKDIR is not enabled and the Remote File is empty, the file will be saved in the root directory.

image-20250901150824232

View the files sent by PC in MSH:

msh />ls
Directory /:
test.txt            16
msh />cat test.txt
Hello RT-Thread!
msh />

  • Retrieve the file from RT-Thread

First, create a text file in the root directory and enter the content “Hello!” 。

msh />echo "Hello!" test1.txt
msh />cat test1.txt
Hello!
msh />

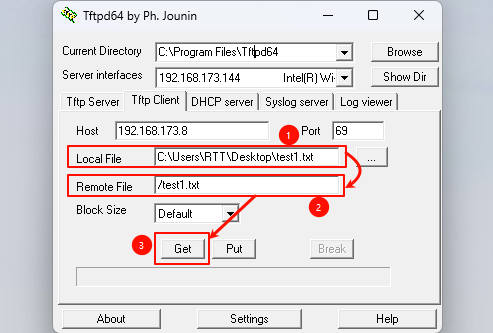

  1. In the Tftpd64 software, enter the path (including the file name) of the file to be received and saved.

  2. Remote File is the file path (including the file name) that the server is waiting to receive back. The option supports both relative and absolute paths. Since RT-Thread by default enables the DFS_USING_WORKDIR option, at this time, the relative path is based on the current directory entered by Finsh/MSH. Therefore, when using a relative path, be sure to switch the directory in advance.

  3. Just click the “Get” button. As shown below, save “/test1.txt” to the local disk. Here, an absolute path is used.

image-20250901151337063

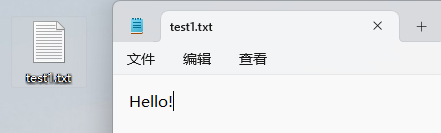

The following picture is the file obtained from RT-Thread:

image-20250901151210232

Telnet tool

Telnet is a TCP-based remote terminal protocol used for remotely logging into the command line interface of devices over a network. Through Telnet, one can remotely access the command line of the development board from a PC, enabling debugging, monitoring, and control. To use the Finsh/MSH commands to start the telnet service on RT-Thread, the general effect is as follows:

msh />telnet_server
Telnet server start successfully
msh />telnet: waiting for connection

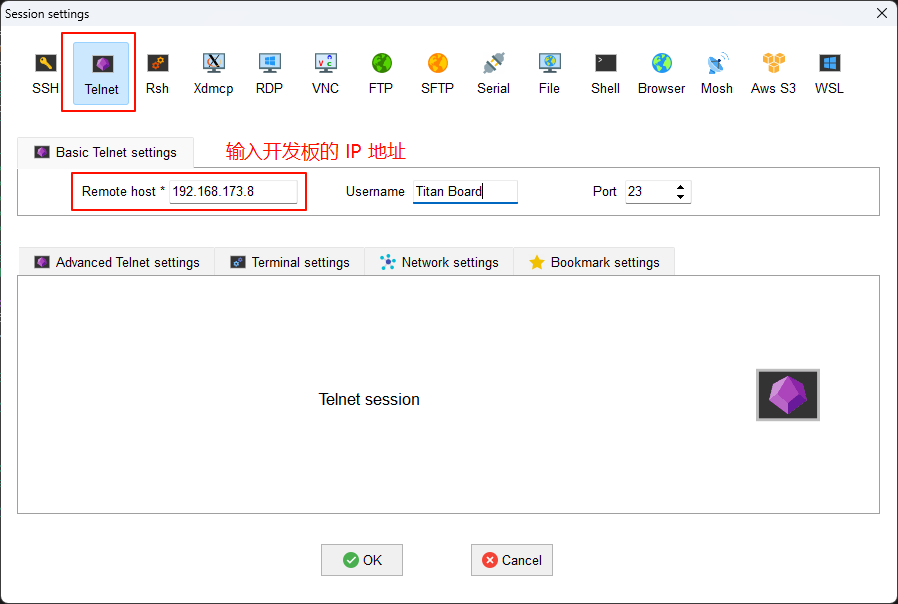

Next, use the remote connection tool to connect to the development board.

image-20250901155545520

After the connection is successful, you can remotely control the development board.

 \ | /
- RT -     Thread Operating System
 / | \     5.1.0 build Sep  1 2025 14:02:13
 2006 - 2024 Copyright by RT-Thread team
msh />
msh />
msh />list device
device               type         ref count
------------ -------------------- ----------
telnet       Character Device     2
w1           Network Interface    1
w0           Network Interface    1
wlan0        Network Interface    1
wlan1        Network Interface    1
filesystem   MTD Device           1
rtc          RTC                  0
uart8        Character Device     0
pin          Pin Device           0
msh />

More online tools

In addition to the commonly used network tools mentioned above, the netutils software package also provides some useful network tools for development and debugging, such as the NetIO tool, Iperf tool and tcpdump tool. The usage methods of these tools can be referred to the instruction files in the software package’s function directory.
