Introduction

This example demonstrates how to use OSPI Flash on the Titan Board to mount a LittleFS file system. With this example, you can read and write files on external flash, achieving persistent data storage. The program is based on the RT-Thread file system component and the OSPI driver.

RA8 Series OSPI Features

The RA8 series MCU provides an Octal SPI / Quad SPI interface (OSPI), specifically designed for high-speed external flash access. Its main features are as follows:

1. Multi-line High-Speed Access

• Supports 1–8 data line modes:

  • 1-line SPI (standard SPI)

  • 4-line QSPI (Quad SPI)

  • 8-line OSPI (Octal SPI)

• Maximum clock frequency up to 100 MHz (depending on MCU and Flash device), suitable for high-capacity, high-speed read/write operations.

• Supports continuous read mode, reducing the overhead of issuing commands for each read.

2. Flexible Flash Operation Modes

• Supports Page Program, typically 256 bytes per page, with block management for cross-page writes.

• Supports Block Erase, typical block sizes of 4KB or 64KB, allowing selective erasure to improve write efficiency.

• Supports random read and continuous read operations.

• Configurable read/write commands, dummy cycles, and data line width to match different Flash devices.

• Supports high-speed modes (DDR / Quad / Octal I/O) to improve transfer efficiency.

3. Interrupt and DMA Support

• The OSPI peripheral can notify transfer completion via interrupts.

• Supports DMA mode to reduce CPU load.

• Can be integrated with RT-Thread as a block device (blkdev), facilitating file system mounting or data caching.

4. RT-Thread Driver Integration

• The RA8 OSPI driver can be registered as an RT-Thread block device.

• LittleFS or FatFS can be mounted on this block device for file system operations.

• Supports thread-safe APIs, allowing multi-threaded access to Flash.

• Configurable page cache size and block erase/write strategy to optimize LittleFS performance.

5. High Reliability Features

• Supports write protection and software lock.

• Supports error detection, such as command errors or data CRC verification.

• Ensures safe file system mounting after power loss or system reset.

Abstraction Layer

• FAL (Flash Abstraction Layer) is an abstraction layer for managing and operating Flash devices and Flash-based partitions. It provides a unified API for upper-layer Flash and partition operations (as shown in the framework diagram below), with the following features:

  • Supports a statically configurable partition table, which can be associated with multiple Flash devices.

  • The partition table supports automatic loading, avoiding the issue of the partition table being repeatedly defined in multi-firmware projects.

  • Lightweight code with no dependency on an operating system, allowing it to run on bare-metal platforms, such as bootloaders with limited resources.

  • A unified operation interface ensures the reusability of underlying Flash drivers for components that rely on Flash, such as file systems, OTA, and NVM (e.g., EasyFlash).

  • Built-in Finsh/MSH-based test commands, enabling developers to read, write, and erase Flash or partitions via shell commands with byte-level addressing, which facilitates debugging and testing.

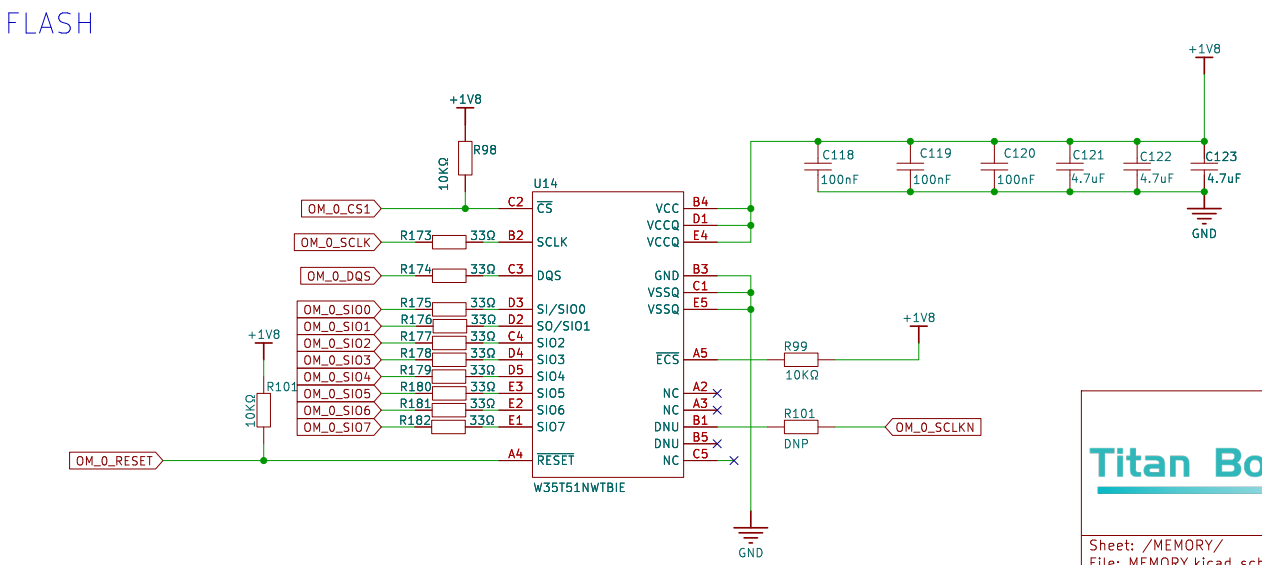

Hardware Description

FSP Configuration

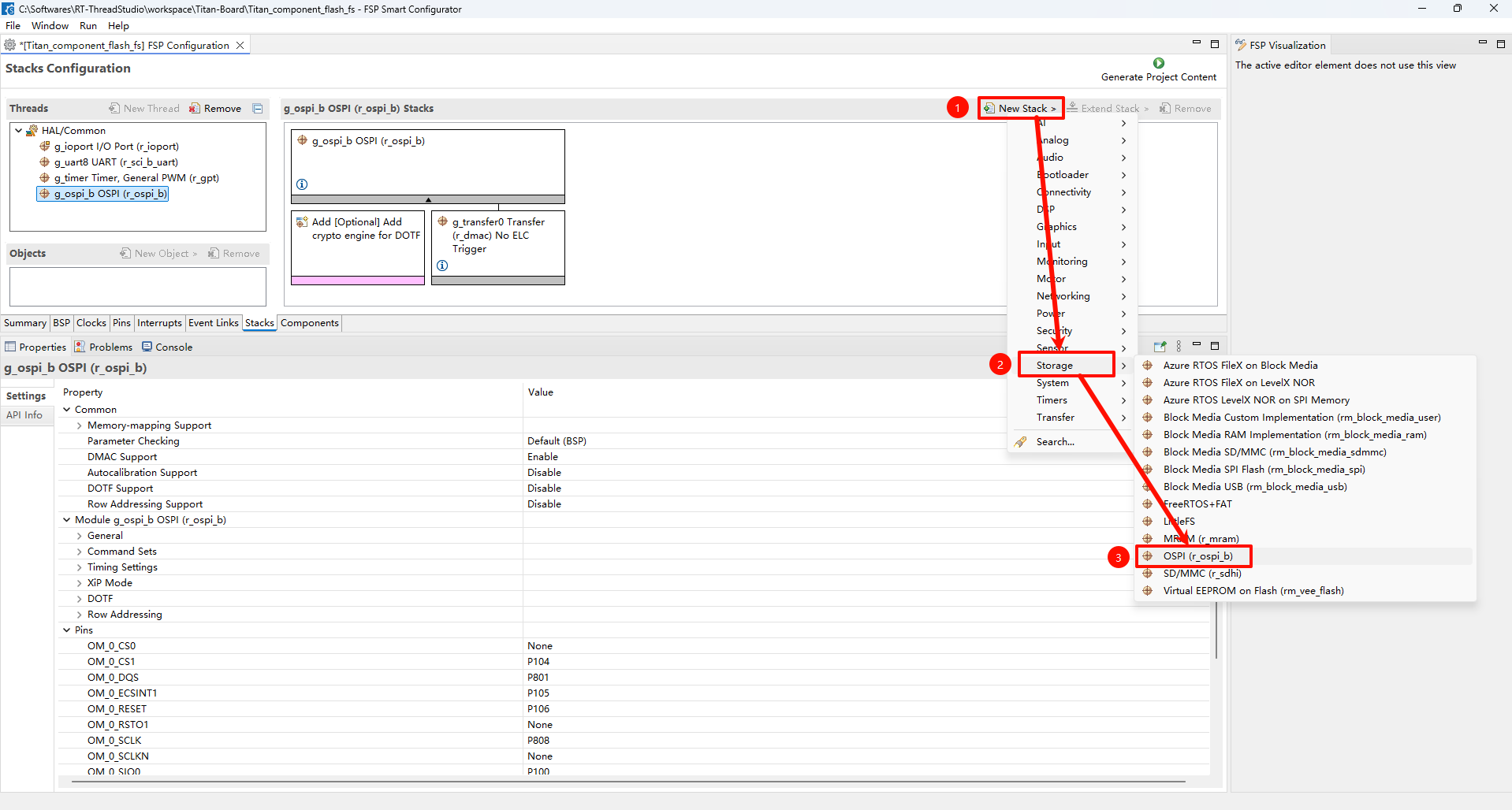

• Create a r_ospi_b stack:

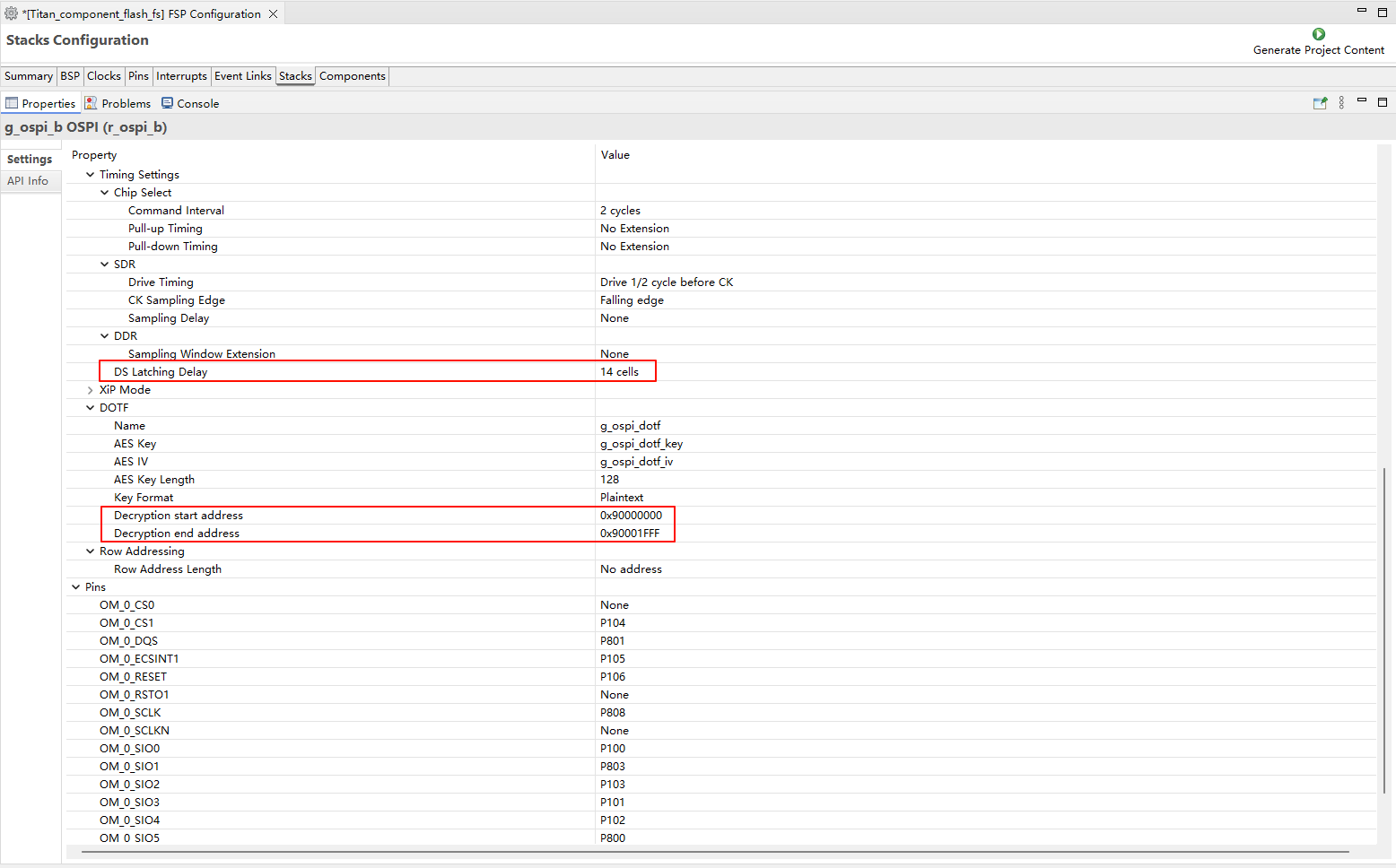

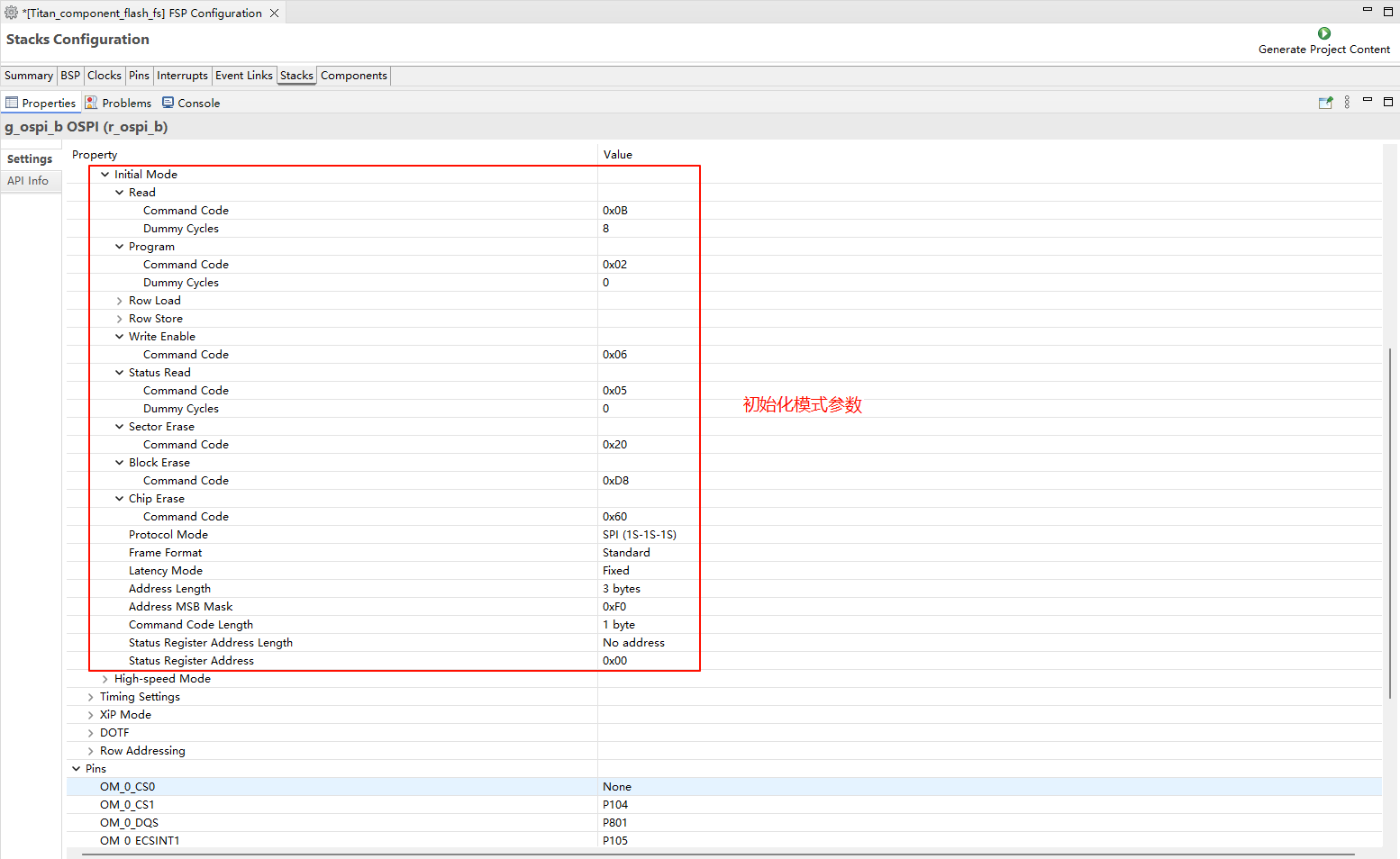

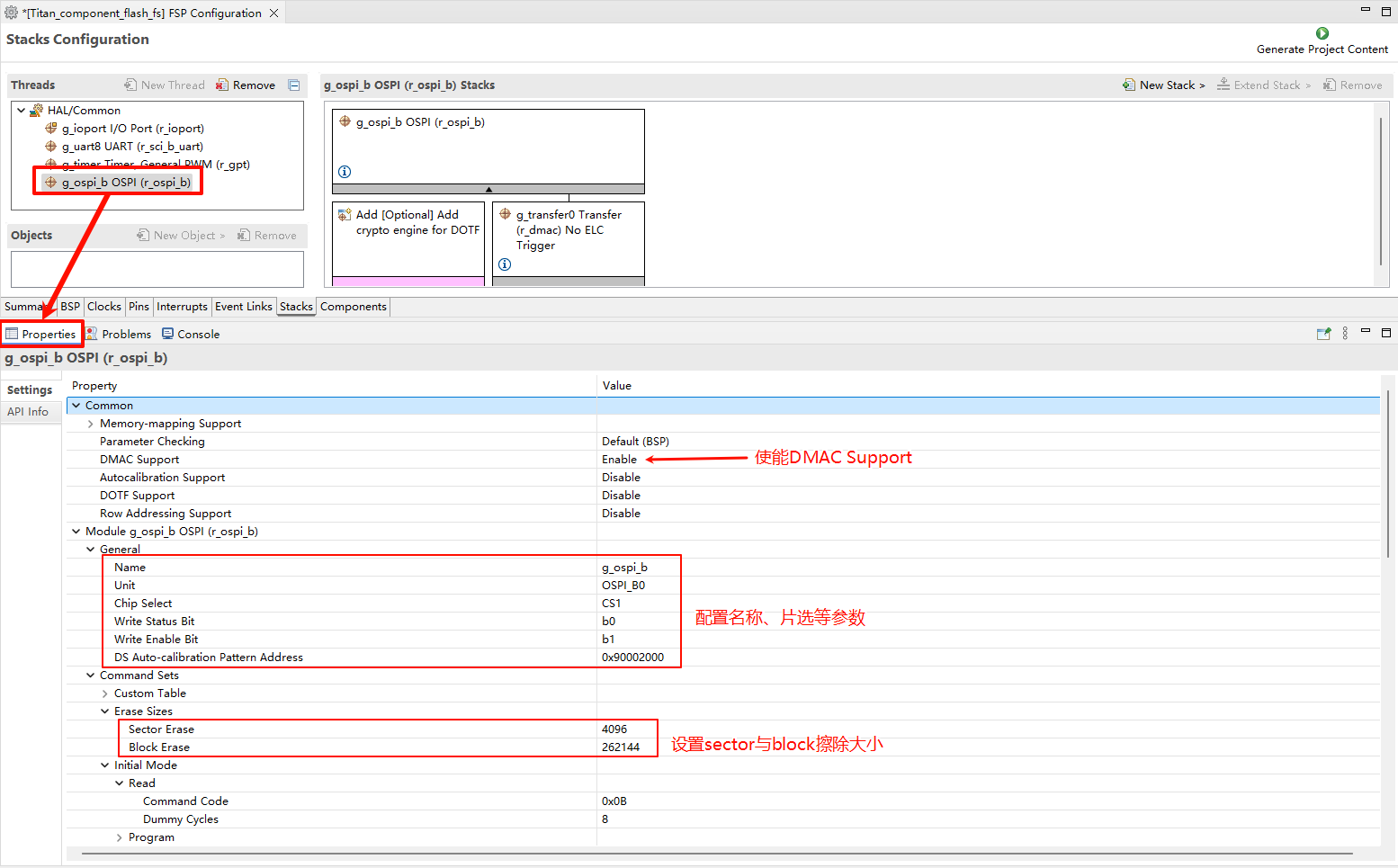

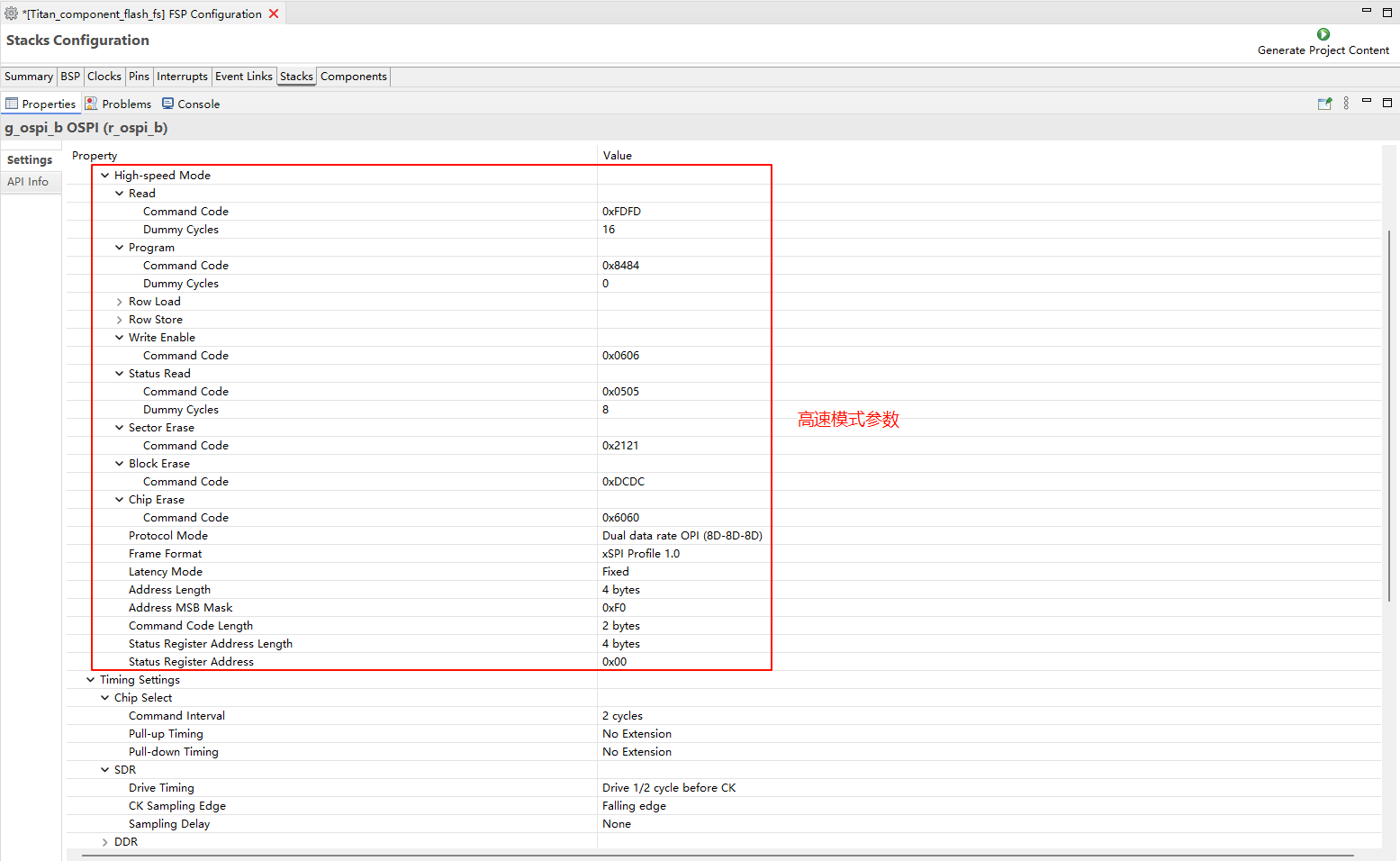

• Configure the r_ospi_b stack:

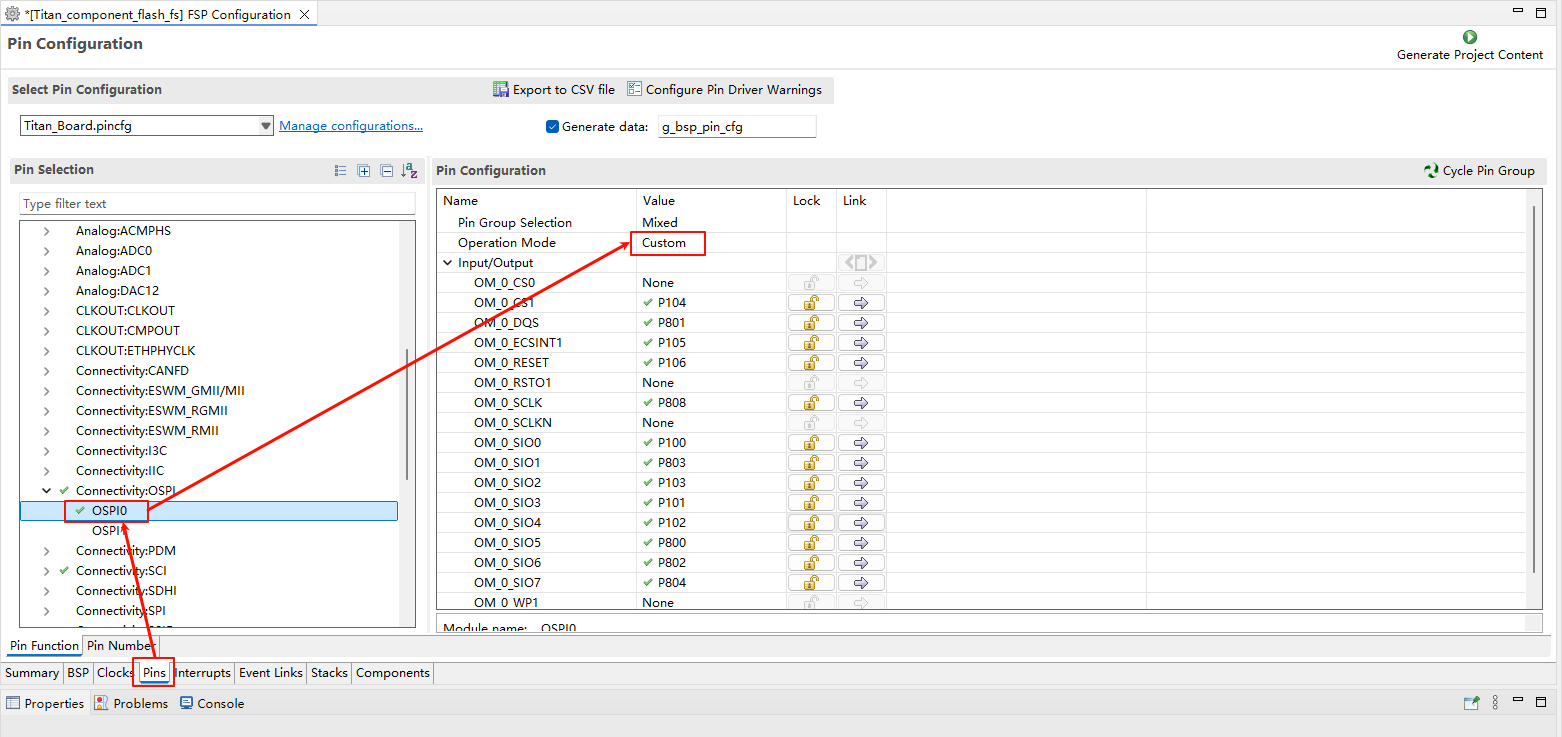

• Flash pin configuration:

RT-Thread Settings Configuration

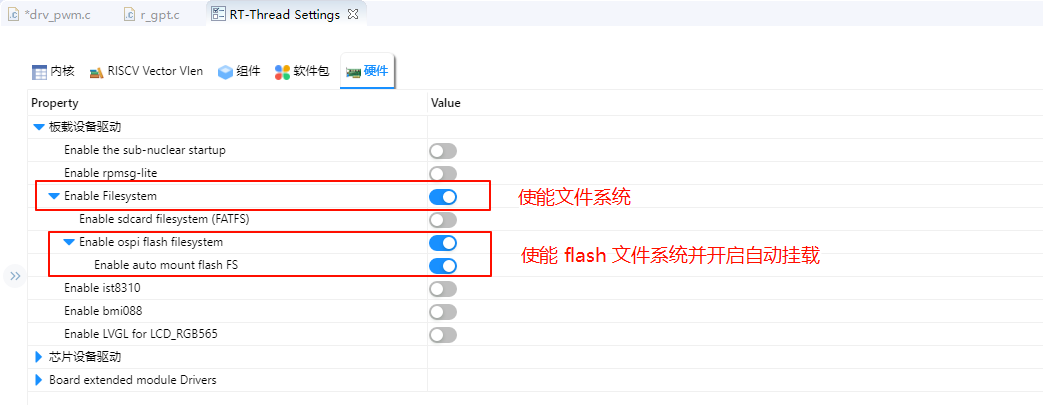

• Enable Flash filesystem in RT-Thread Settings.

Software Overview

The source code for file system initialization in this example is located at: ./board/ports/drv_filesystem.c 中：

#include <rtthread.h>

#if defined(BSP_USING_FILESYSTEM)
#include <dfs_romfs.h>
#include <dfs_fs.h>
#include <dfs_file.h>

#if DFS_FILESYSTEMS_MAX < 4
#error "Please define DFS_FILESYSTEMS_MAX more than 4"
#endif
#if DFS_FILESYSTEM_TYPES_MAX < 4
#error "Please define DFS_FILESYSTEM_TYPES_MAX more than 4"
#endif

#define DBG_TAG "app.filesystem"
#define DBG_LVL DBG_INFO
#include <rtdbg.h>

#ifdef BSP_USING_FS_AUTO_MOUNT
#ifdef BSP_USING_SDCARD_FATFS
static int onboard_sdcard_mount(void)
{
    if (dfs_mount("sd", "/sdcard", "elm", 0, 0) == RT_EOK)
    {
        LOG_I("SD card mount to '/sdcard'");
    }
    else
    {
        LOG_E("SD card mount to '/sdcard' failed!");
        rt_pin_write(0x000D, PIN_LOW);
    }

    return RT_EOK;
}
#endif /* BSP_USING_SDCARD_FATFS */
#endif /* BSP_USING_FS_AUTO_MOUNT */

#ifdef BSP_USING_FLASH_FS_AUTO_MOUNT
#ifdef BSP_USING_FLASH_FATFS
#define FS_PARTITION_NAME "filesystem"

static int onboard_fal_mount(void)
{
    /* init fal */
    extern int fal_init(void);
    extern struct rt_device* fal_mtd_nor_device_create(const char *parition_name);
    fal_init ();
    /* Create a block device on the ospi flash partition named "filesystem" */
    struct rt_device *mtd_dev = fal_mtd_nor_device_create (FS_PARTITION_NAME);
    if (mtd_dev == NULL)
    {
        LOG_E("Can't create a mtd device on '%s' partition.", FS_PARTITION_NAME);
        return -RT_ERROR;
    }
    else
    {
        LOG_D("Create a mtd device on the %s partition of flash successful.", FS_PARTITION_NAME);
    }

    /* Mount the filesystem on the ospi flash partition named "filesystem" */
    if (dfs_mount (FS_PARTITION_NAME, "/fal", "lfs", 0, 0) == 0)
    {
        LOG_I("Filesystem initialized!");
    }
    else
    {
        dfs_mkfs ("lfs", FS_PARTITION_NAME);
        if (dfs_mount ("filesystem", "/fal", "lfs", 0, 0) == 0)
        {
            LOG_I("Filesystem initialized!");
        }
        else
        {
            LOG_E("Failed to initialize filesystem!");
            rt_pin_write(0x000D, PIN_LOW);
        }
    }

    return RT_EOK;
}
#endif /*BSP_USING_FLASH_FATFS*/
#endif /*BSP_USING_FLASH_FS_AUTO_MOUNT*/

const struct romfs_dirent _romfs_root[] =
{
#ifdef BSP_USING_SDCARD_FATFS
    {ROMFS_DIRENT_DIR, "sdcard", RT_NULL, 0},
#endif

#ifdef BSP_USING_FLASH_FATFS
  { ROMFS_DIRENT_DIR, "fal", RT_NULL, 0 },
#endif
        };

const struct romfs_dirent romfs_root =
{
ROMFS_DIRENT_DIR, "/", (rt_uint8_t*) _romfs_root, sizeof(_romfs_root) / sizeof(_romfs_root[0])
};

static int filesystem_mount(void)
{

#ifdef RT_USING_DFS_ROMFS
    if (dfs_mount(RT_NULL, "/", "rom", 0, &(romfs_root)) != 0)
    {
        LOG_E("rom mount to '/' failed!");
    }

    /* Ensure that the block device is successfully registered before mounting the filesystem */
    rt_thread_delay(500);
#endif
#ifdef BSP_USING_FS_AUTO_MOUNT
    onboard_sdcard_mount();
#endif /* BSP_USING_FS_AUTO_MOUNT */

#ifdef BSP_USING_FLASH_FS_AUTO_MOUNT
    onboard_fal_mount ();
#endif

    return RT_EOK;
}
INIT_COMPONENT_EXPORT(filesystem_mount);
#endif /* defined(BSP_USING_FILESYSTEM)*/

Build & Download

• RT-Thread Studio: Download the Titan Board resource pack from the RT-Thread Studio package manager, then create a new project and compile it.

Once compiled, connect the development board’s USB-DBG interface to the PC, and download the firmware to the development board.

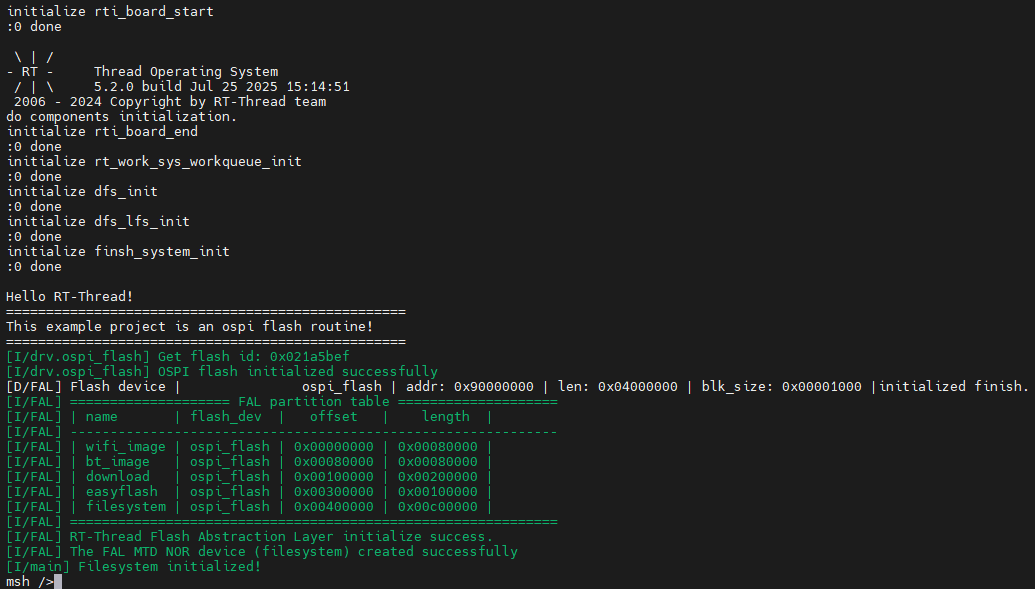

Running Result

Press the reset button to restart the development board and observe the terminal logs from the board.
