USB-HHID Usage Instructions

English | Chinese

Introduction

This document introduces a complete example of using the USB Host HID (HHID) module (r_usb_hhid) of the RA8 MCU series on the Titan Board to implement USB keyboard recognition and key input acquisition.

USB HID stands for Universal Serial Bus Human Interface Device. As the name suggests, HID devices are peripherals that directly interact with humans, such as keyboards, mice, and joysticks.

USB HHID Overview

1. General Overview

USB HID (Human Interface Device) is a device class defined in the USB specification, designed to enable interaction between humans and computers.

Typical HID devices include:

  • Keyboards

  • Mice

  • Game controllers

  • Touch screens

  • Consumer control devices (e.g., volume buttons, media keys)

USB HHID (Host HID) refers to Host-side support for HID devices. In this mode, the MCU or embedded system acts as the USB Host, capable of detecting, managing, and communicating with HID devices.

2. HID Protocol Characteristics

  • Plug and Play: No extra drivers are required, as most host OS (Windows, Linux, RTOS, etc.) provide built-in HID support.

  • Report Descriptor Based: Devices describe their data format through HID Report Descriptors.

  • Low Bandwidth Usage: Typically uses USB interrupt transfers, with small data size and low latency, suitable for real-time user interactions.

  • Cross-Platform: Standardized protocol, widely supported across PCs, embedded systems, and mobile devices.

3. Data Communication Mechanism

HID communication uses endpoints:

  • Control Endpoint (Endpoint 0): Used for device enumeration and descriptor exchange.

  • Interrupt Endpoint: Used for HID data transfer, typically via polling.

HID Data Flow:

  1. Device Connection → Host retrieves device descriptors via control transfer.

  2. Report Descriptor Parsing → Host learns the data format.

  3. Polling → Host periodically retrieves input reports from the HID device.

  4. Optional Output Reports → Host sends control data back to the device (e.g., LED status).

4. HID Device Categories

  • Input Devices: Keyboards, mice, touchpads, game controllers.

  • Output Devices: LEDs, haptic feedback devices.

  • Composite Devices: Devices with multiple HID functions, e.g., a mouse with extra buttons.

5. Application Scenarios

  • Embedded System Debugging: MCU as USB Host to connect keyboards/mice for user input.

  • Industrial Control: Connection of barcode scanners or control joysticks.

  • Medical Devices: Standardized connection with input peripherals.

  • Consumer Electronics: Smart TVs, set-top boxes supporting USB remotes/gamepads.

RA8 USB HHID Module Overview

1. Module Role & Functions

  • USB Host Controller Support: Supports USB Host mode (Full-Speed / High-Speed, depending on MCU hardware). Handles bus-level enumeration, transaction scheduling, endpoint management, and VBUS control.

  • HHID Class Driver Responsibilities: Implements USB HID Class (0x03) handling, specifically:

    • Enumeration and endpoint setup

    • Parsing HID Report Descriptors or using Boot Protocol

    • Submitting periodic interrupt transfers

    • Decoding keyboard key codes and reporting events

  • Transfer Type: Interrupt IN transfers (polling-based) for keyboard input. Also supports control transfers (for descriptors, protocol switching, etc.).

  • Event Dispatching: Key events (make/break, modifier keys) are delivered via callbacks, message queues, or RT-Thread device framework.

2. Capabilities

  • Full USB enumeration (Get Descriptor, Set Configuration, Set Interface)

  • HID Report Descriptor parsing for complex data formats

  • Support for HID Boot Protocol (keyboard) for simplified parsing

  • Poll interval and timeout/retry management

  • Hot-plug detection and multi-device support (with USB Hub)

  • Error handling (CRC, NAK, STALL, timeouts) with recovery mechanisms

  • Optional DMA support (depending on host controller hardware)

3. Workflow

  1. Host Initialization: Initialize USB host controller, enable VBUS, start USB interrupts and SOF.

  2. Device Detection: Detect device insertion, trigger enumeration.

  3. Enumeration & Class Detection: Read descriptors to identify HID class (0x03).

  4. Endpoint Setup: Retrieve HID descriptors, report descriptors, or check Boot Protocol.

  5. Interrupt IN Endpoint Configuration: Open endpoint and submit periodic interrupt transfers.

  6. Data Reception & Parsing: Parse HID reports into key events.

  7. Event Reporting: Forward key events to the application layer (RT-Thread framework).

  8. Device Removal Handling: Stop polling, release resources, notify removal event.

Hardware Description

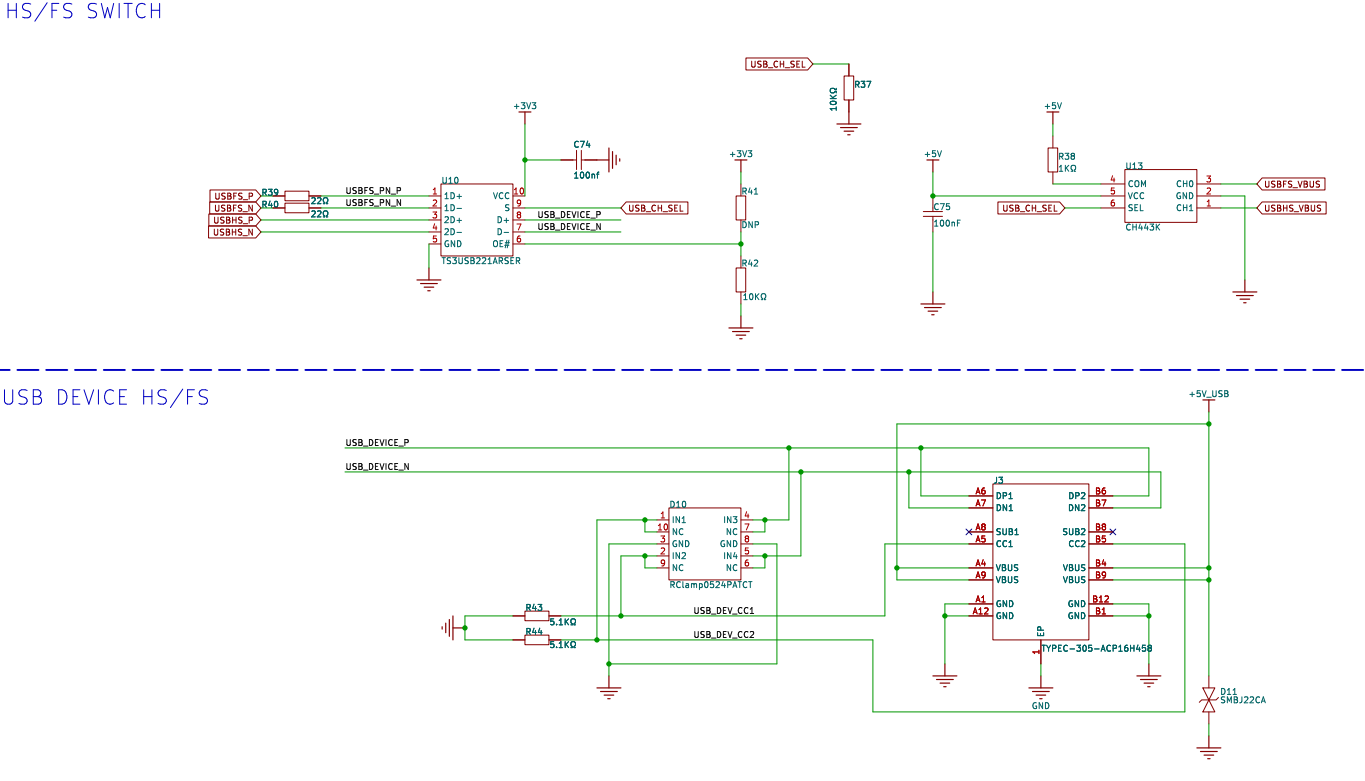

image-20251015150725238

Titan Board provides a USB-Device peripheral, located on the development board as shown below:

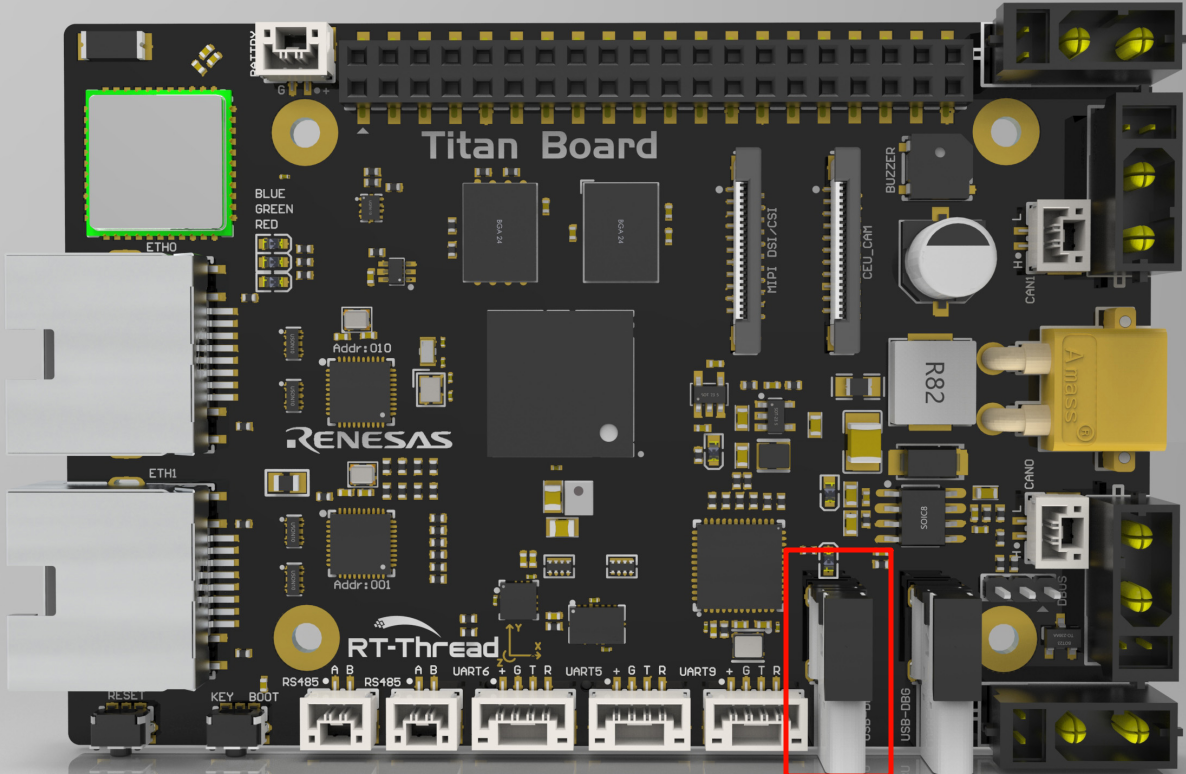

image-20250905135855760

FSP Configuration

  • Create a r_usb_hhid stack.

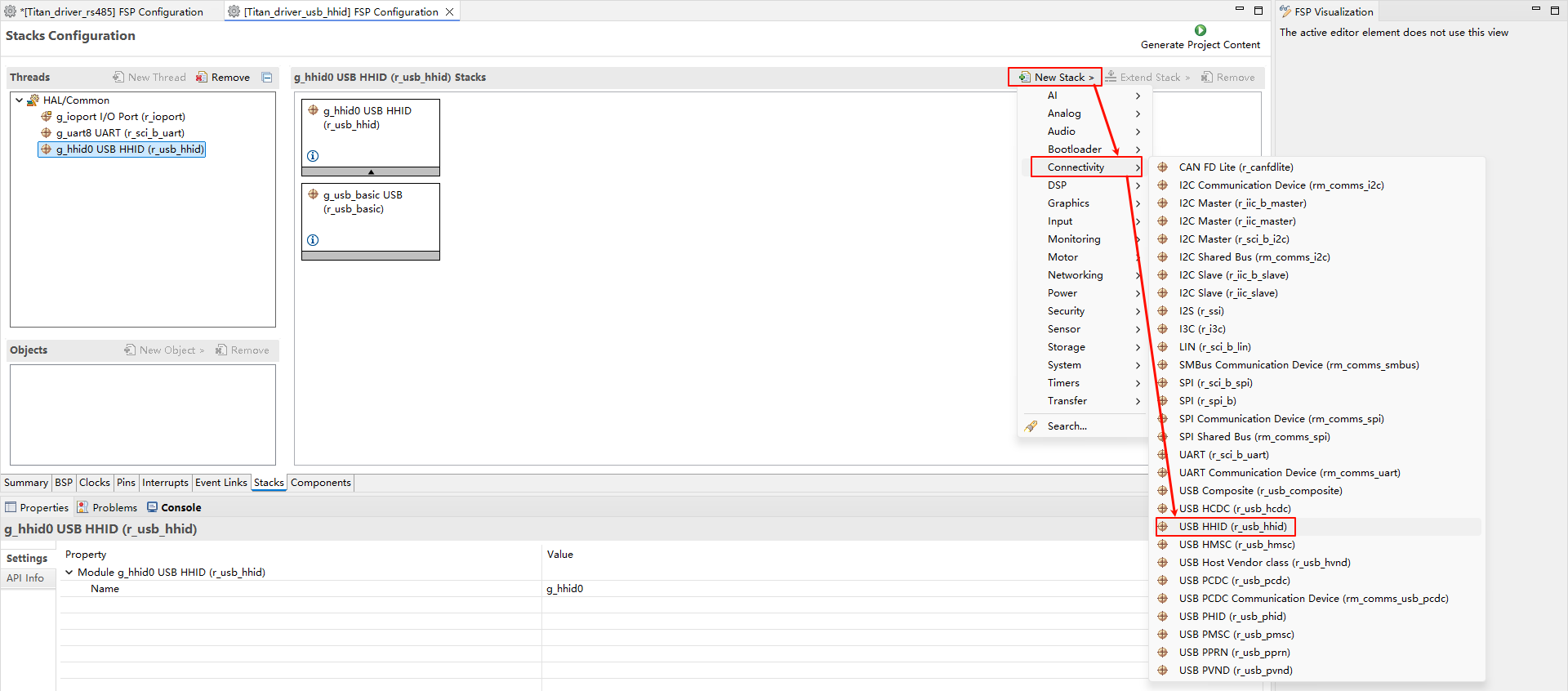

image-20250815113226531

  • Configure r_usb_basic stack.

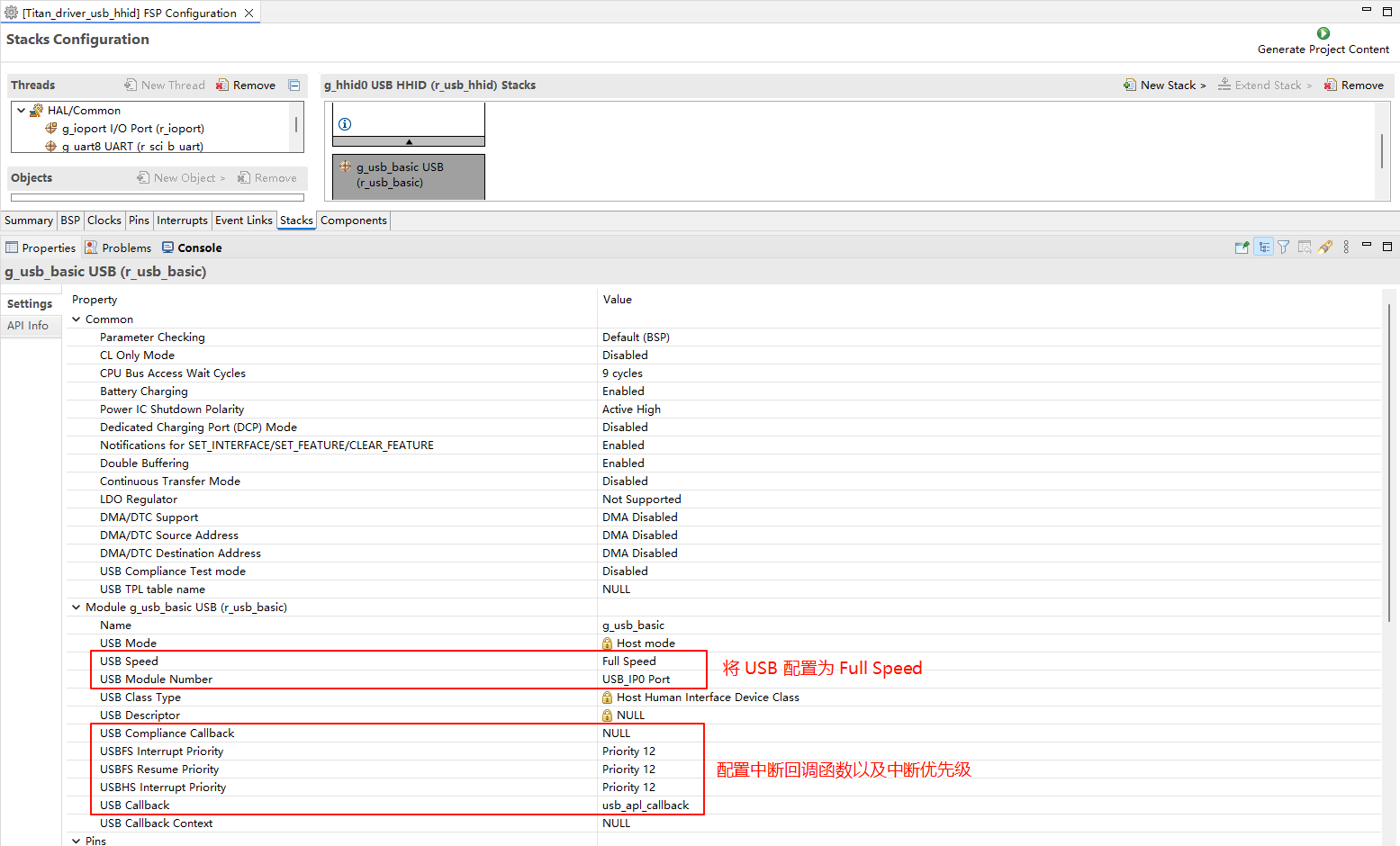

image-20250815113545475

  • Configure USB FS pins.

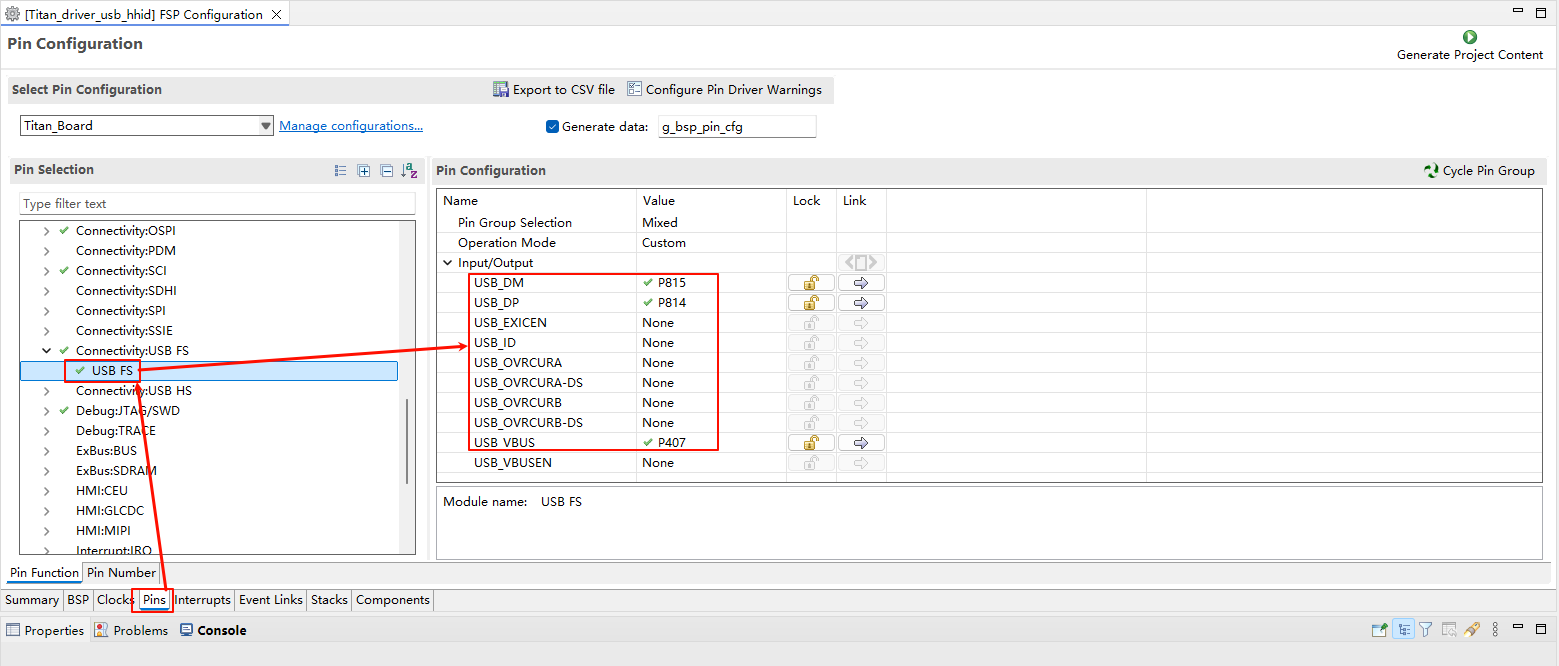

image-20250815113705009

RT-Thread Settings Configuration

  • Enable USB HHID。

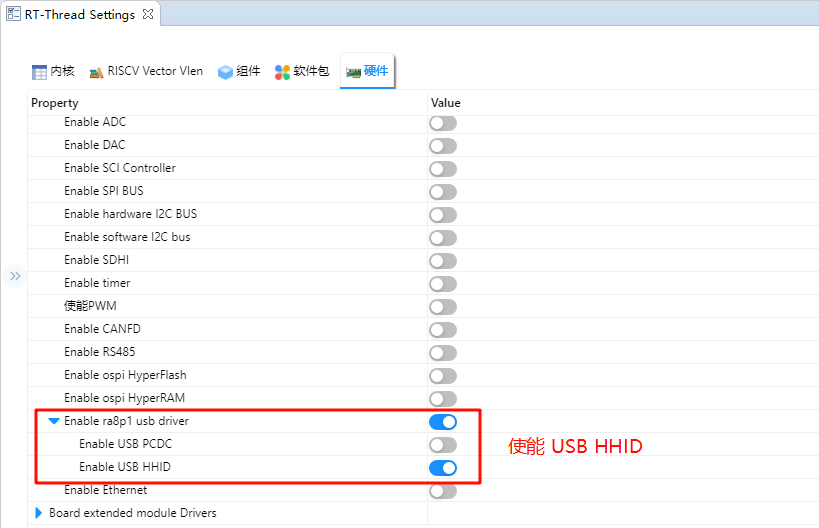

image-20250902113355057

  • The USB example currently uses the FreeRTOS interface driver, so we also need to enable the FreeRTOS compatibility layer package.

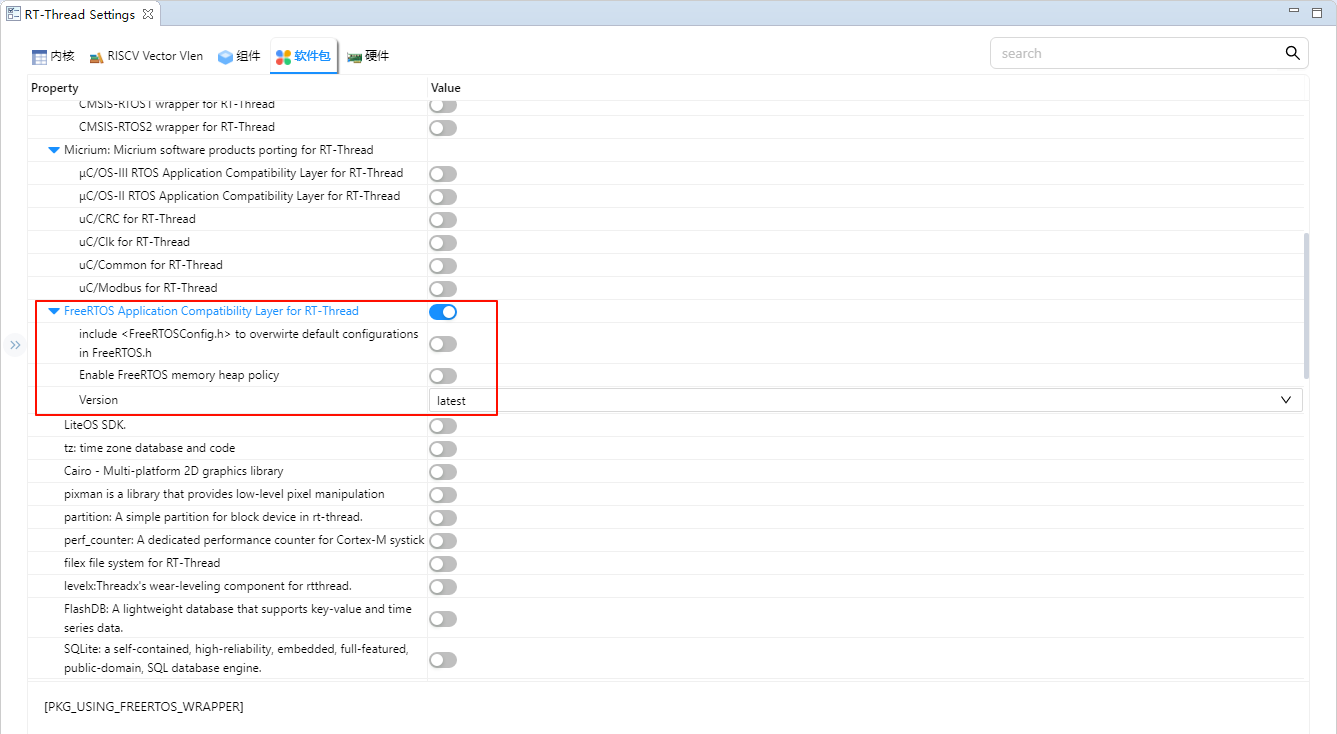

image-20250815113908062

Compilation & Download

  • RT-Thread Studio: Download the Titan Board resource package in the RT-Thread Studio package manager, create a new project, and compile it.

Once the compilation is complete, connect the USB-DBG interface of the development board to the PC and download the firmware to the board.

Running Results

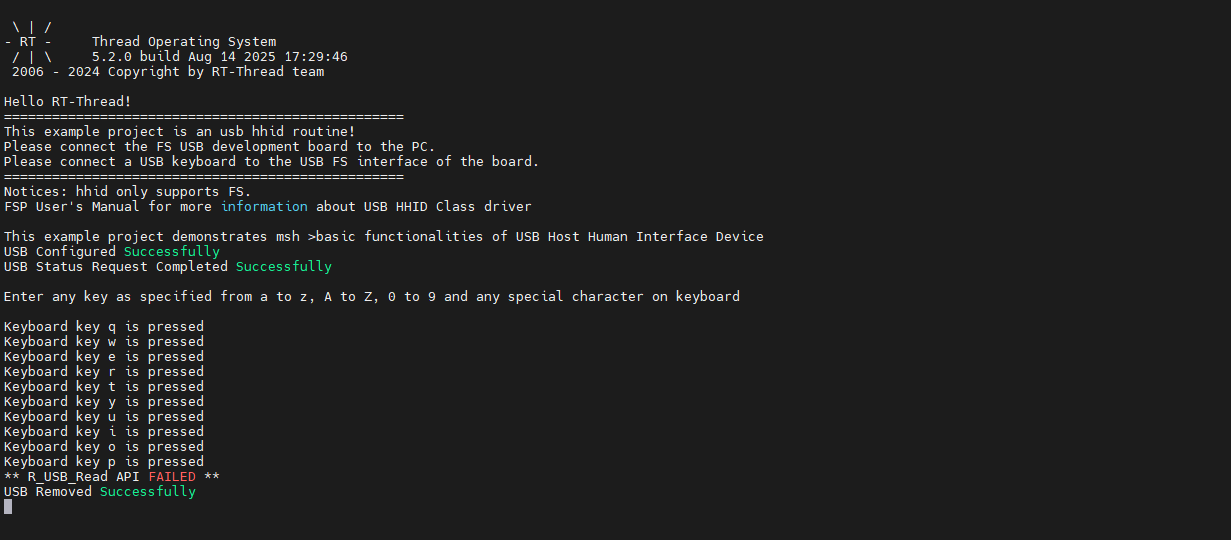

Connect the keyboard to the USB-DEV interface of the Titan Board via a adapter cable. After pressing a key on the keyboard, the terminal will display which key was pressed.

image-20250815114339417
