Introduction

This example demonstrates how to use the GLCDC module of the RA8 series MCU together with RT-Thread’s LCD driver framework on the Titan Board to drive an MIPI LCD screen, enabling image display and interface updates. This document provides a detailed overview of RA8 GLCDC peripheral features and the RT-Thread LCD driver framework, along with example configurations and usage methods.

The MIPI screen model used for this routine is TL043WVV02CT.

RA8 Series GLCDC Module

1. Overview

The GLCDC (Graphics LCD Controller) is a high-performance graphics controller integrated in RA8 series MCUs, specifically designed to drive TFT/RGB LCD screens. It supports various resolutions, color formats, and graphics processing functions. Combined with RT-Thread’s LCD driver framework, it provides a unified interface for screen initialization, refresh, graphics rendering, and DMA-accelerated operations.

The RA8 GLCDC enables image output from either internal MCU memory or external frame buffers to RGB/LCD displays. Key features include:

  • Frame buffer control: Supports multiple frame buffers for page switching or double-buffered display

  • Color format support: RGB565, RGB888, ARGB8888, etc.

  • Graphics processing: Background layers, text/graphics composition, alpha blending, palette mapping

  • Synchronization signal generation: HSYNC, VSYNC, DE (Data Enable)

  • DMA support: High-speed data transfer, reducing CPU load

  • Interrupt functionality: Frame-end and line-end interrupts

2. Module Architecture

The RA8 GLCDC module mainly consists of the following submodules:

  1. Layer Composition Unit

    • Supports multiple layer stacking

    • Provides alpha blending, transparency control, and color keying

    • Allows rotation and flipping of layers

  2. Frame Buffer Interface

    • Supports access to MCU internal SRAM or external memory

    • Provides single or double buffering to ensure continuous display

    • Works with DMA to automatically read image data

  3. DMA Controller

    • Automatically transfers pixel data to the RGB output port

    • Configurable burst length to improve bandwidth utilization

    • Supports circular transfer, suitable for video or animation scenarios

  4. Timing Generator

    • Automatically generates HSYNC, VSYNC, and DE signals

    • Supports TTL interface RGB timing

    • Polarity, sync width, and front/back porch timings are configurable

  5. Interrupt and Event Controller

    • Provides frame-end and line-end interrupts

    • Can be used for page switching, dynamic drawing, or scrolling display

    • Supports interrupts triggered by DMA transfer completion

3. GLCDC Working Principle

  1. Frame buffer read

    • GLCDC uses DMA to fetch image data from memory, supporting single or double buffering for continuous display.

  2. Layer composition

    • Supports multiple layers such as background + foreground + icons/text

    • Provides alpha blending and palette mapping

  3. Pixel timing output

    • Generates HSYNC/VSYNC/DE signals according to LCD interface requirements

    • Supports RGB parallel interface, TTL interface, or LVDS (depending on board implementation)

  4. Interrupts and events

    • Frame-end interrupt (VBlank): Can be used to update the next frame

    • Line-end interrupt: Useful for scrolling displays or dynamic rendering

4. GLCDC Supported Features

Feature Category

Description

Resolution

Up to 800×480 (depending on MCU model and clock)

Color formats

RGB565, RGB888, ARGB8888, etc.

Multi-layer

Background + foreground + icon layers, supports blending

Frame buffer

Single/double buffer mode, DMA improves performance

Palette

8/16-bit palette mapping for color conversion

Sync signals

HSYNC, VSYNC, DE, configurable polarity and timing

DMA support

Automatic memory transfer, CPU-free

Interrupts

Frame-end, line-end interrupts for synchronized refresh

Rotation/Flip

Supports 90°/180°/270° rotation and X/Y flipping

Hardware Description

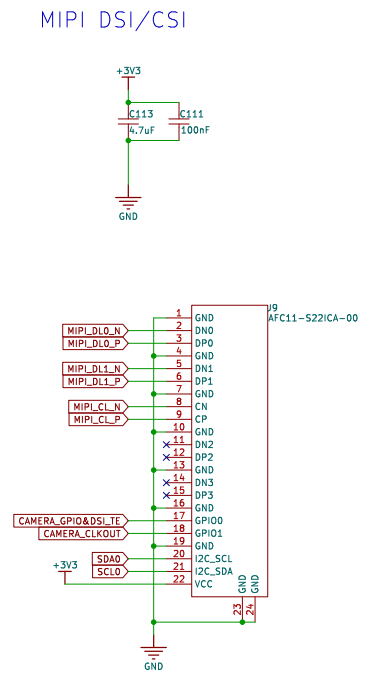

The following figure shows the MIPI DSI/CSI interface on the Titan Board. To connect the MIPI DSI screen, another adapter board is needed.

image-20251017171808172

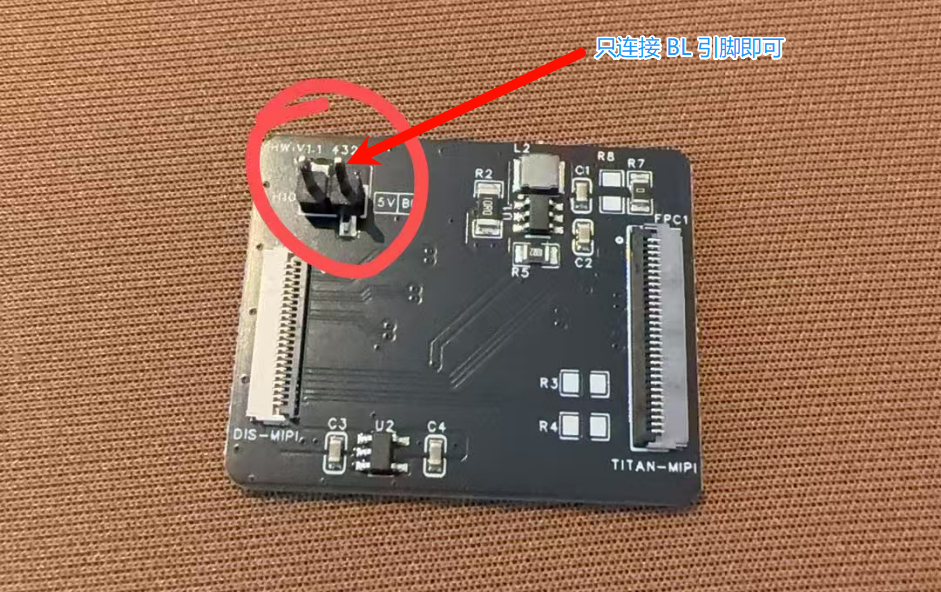

In this example, a Dupont wire is required to connect the BL pin on the display adapter board to the PB07 pin (the GPIO pin used to provide backlight can be changed as needed).

image-20251105125023597

FSP Configuration

HyperRAM Configuration

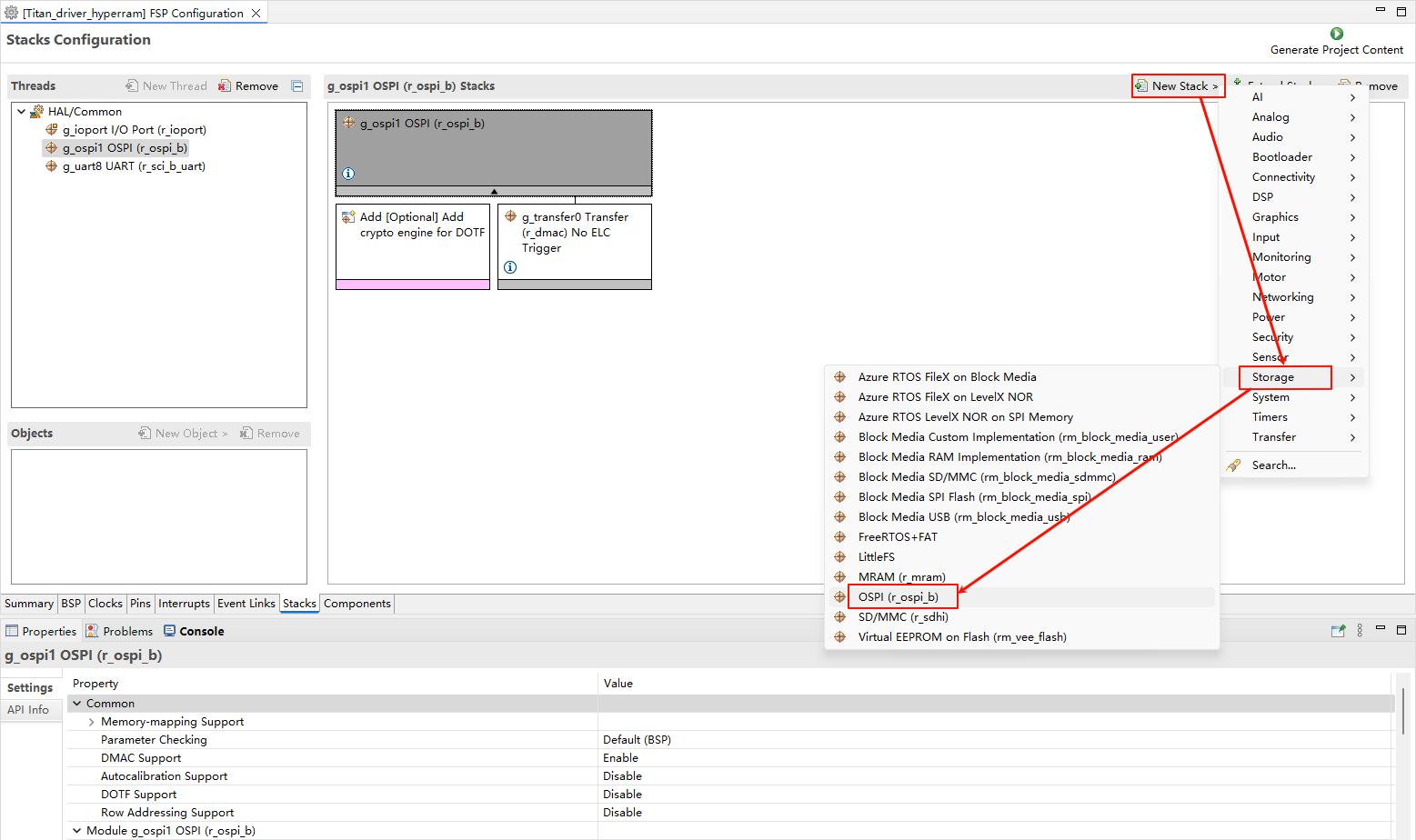

  • Create a r_ospi_b stack：

image-20250815132339843

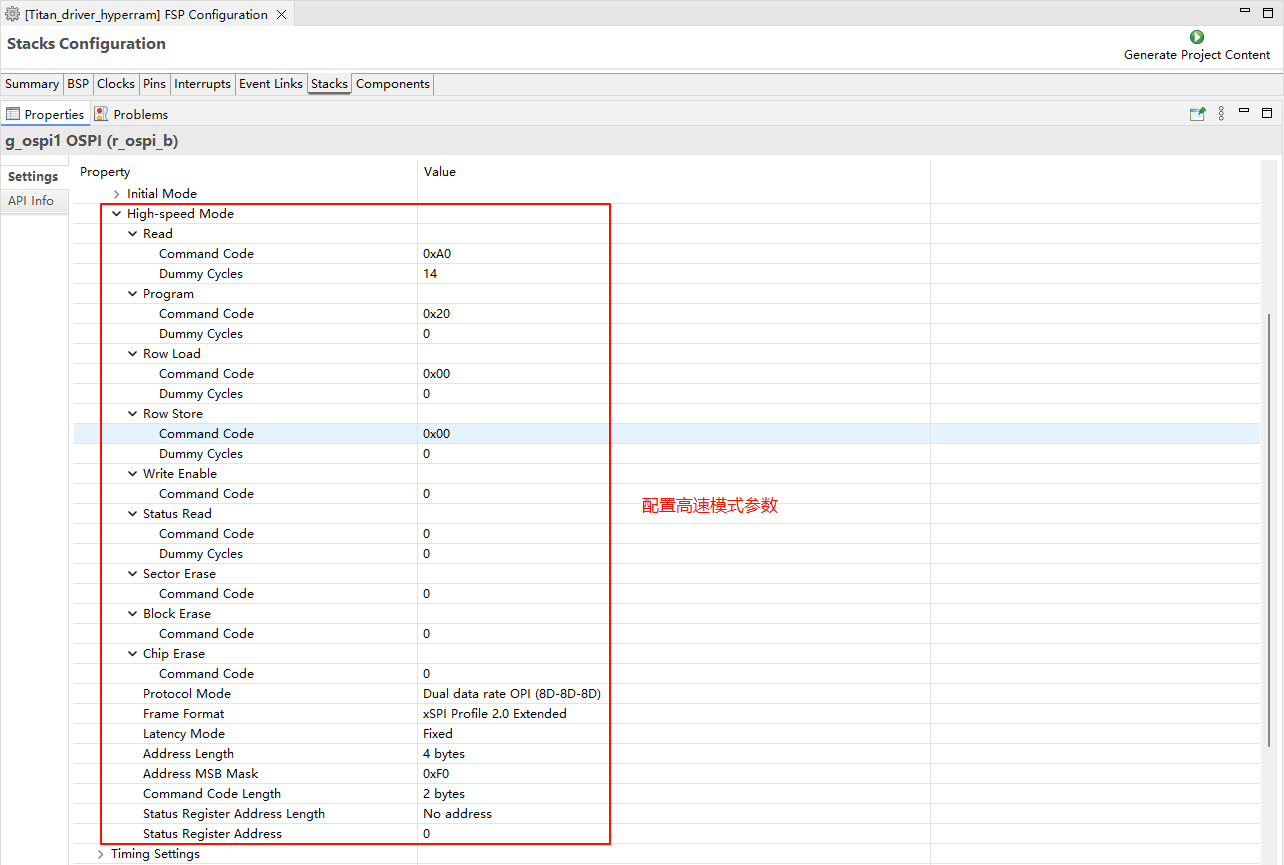

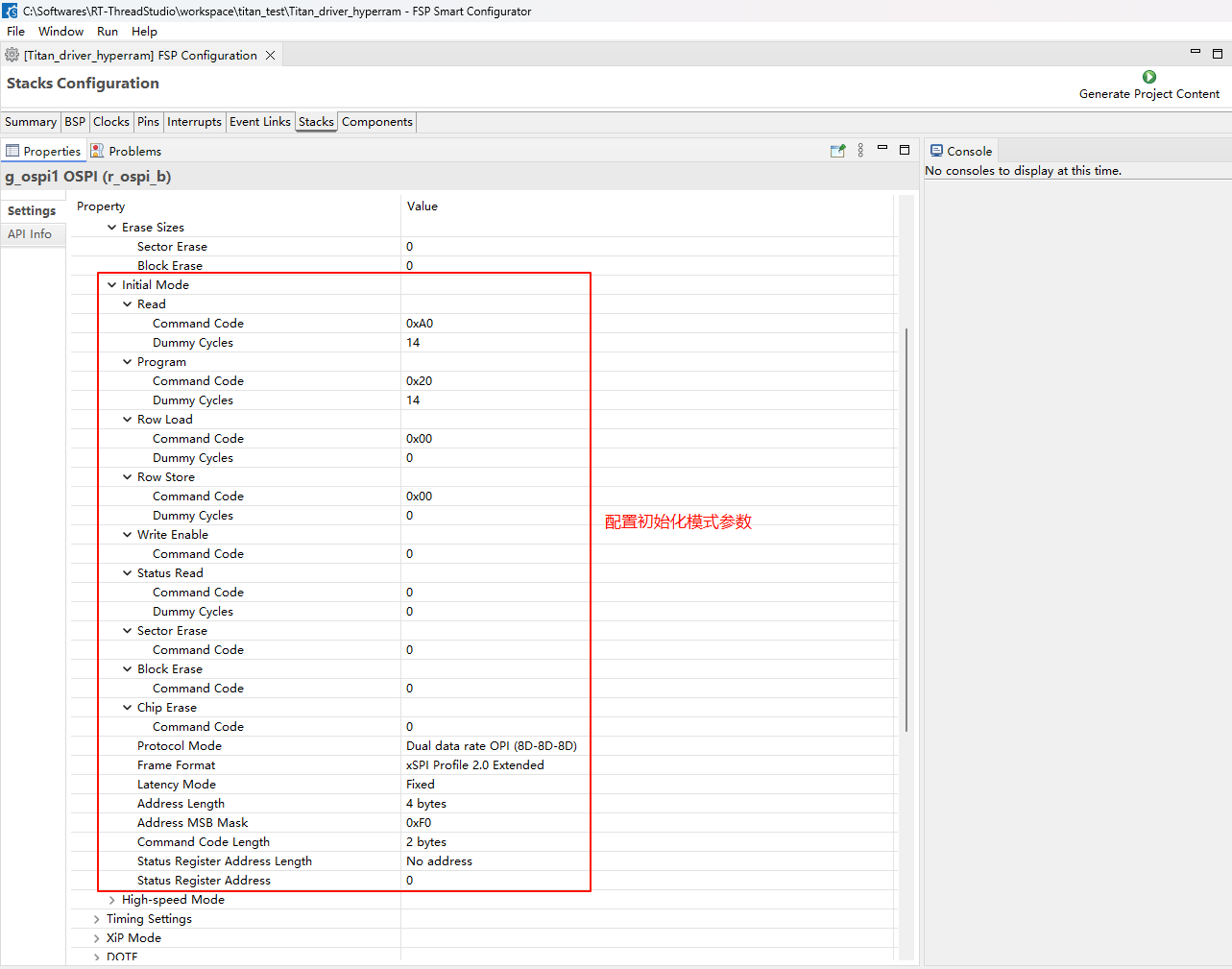

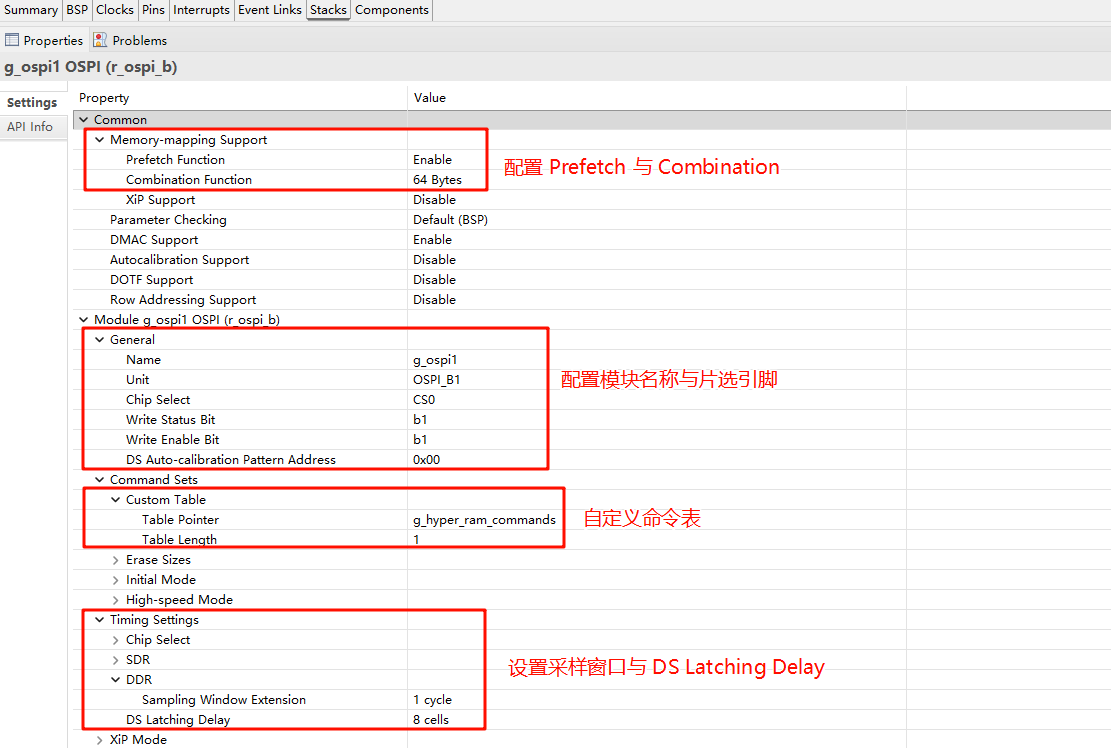

  • Configuration r_ospi_b stack：

image-20250924115414432

image-20251031172229786

image-20251031172918079

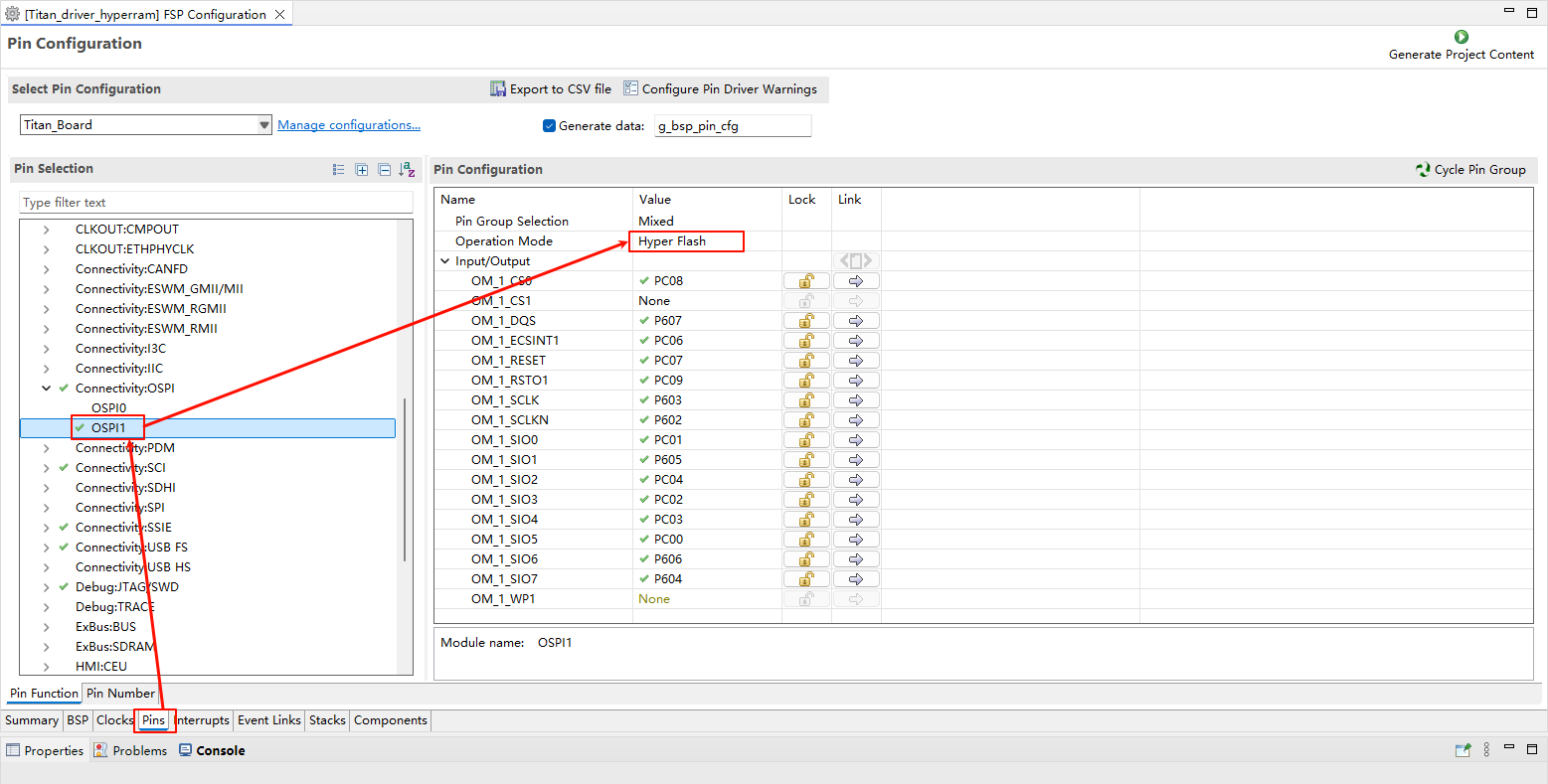

  • Configuration HyperRAM pins：

image-20250815132527184

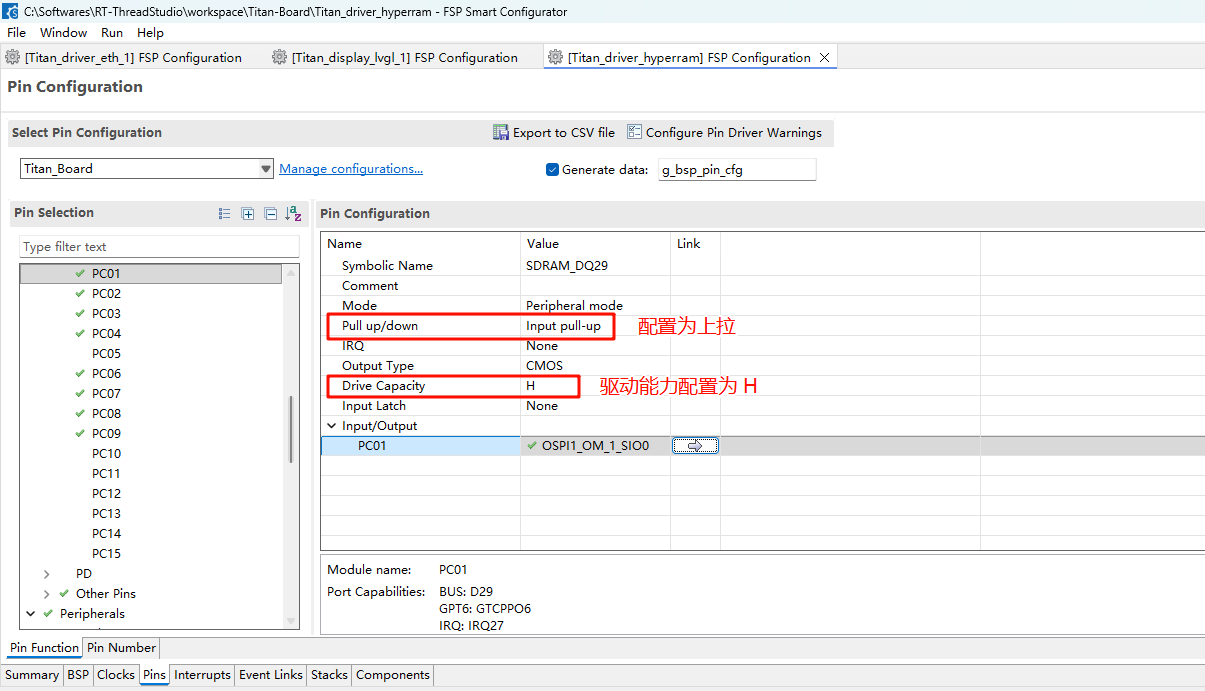

  • The drive capability of all pins related to HyperRAM should be configured as H, and OM_1_SIO0 to OM_1_SIO7 need to be configured as Input pull-up.

image-20250924114605538

LCD Configuration

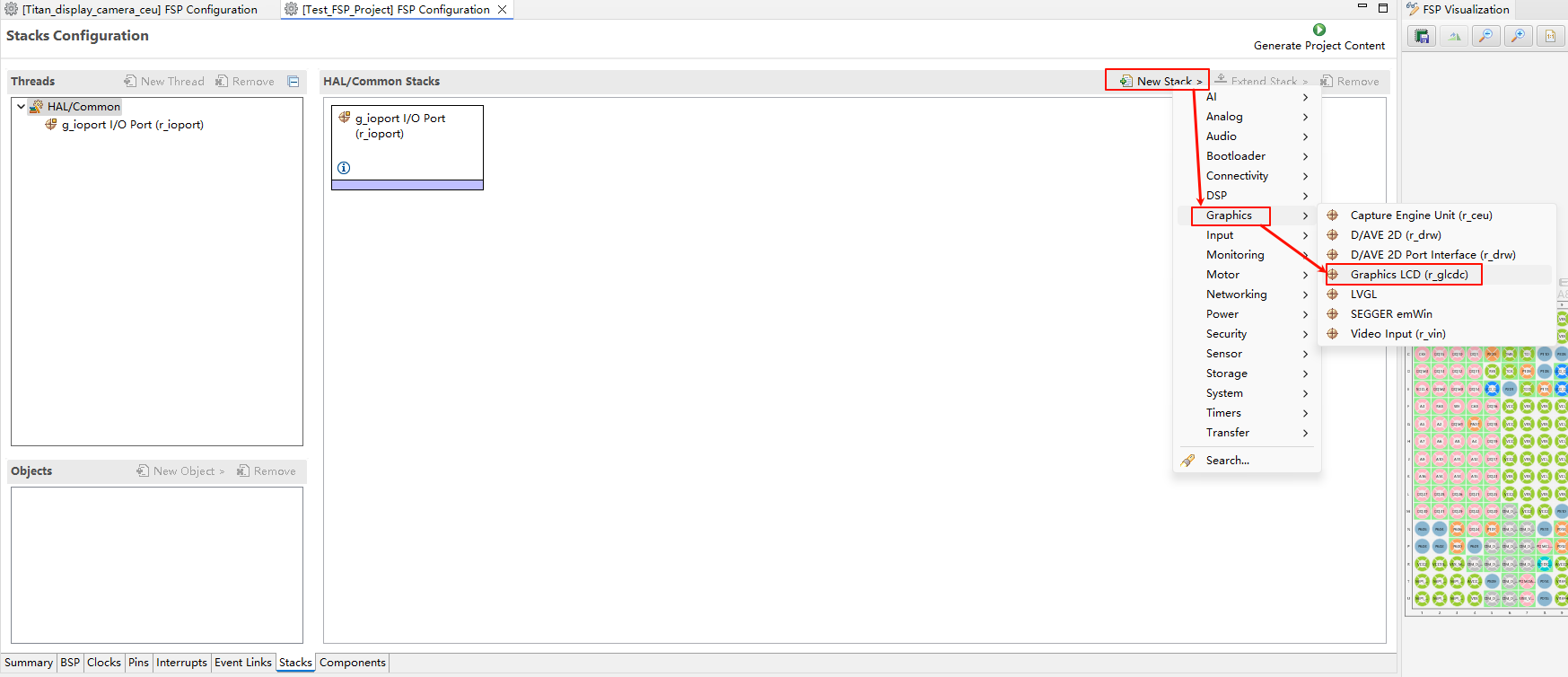

  • Create a r_glcdc stack:

image-20250815161846630

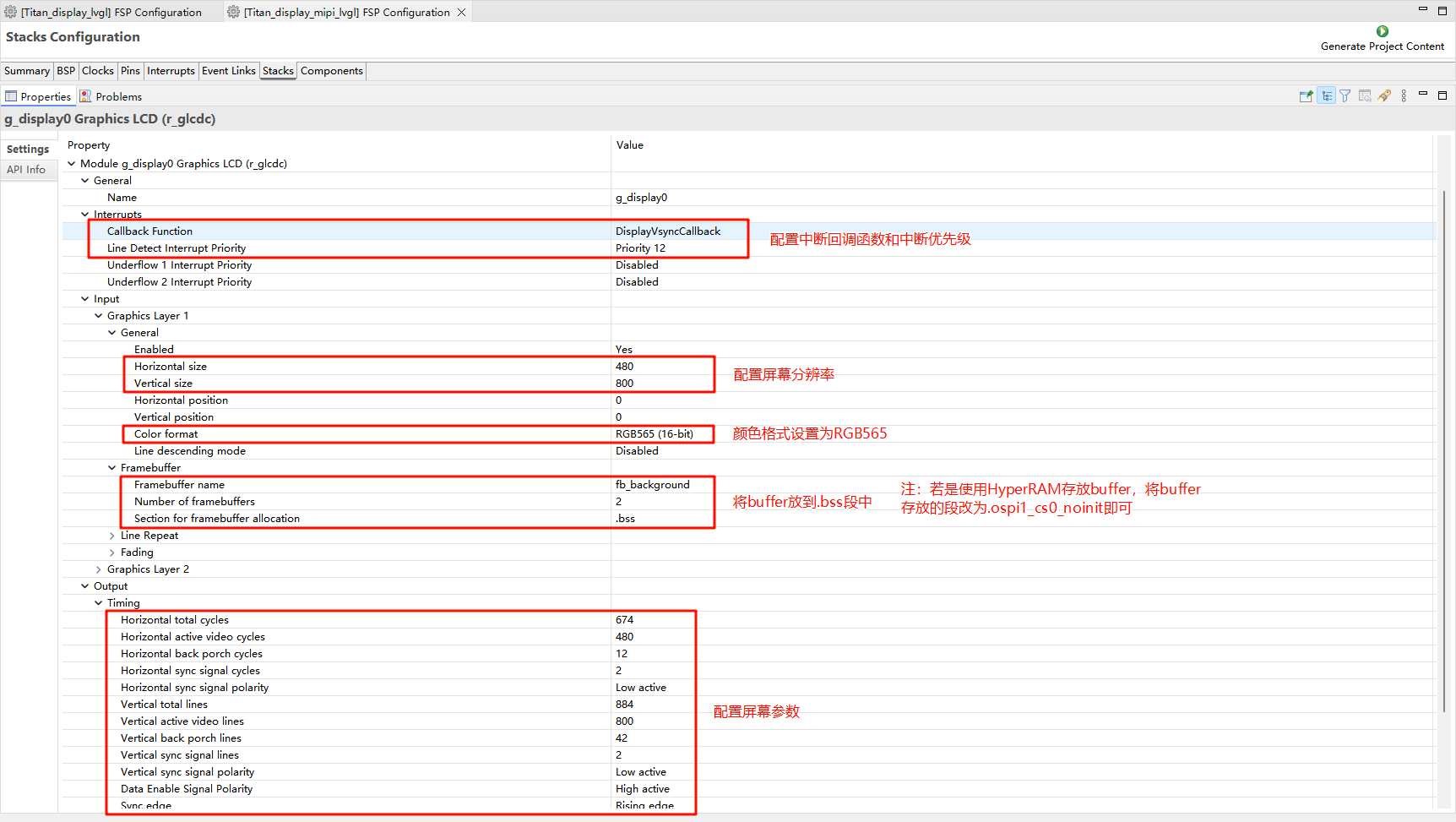

  • Configure interrupt callback and graph layer 1:

image-20251017172937776

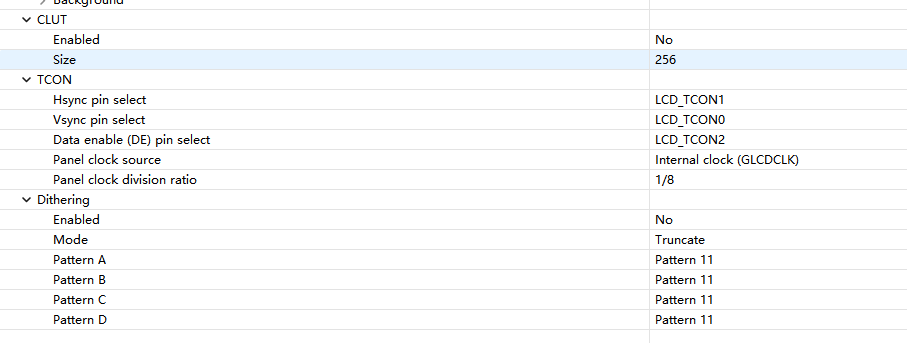

  • Configure Output、CLUT、TCON and Dithering:

image-20251017173003817

MIPI DSI Configuration

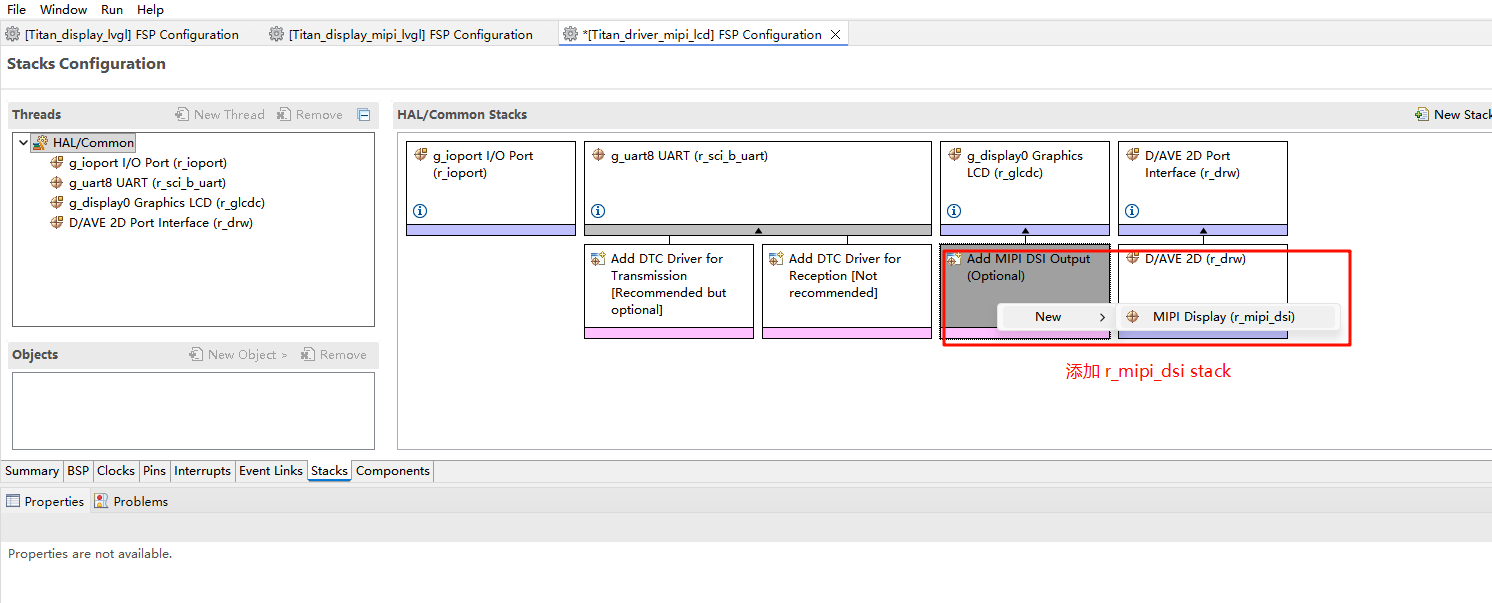

  • Create a r_mipi_dsi stack.

image-20251017173859873

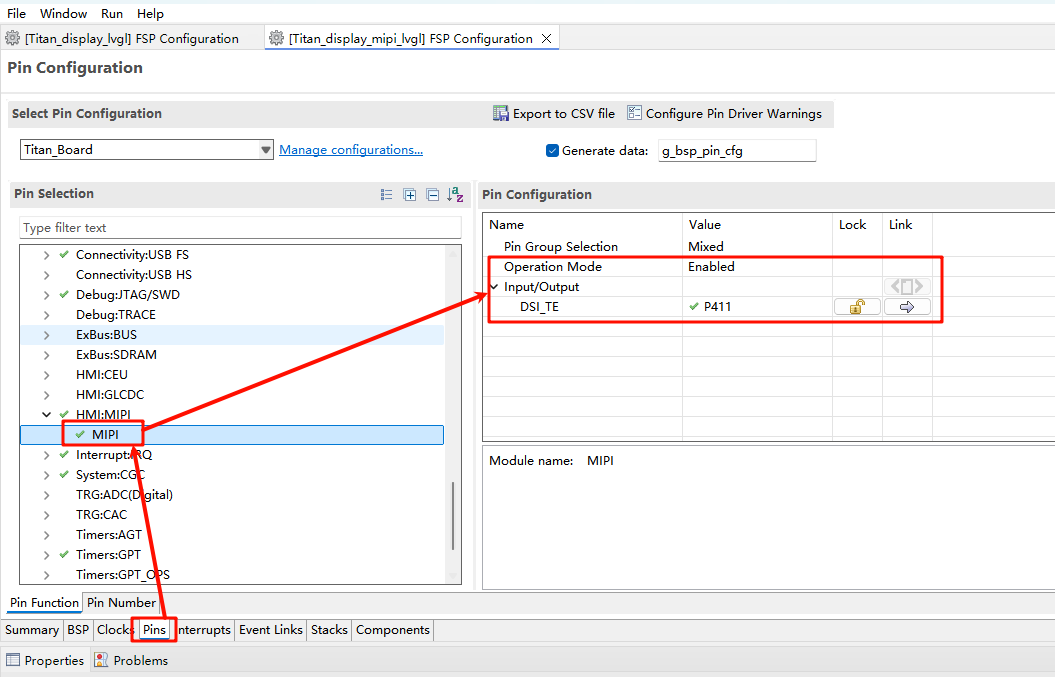

  • Configure MIPI DSI_TE pins.

image-20251017173139780

D/AVE 2D Configuration

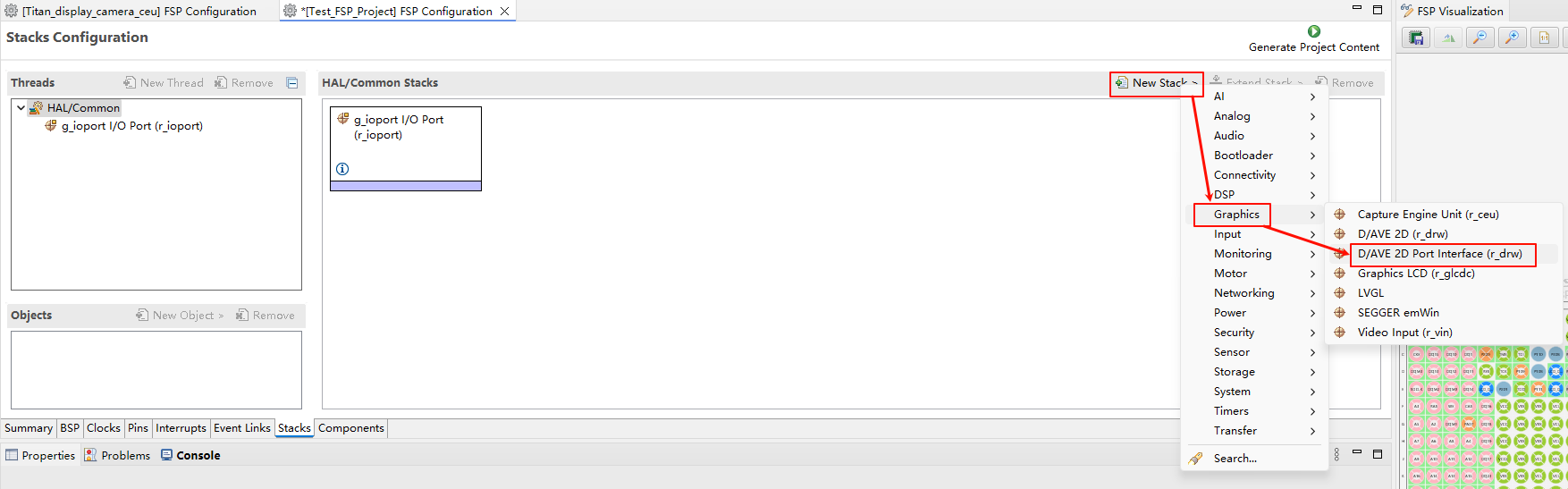

  • Create a r_drw stack:

image-20250815162521851

RT-Thread Settings Configuration

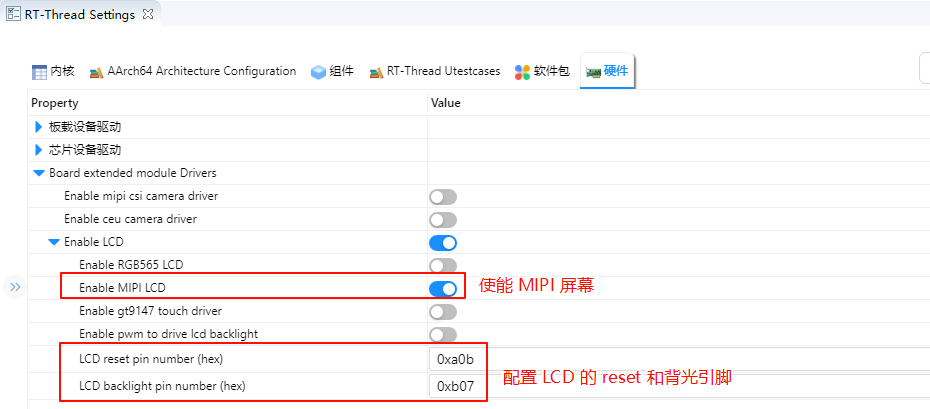

  • Enable MIPI LCD in RT-Thread Settings.

image-20251031180143626

Example Code Description

int lcd_test(void)
{
    struct drv_lcd_device *lcd;
    struct rt_device_rect_info rect_info;
    rect_info.x = 0;
    rect_info.y = 0;
    rect_info.width = LCD_WIDTH;
    rect_info.height = LCD_HEIGHT;

    lcd = (struct drv_lcd_device *)rt_device_find("lcd");

    for (int i = 0; i < 2; i++)
    {
        /* red */
        for (int i = 0; i < LCD_BUF_SIZE / 2; i++)
        {
            lcd->lcd_info.framebuffer[2 * i] = 0x00;
            lcd->lcd_info.framebuffer[2 * i + 1] = 0xF8;
        }
        LOG_D("red buffer...");
        rt_device_control(&lcd->parent, RTGRAPHIC_CTRL_RECT_UPDATE, &rect_info);
        rt_thread_mdelay(1000);
        /* green */
        for (int i = 0; i < LCD_BUF_SIZE / 2; i++)
        {
            lcd->lcd_info.framebuffer[2 * i] = 0xE0;
            lcd->lcd_info.framebuffer[2 * i + 1] = 0x07;
        }
        LOG_D("green buffer...");
        rt_device_control(&lcd->parent, RTGRAPHIC_CTRL_RECT_UPDATE, &rect_info);
        rt_thread_mdelay(1000);
        /* blue */
        for (int i = 0; i < LCD_BUF_SIZE / 2; i++)
        {
            lcd->lcd_info.framebuffer[2 * i] = 0x1F;
            lcd->lcd_info.framebuffer[2 * i + 1] = 0x00;
        }
        LOG_D("blue buffer...");
        rt_device_control(&lcd->parent, RTGRAPHIC_CTRL_RECT_UPDATE, &rect_info);
        rt_thread_mdelay(1000);
    }
    return RT_EOK;
}
MSH_CMD_EXPORT(lcd_test, lcd test cmd);

Compilation & Download

  • RT-Thread Studio: In RT-Thread Studio’s package manager, download the Titan Board resource package, create a new project, and compile it.

After compilation, connect the development board’s USB-DBG interface to the PC and download the firmware to the development board.

Run Effect

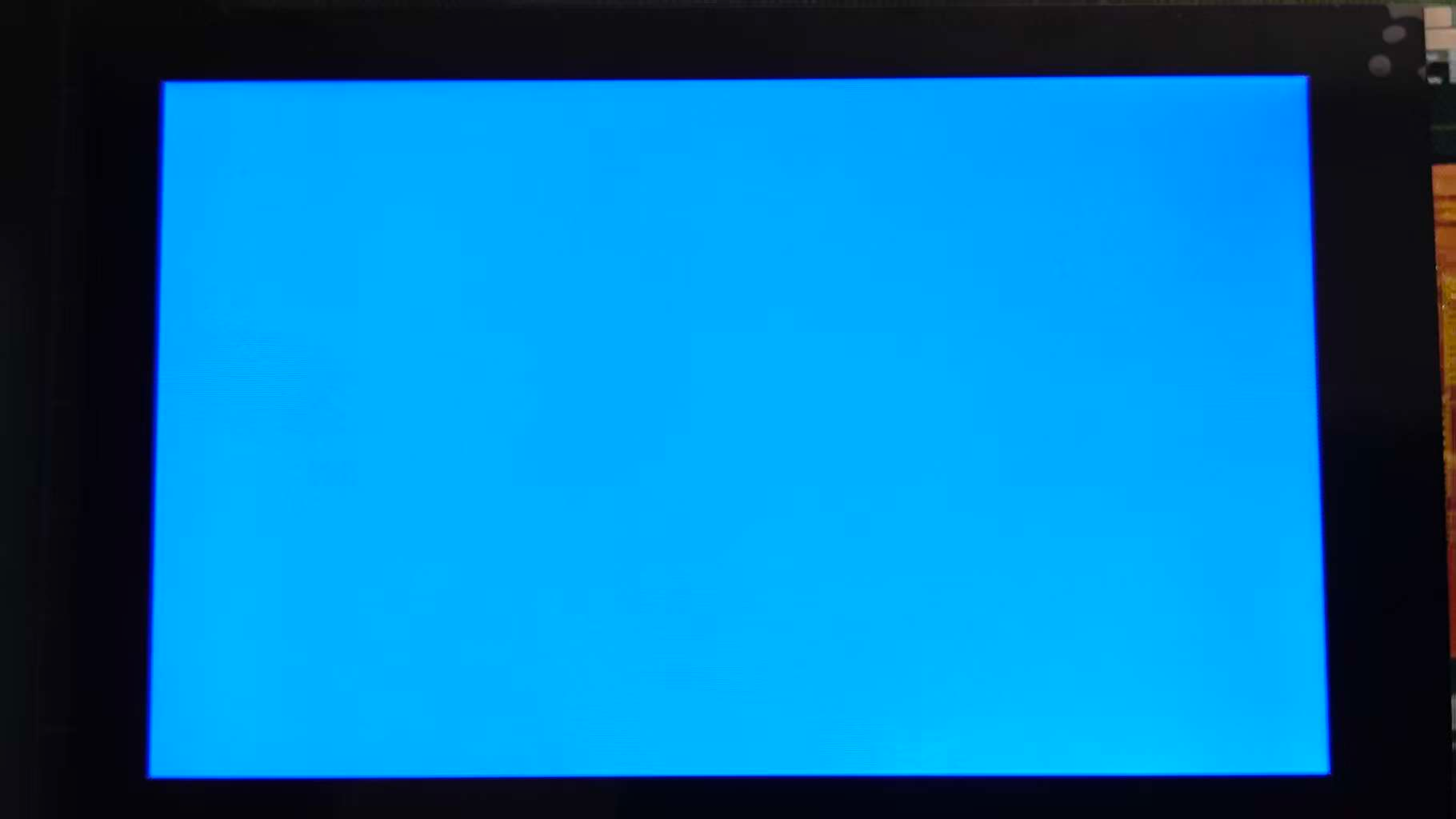

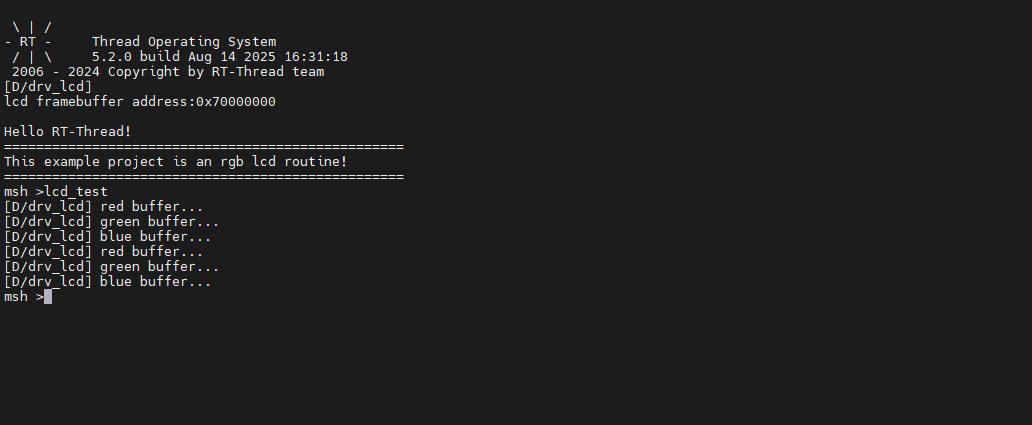

After reset the development board, type lcd_test command in the terminal to run the brush program.

image-20250815144902552

image-20251017174230400
