Introduction

This example demonstrates how to use the RT-Thread RTC Device Driver Framework on Titan Board Mini to drive the Real-Time Clock peripheral of the RA8P1 microcontroller. RTC (Real-Time Clock) is an important hardware peripheral that can maintain time information even when the main power is disconnected, providing a reliable time reference for the system.

Main Features

  • RA8P1 RTC hardware initialization

  • Date and time setting and reading

  • Alarm function configuration

  • Battery backup support

  • LED indicator status display

Hardware Introduction - RA8P1 RTC Features

1. Overview

RA8P1 is a high-performance microcontroller launched by Renesas Electronics, integrating multiple advanced peripherals. Its RTC module is a complete real-time clock system with full calendar functionality and low-power characteristics.

2. RA8P1 RTC Main Features

2.1 Core Functions

  • Calendar Function: Supports complete time calculation for year, month, date, hour, minute, and second

  • Clock Source: 32.768kHz crystal oscillator as the clock source, providing precise time reference

  • Low-power Operation: Supports low-power mode, can run for a long time under battery power

  • Battery Backup: Supports VBATT battery backup function, maintains time information after main power is disconnected

2.2 Alarm Function

  • Programmable Alarm: Supports setting multiple alarm events

  • Multiple Trigger Modes:

    • Per-second trigger

    • Per-minute trigger

    • Per-hour trigger

    • Daily trigger

    • Weekly trigger

    • Monthly trigger

    • Yearly trigger

2.3 Advanced Features

  • Automatic Leap Year Compensation: Automatically handles leap year calculation

  • 2000-2099 Calendar: Supports 100-year calendar range (2000-2099)

  • Temperature Compensation: Optional temperature compensation function to improve time accuracy

  • Event Link Controller: Supports event link triggering with peripherals

2.4 Hardware Support

  • VBATT Pin: Dedicated battery backup pin, supports external battery power supply

  • 32.768kHz Crystal Oscillator: Built-in sub-clock oscillator

  • Backup Registers: Provides data backup function

  • Tamper Detection: Supports up to 3 tamper detection pins

2.5 Power Management

  • Multiple Power Modes:

    • Normal mode

    • Low-power mode

    • Deep sleep mode

  • Voltage Detection: Programmable voltage detection (PVD) function

  • Watchdog: Dual watchdog timer

3. RA8P1 RTC Technical Parameters

Parameter

Value

Description

Clock Accuracy

±5ppm

32.768kHz crystal oscillator accuracy

Calendar Range

2000-2099

Supports 100-year calendar

Time Format

24-hour format

Supports hour:minute:second

Leap Year Handling

Automatic

Automatic leap year calculation

Operating Voltage

1.62-3.6V

Wide voltage range

Temperature Range

-40°C ~ +105°C

Industrial-grade temperature range

Backup Power

3.3V

Supports VBATT battery backup

Software Architecture - RT-Thread RTC Device Framework

1. RT-Thread Device Architecture

RT-Thread adopts a layered device management architecture:

Application Layer
├── I/O Device Management Layer
├── Device Driver Framework Layer
└── Device Driver Layer
    └── RA8P1 RTC Hardware Abstraction Layer

2. RTC Device Type

In RT-Thread, RTC belongs to device type RT_Device_Class_RTC:

enum rt_device_class_type {
    RT_Device_Class_Char,    // Character device
    RT_Device_Class_Block,   // Block device
    RT_Device_Class_NetIf,   // Network interface device
    RT_Device_Class_MTD,     // Memory device
    RT_Device_Class_RTC,     // RTC device
    RT_Device_Class_Sound,   // Sound device
    RT_Device_Class_Graphic, // Graphic device
    // ...
};

3. Device Management Interface

3.1 Device Finding

rt_device_t rt_device_find(const char* name);

3.2 Device Operations

rt_err_t rt_device_open(rt_device_t dev, rt_uint16_t oflag);
rt_err_t rt_device_close(rt_device_t dev);
rt_size_t rt_device_read(rt_device_t dev, rt_off_t pos, void *buffer, rt_size_t size);
rt_size_t rt_device_write(rt_device_t dev, rt_off_t pos, const void *buffer, rt_size_t size);
rt_err_t rt_device_control(rt_device_t dev, rt_uint8_t cmd, void *arg);

4. RT-Thread RTC API

4.1 Time Operation API

// Set date
rt_err_t set_date(rt_uint32_t year, rt_uint32_t month, rt_uint32_t day);

// Set time
rt_err_t set_time(rt_uint32_t hour, rt_uint32_t minute, rt_uint32_t second);

// Get current time
time_t time(time_t *t);

4.2 Timestamp Operation

// Get timestamp
time_t get_timestamp(time_t *timestamp);

// Convert timestamp to local time
void gmtime_r(const time_t *timep, struct tm *result);

4.3 Alarm API

// Alarm callback function
typedef void (*rt_alarm_callback)(rt_alarm_t alarm, time_t timestamp);

// Create alarm
rt_alarm_t rt_alarm_create(rt_alarm_callback callback, struct rt_alarm_setup *setup);

// Start alarm
rt_err_t rt_alarm_start(rt_alarm_t alarm);

// Stop alarm
rt_err_t rt_alarm_stop(rt_alarm_t alarm);

// Delete alarm
rt_err_t rt_alarm_delete(rt_alarm_t alarm);

Usage Example

1. Time Setting and Reading

1.1 Basic Time Setting

#include <rtthread.h>
#include <rtdevice.h>

void hal_entry(void)
{
    rt_err_t ret = RT_EOK;
    time_t now;
    rt_device_t device = rt_device_find("rtc");

    if (!device) {
        rt_kprintf("Failed to find RTC device!\n");
        return;
    }

    // Open device
    ret = rt_device_open(device, 0);
    if (ret != RT_EOK) {
        rt_kprintf("Failed to open RTC device!\n");
        return;
    }

    // Set date (August 1, 2025)
    ret = set_date(2025, 8, 1);
    if (ret != RT_EOK) {
        rt_kprintf("Failed to set RTC date\n");
        return;
    }
    rt_kprintf("Set RTC date to 2025-8-1\n");

    // Set time (15:00:00)
    ret = set_time(15, 00, 00);
    if (ret != RT_EOK) {
        rt_kprintf("Failed to set RTC time\n");
        return;
    }
    rt_kprintf("Set RTC time to 15:00:00\n");

    // Delay for 3 seconds
    rt_thread_mdelay(3000);

    // Get current timestamp
    get_timestamp(&now);
    rt_kprintf("Current time: %.*s", 25, ctime(&now));
}

1.2 Advanced Time Operation

// Get complete time information
void get_full_time_info(void)
{
    time_t now;
    struct tm *timeinfo;

    // Get current timestamp
    now = time(NULL);

    // Convert to local time
    timeinfo = localtime(&now);

    rt_kprintf("Current time information:\n");
    rt_kprintf("Year: %d\n", timeinfo->tm_year + 1900);
    rt_kprintf("Month: %d\n", timeinfo->tm_mon + 1);
    rt_kprintf("Day: %d\n", timeinfo->tm_mday);
    rt_kprintf("Hour: %d\n", timeinfo->tm_hour);
    rt_kprintf("Minute: %d\n", timeinfo->tm_min);
    rt_kprintf("Second: %d\n", timeinfo->tm_sec);
    rt_kprintf("Day of week: %d\n", timeinfo->tm_wday);
    rt_kprintf("Day of year: %d\n", timeinfo->tm_yday);
    rt_kprintf("Daylight saving time flag: %d\n", timeinfo->tm_isdst);
}

2. Alarm Configuration

2.1 Alarm Callback Function

void user_alarm_callback(rt_alarm_t alarm, time_t timestamp)
{
    rt_kprintf("Alarm triggered! Time: %.*s", 25, ctime(&timestamp));

    struct rt_alarm_setup *setup = (struct rt_alarm_setup *)alarm->user_data;
    if (setup->flag == RT_ALARM_SECOND) {
        rt_kprintf("Per-second alarm triggered\n");
    } else if (setup->flag == RT_ALARM_MINUTE) {
        rt_kprintf("Per-minute alarm triggered\n");
    }
}

2.2 Alarm Example Configuration

// Alarm example function
void alarm_sample(void)
{
    rt_device_t dev = rt_device_find("rtc");
    struct rt_alarm_setup setup;
    struct rt_alarm *alarm = RT_NULL;
    static time_t now;
    struct tm p_tm;

    // Get current timestamp
    now = get_timestamp(NULL);

    // Set alarm time to next second
    now += 1;
    gmtime_r(&now, &p_tm);

    // Configure alarm parameters
    setup.flag = RT_ALARM_SECOND;  // Trigger every second
    setup.wktime.tm_year = p_tm.tm_year;
    setup.wktime.tm_mon = p_tm.tm_mon;
    setup.wktime.tm_mday = p_tm.tm_mday;
    setup.wktime.tm_wday = p_tm.tm_wday;
    setup.wktime.tm_hour = p_tm.tm_hour;
    setup.wktime.tm_min = p_tm.tm_min;
    setup.wktime.tm_sec = p_tm.tm_sec;

    // Create alarm
    alarm = rt_alarm_create(user_alarm_callback, &setup);
    if (alarm != RT_NULL) {
        rt_alarm_start(alarm);
        rt_kprintf("Alarm created and started successfully\n");
    }
}

Configuration Instructions

Running Effect Example

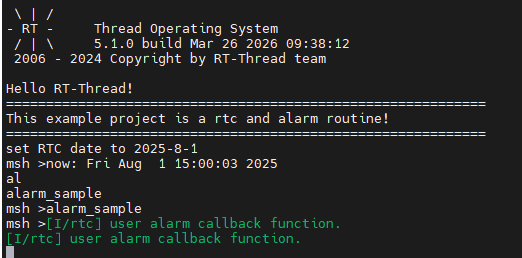

1. Console Output

After compiling and flashing the program, power on and run alarm_sample in the terminal to see the effect
