QSPI Flash File System Example Guide

中文 | English

Introduction

This example demonstrates how to implement a LittleFS file system using the onboard QSPI Flash (W25Q64) on the Titan Board Mini, managed through RT-Thread’s FAL (Flash Abstraction Layer) for Flash device management.

Key features include:

  • Use QSPI interface to drive W25Q64 Flash (8MB capacity)

  • Manage Flash devices and partitions through FAL abstraction layer

  • Mount LittleFS file system to Flash partition

  • Provide standard file I/O operation interfaces

  • Support file system read/write, create, delete and other operations

Hardware Introduction

1. W25Q64 QSPI Flash

Titan Board Mini has an onboard W25Q64 QSPI Flash chip:

Parameter

Description

Model

W25Q64

Capacity

8MB (64Mbit)

Interface

QSPI (Quad SPI)

Voltage

2.7V - 3.6V

Sector Size

4KB

Block Size

64KB

Page Size

256B

Clock Frequency

Up to 133MHz (QSPI mode)

2. QSPI Interface Features

QSPI (Quad Serial Peripheral Interface) is a high-speed serial interface:

  • 4-bit Data Bus: 4x data throughput compared to standard SPI

  • High-speed Transfer: Supports clock frequencies up to 133MHz

  • Low Pin Count: Only 6 signal lines required (CLK, CS, D0-D3)

  • Hardware Acceleration: RA8P1 integrates OSPI_B module, supports DMA transfer

Flash Partition Plan

This example divides the W25Q64 Flash into 4 partitions:

Partition Name

Start Address

Size

Purpose

bootloader

0x000000

512KB

Bootloader program

app

0x80000

512KB

Application firmware

download

0x100000

1MB

Download cache area

filesystem

0x200000

1MB

LittleFS file system

Flash Partition Layout:

W25Q64 (8MB)
├────────────────┬────────────────┬────────────────┬────────────────┬─────────────
│  Bootloader    │      App       │    Download    │   Filesystem   │   Reserved
│    512KB       │     512KB      │      1MB       │      1MB       │    4MB
└────────────────┴────────────────┴────────────────┴────────────────┴─────────────
0x000000        0x080000        0x100000        0x200000        0x300000

Software Architecture

1. Layered Design

The file system adopts a layered architecture design:

Application Layer (user code)
    ↓
DFS (Device File System) - RT-Thread file system abstraction layer
    ↓
LittleFS - Lightweight embedded file system
    ↓
FAL (Flash Abstraction Layer) - Flash abstraction layer
    ↓
MTD (Memory Technology Device) - Memory device driver
    ↓
W25Q64 QSPI Driver - Hardware driver layer
    ↓
QSPI/OSPI_B hardware interface

2. Core Components

FAL (Flash Abstraction Layer)

FAL provides unified management interfaces for Flash devices and partitions:

  • Flash Device Table: Define Flash devices in the system

  • Partition Table: Define Flash partition layout

  • Abstract Interface: Provide unified read/write/erase operations

FAL Configuration (fal_cfg.h):

/* Flash device table */
#define FAL_FLASH_DEV_TABLE  \
{                             \
    &w25q64,                  \
}

/* Partition table */
#define FAL_PART_TABLE  \
{                        \
    {FAL_PART_MAGIC_WORD, "bootloader", "W25Q64", 0,  512 * 1024, 0}, \
    {FAL_PART_MAGIC_WORD,        "app", "W25Q64", 512 * 1024,  512 * 1024, 0}, \
    {FAL_PART_MAGIC_WORD,   "download", "W25Q64", (512 + 512) * 1024, 1024 * 1024, 0}, \
    {FAL_PART_MAGIC_WORD, "filesystem", "W25Q64", (512 + 512 + 1024) * 1024, 1024 * 1024, 0}, \
}

LittleFS File System

LittleFS is a file system designed specifically for embedded systems:

  • Power-safe: Uses Copy-on-Write mechanism to ensure data integrity

  • Wear Leveling: Automatically performs Flash wear leveling to extend Flash life

  • Low Memory Footprint: Small RAM usage, suitable for resource-constrained systems

  • Dynamic Size: File system size can be adjusted as needed

W25Q64 QSPI Driver

W25Q64 driver provides Flash hardware operation interfaces:

  • Read Operation: Supports fast read (Quad Read)

  • Write Operation: Page programming (256B/page)

  • Erase Operation: Supports 4KB sector erase and 64KB block erase

  • Status Query: Query Flash busy status and write enable status

3. Project Structure

Titan_Mini_component_flash_fs/
├── src/
│   └── hal_entry.c          # Main program entry
├── libraries/
│   └── Common/ports/
│       ├── fal_cfg.h        # FAL configuration
│       └── w25q64/
│           ├── drv_w25q64.c # W25Q64 driver
│           └── ospi_b_commands.c # QSPI commands
└── packages/
    └── littlefs-v2.5.0/     # LittleFS file system
        ├── lfs.c           # LittleFS core
        ├── lfs_util.c      # Utility functions
        └── dfs_lfs.c       # DFS adapter layer

Usage Examples

1. Initialization Flow

The main program (src/hal_entry.c) implements a complete file system initialization flow:

#define FS_PARTITION_NAME   "filesystem"

void hal_entry(void)
{
    rt_kprintf("\n==================================================\n");
    rt_kprintf("Hello, Titan Board Mini!\n");
    rt_kprintf("==================================================\n");

    // 1. Initialize FAL (Flash abstraction layer)
    extern int fal_init(void);
    fal_init();

    // 2. Create MTD device
    extern struct rt_device* fal_mtd_nor_device_create(const char *parition_name);
    struct rt_device *mtd_dev = fal_mtd_nor_device_create(FS_PARTITION_NAME);

    if (mtd_dev == NULL)
    {
        rt_kprintf("Can't create a mtd device on '%s' partition.\n", FS_PARTITION_NAME);
    }
    else
    {
        rt_kprintf("Create a mtd device on the %s partition of flash successful.\n", FS_PARTITION_NAME);
    }

    // Main loop - LED blinking
    while (1)
    {
        rt_pin_write(LED_PIN_R, PIN_HIGH);
        rt_thread_mdelay(500);
        rt_pin_write(LED_PIN_R, PIN_LOW);
        rt_thread_mdelay(500);
    }
}

2. File Operation Examples

After the file system is initialized, standard POSIX file I/O interfaces can be used:

#include <dfs_file.h>

/* Write file example */
void write_file_example(void)
{
    FILE *fp = fopen("/filesystem/test.txt", "w");
    if (fp != NULL)
    {
        fprintf(fp, "Hello, Titan Board!\n");
        fprintf(fp, "This is a test file.\n");
        fclose(fp);
        rt_kprintf("File written successfully.\n");
    }
}

/* Read file example */
void read_file_example(void)
{
    char buffer[128];
    FILE *fp = fopen("/filesystem/test.txt", "r");
    if (fp != NULL)
    {
        while (fgets(buffer, sizeof(buffer), fp) != NULL)
        {
            rt_kprintf("%s", buffer);
        }
        fclose(fp);
    }
}

/* List files example */
void list_files_example(void)
{
    DIR *dir = opendir("/filesystem");
    if (dir != NULL)
    {
        struct dirent *entry;
        while ((entry = readdir(dir)) != NULL)
        {
            rt_kprintf("File: %s\n", entry->d_name);
        }
        closedir(dir);
    }
}

Running Results

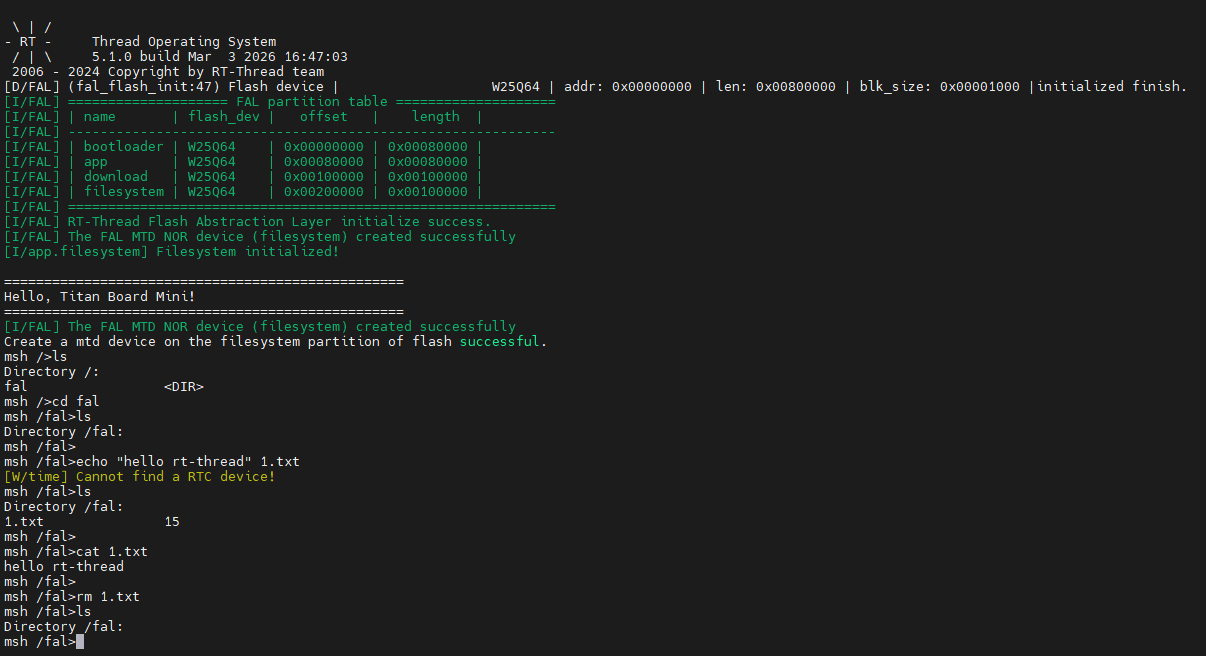

1. Terminal Output

After resetting Titan Board Mini, the terminal will output the following information:

iamge-flash

2. File System Testing

The file system can be tested in the msh command line:

msh >ls /filesystem
test.txt
config.ini
msh >cat /filesystem/test.txt
Hello, Titan Board!
This is a test file.
msh >

Notes

1. Flash Usage Limitations

  • Erase Cycles: W25Q64 sector erase cycles are approximately 100,000 times

  • Data Retention: Data retention time at room temperature is about 20 years

  • Erase Before Write: Flash must be erased before writing

  • Alignment Requirements: Write and erase operations need to be aligned to sectors/pages

2. File System Recommendations

  • Small File Optimization: LittleFS is suitable for frequent small file read/write operations

  • Power Protection: Use LittleFS’s power-safe features

  • Regular Backup: Important data should be backed up to other storage media

  • Capacity Planning: Reserve some space for wear leveling

3. Performance Optimization

  • DMA Transfer: Use DMA to improve QSPI transfer efficiency

  • Cache Optimization: Configure file system cache size appropriately

  • Batch Operations: Try to read/write in batches to reduce operation count

  • Error Handling: Add appropriate error handling and retry mechanisms

Extended Applications

Based on this example, the following applications can be extended:

  • Configuration Storage: Store system configuration parameters

  • Logging System: Implement circular logging

  • OTA Upgrade: Store new firmware for OTA upgrade

  • Data Cache: Cache sensor data

  • Resource Storage: Store images, audio, fonts and other resource files

  • Offline Data: Store offline database

  • Firmware Backup: Backup multiple firmware for A/B upgrade
