XiaoZhi Example Project

中文 | English

Introduction

This example demonstrates the basic functionality of XiaoZhi voice interaction device on the Edgi-Talk platform, running RT-Thread RTOS. It allows users to quickly test Wi-Fi connection, key wake-up, and voice interaction, serving as a foundation for further application development.

Software Description

  • Developed on Edgi-Talk platform.

  • Example features:

    • Wi-Fi connection and status display

    • Key wake-up and voice interaction

    • Device state management (standby, listening, sleep)

Usage

WIFI Modification

  1. In main.c at line 36, locate the following code:

while (rt_wlan_connect("TEST", "88888888"));

  1. Replace “TEST” with your WiFi name and “88888888” with the password, then recompile and flash.

  2. For detailed WiFi usage, refer to: WIFI

Build and Download

  1. Open and compile the project.

  2. Connect the board USB to PC via DAP.

  3. Flash the compiled firmware to the device.

Running Result

  • After power-on, the device runs the example automatically.

  • The screen displays the current status:

    • Connecting – connecting to Wi-Fi

    • On standby – idle mode

    • Listening – ready for voice interaction

    • Sleeping – low-power sleep mode

  • Press the top button to enter Listening mode for voice interaction.

Notes

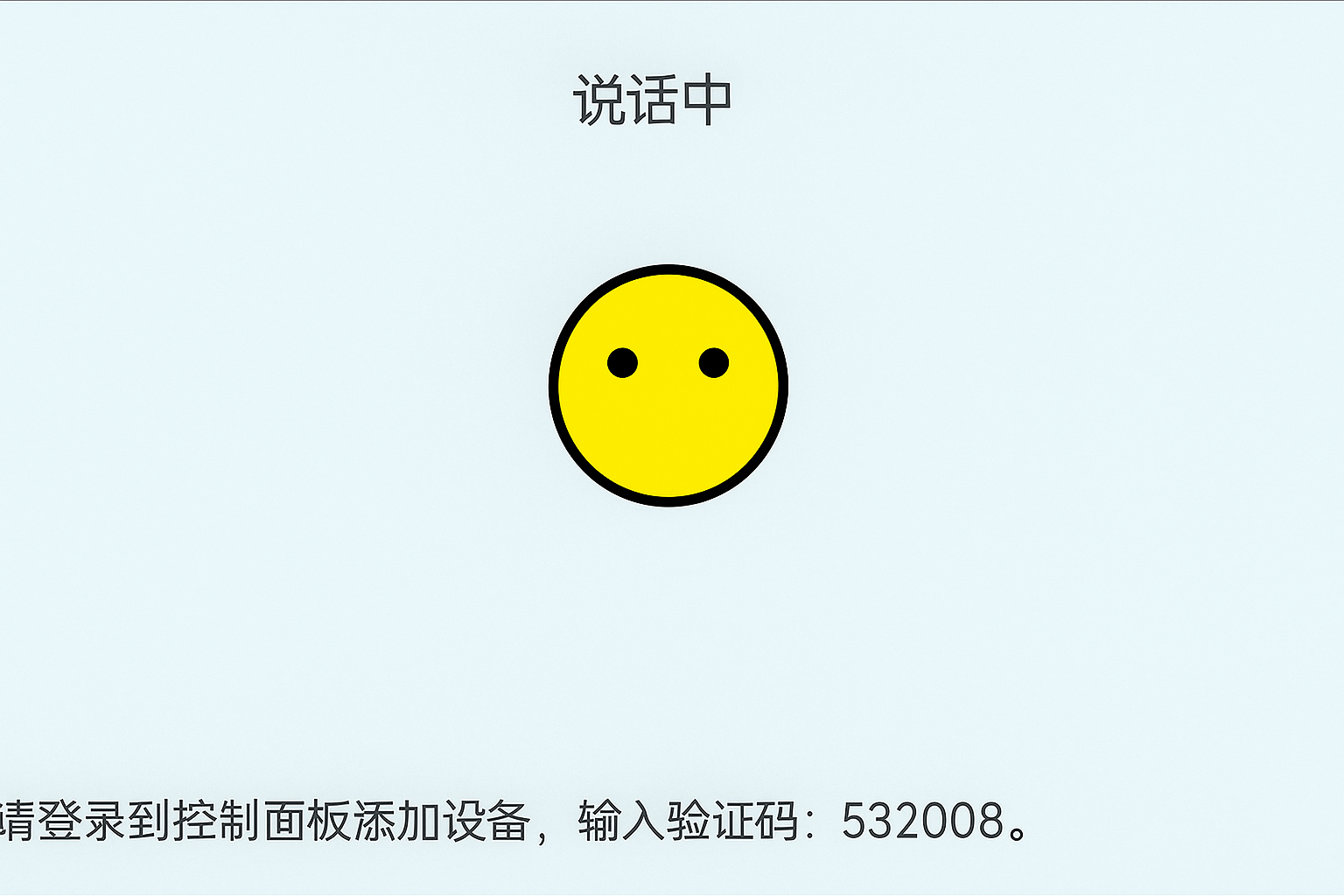

  • First-time setup requires backend binding via XiaoZhi Official Website. alt text alt text

  • Ensure Wi-Fi SSID and password are correct and use 2.4 GHz frequency.

  • Device must have internet access.

  • To modify graphical configurations, use:

tools/device-configurator/device-configurator.exe
libs/TARGET_APP_KIT_PSE84_EVAL_EPC2/config/design.modus

  • Save changes and regenerate code after modification.

Startup Sequence

+------------------+
|   Secure M33     |
|  (Secure Core)   |
+------------------+
          |
          v
+------------------+
|       M33        |
| (Non-Secure Core)|
+------------------+
          |
          v
+-------------------+
|       M55         |
| (Application Core)|
+-------------------+

⚠️ Flash in this order strictly to ensure proper operation.

  • If the example does not run, first compile and flash Edgi-Talk_M33_S_Template.

  • To enable M55:

RT-Thread Settings --> Hardware --> select SOC Multi Core Mode --> Enable CM55 Core
