Introduction

This example project is based on the Edgi-Talk platform and demonstrates the green LED blinking function running on the RT-Thread real-time operating system. Through this project, users can quickly verify the GPIO configuration and LED control logic of the board, providing a basic reference for subsequent hardware control and application development.

GPIO Overview

GPIO (General Purpose Input/Output) is one of the most commonly used peripheral interfaces of MCUs. It can be configured via software as input mode or output mode:

• Input Mode: Used to read external voltage levels, such as button inputs.

• Output Mode: Used to control peripheral voltage levels, such as lighting an LED or driving a buzzer.

GPIO Abstraction in RT-Thread

RT-Thread provides a PIN device driver framework, which abstracts hardware differences through a unified interface:

• rt_pin_mode(pin, mode): Set the pin mode (input/output/pull-up/pull-down, etc.)

• rt_pin_write(pin, value): Output a voltage level (high/low)

• rt_pin_read(pin): Read input level

This allows developers to perform GPIO control using RT-Thread APIs without directly manipulating hardware registers.

In this example, the LED pin is configured as output mode. The software toggles the output between high and low levels in a loop to achieve LED blinking.

Hardware Description

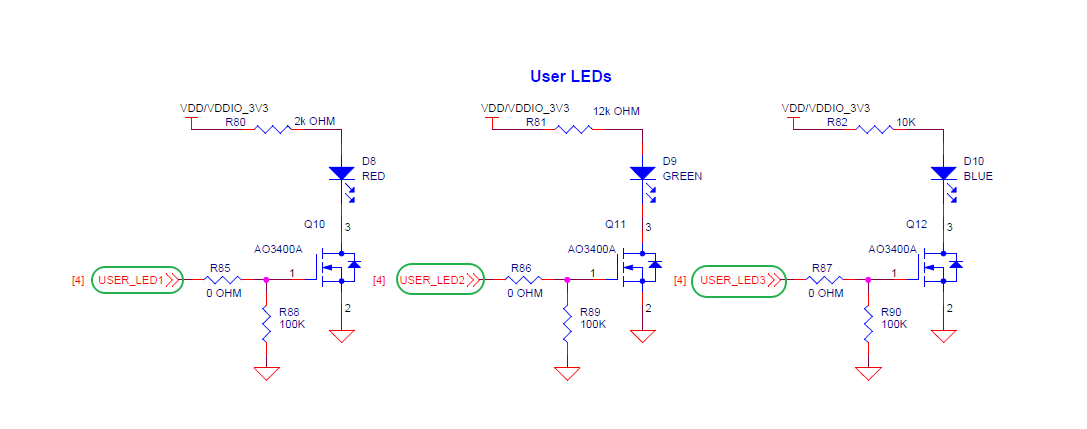

As shown above, the Edgi-Talk board provides three user LEDs: USER_LED1 (RED), USER_LED2 (GREEN), and USER_LED3 (BLUE). Among them, USER_LED2 corresponds to pin P16_7. When the MCU outputs a high level, the LED lights up; when it outputs a low level, the LED turns off.

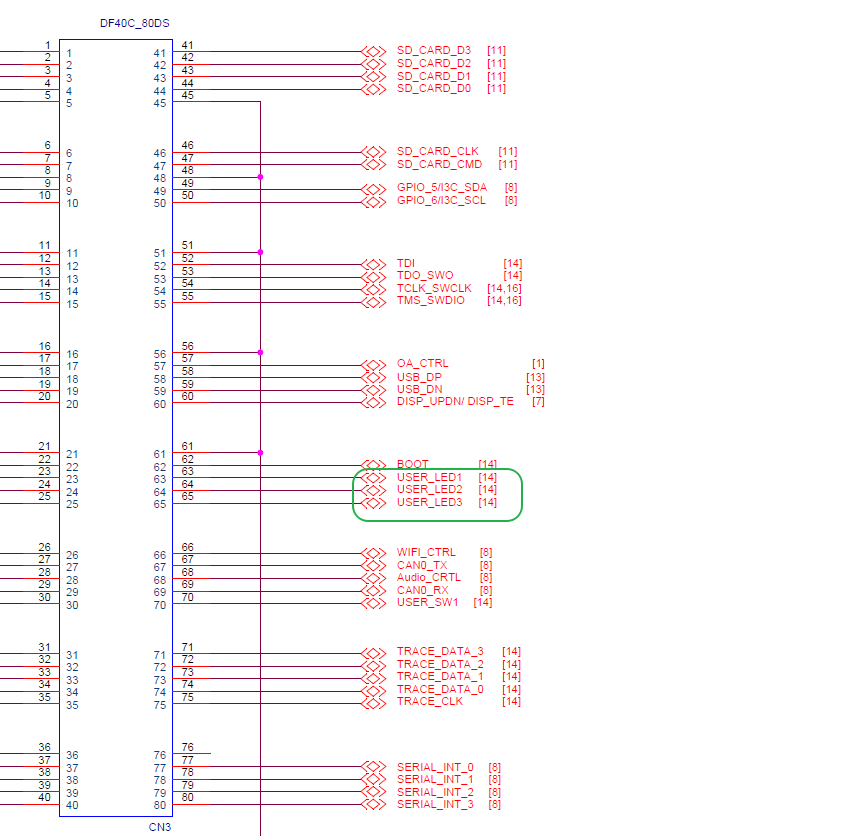

The position of the LEDs on the development board is shown below:

Software Description

• The project is developed based on the Edgi-Talk platform.

• Example features include:

  • Periodic blinking of the green LED

  • GPIO output control

• The project structure is simple and helps users understand LED control logic and hardware driver interfaces.

Usage

Build and Download

1. Open the project and compile it.

2. Connect the board’s USB interface to the PC using the onboard debugger (DAP).

3. Use the programming tool to flash the generated firmware to the development board.

Running Result

• After flashing, power on the board to run the example project.

• The green LED blinks every 500 ms, indicating that GPIO control and system scheduling are functioning correctly.

• Users can modify the blinking period or LED control logic as needed.

Notes

• To modify the graphical configuration of the project, open the configuration file using the following tool:

tools/device-configurator/device-configurator.exe
libs/TARGET_APP_KIT_PSE84_EVAL_EPC2/config/design.modus

• After modification, save the configuration and regenerate the code.

Startup Sequence

The system starts in the following order:

+------------------+
|   Secure M33     |
|  (Secure Core)   |
+------------------+
          |
          v
+------------------+
|       M33        |
| (Non-Secure Core)|
+------------------+
          |
          v
+-------------------+
|       M55         |
| (Application Core)|
+-------------------+

⚠️ Please follow the above flashing order strictly; otherwise, the system may fail to run properly.

---

• If the example does not run correctly, first compile and flash the Edgi-Talk_M33_S_Template project to ensure that initialization and core startup are working properly before running this example.

• To enable the M55 core, enable the following configuration in the M33 project:

  RT-Thread Settings --> Hardware --> select SOC Multi Core Mode --> Enable CM55 Core
