Edgi_Talk_M55_DEEPCRAFT_Deploy_Vision

English (current) | 中文

1. Overview

This project is an RT-Thread implementation of PSOC Edge MCU: Machine learning - DEEPCRAFT deploy vision, running on the Edgi-Talk CM55 core, using:

  • CherryUSB Host (DWC2, Infineon)

  • UVC USB camera capture

  • DEEPCRAFT/TFLM model inference

  • Real-time LCD rendering of bounding boxes and labels

It keeps the same functional goal as the ModusToolbox example (real-time vision detection + UART logs), but the software framework is RT-Thread (MSH, SCons, RT-Thread Studio).

2. Main Differences vs. ModusToolbox Example

  • OS/project framework: ModusToolbox -> RT-Thread project structure and configuration flow

  • Runtime control: start/stop UVC stream through MSH commands (usbh_uvc_start / usbh_uvc_stop)

  • USB app layer location: libraries/Common/board/ports/usb

  • AI app layer location: libraries/Common/deepcraft_ai and applications/uvc_ai_app.c

  • Model files are split out into:

    • libraries/Common/deepcraft_ai/model/model.c

    • libraries/Common/deepcraft_ai/model/model.h

3. Key Directory Paths

  • App entry: applications/main.c

  • AI app logic: applications/uvc_ai_app.c

  • UVC app layer: libraries/Common/board/ports/usb/usbh_uvc_app.c

  • UVC stream processing: libraries/Common/board/ports/usb/usbh_uvc_stream.c

  • Model files: libraries/Common/deepcraft_ai/model/model.c, libraries/Common/deepcraft_ai/model/model.h

  • AI core processing: libraries/Common/deepcraft_ai/src/uvc_ai.c

4. Environment and Dependencies

  • RT-Thread Studio (2.2.9 or newer recommended)

  • GNU Arm toolchain (with Cortex-M55 + Helium/MVE support)

  • Board: PSOC Edge E84 family (Edgi-Talk target hardware)

  • Camera: UVC USB camera (320x240 YUYV recommended)

  • Display: project default LCD configuration

Note: This project depends on the M33 boot chain to enable CM55. If CM55 does not start, verify M33 project configuration and flashing first.

5. Important Configuration Items

Check these options in rtconfig.h / .config:

  • RT_USING_CHERRYUSB

  • RT_CHERRYUSB_HOST

  • RT_CHERRYUSB_HOST_DWC2_INFINEON

  • RT_CHERRYUSB_HOST_VIDEO

  • BSP_USING_DEEPCRAFT_AI

  • RT_USING_MSH, RT_USING_FINSH

If you want local changes in usbh_uvc_stream.c / usbh_uvc_port.c to take effect, enable:

  • RT_CHERRYUSB_HOST_BUILD_FROM_SOURCE

6. Build and Flash

6.1 RT-Thread Studio

  1. Import projects/Edgi_Talk_M55_DEEPCRAFT_Deploy_Vision

  2. Check configuration (menuconfig / Settings)

  3. Build

  4. Flash via KitProg3

6.2 Command line (SCons)

Run in project directory:

scons -j8

Generated artifacts include:

  • rt-thread.elf

  • rtthread.hex

7. Run Steps

  1. Connect UART terminal at 115200 8N1

  2. Connect LCD and UVC camera

  3. After boot, run in MSH:

usbh_uvc_start 0 320 240

Parameters:

  • 0 = YUYV

  • 1 = MJPEG

Note: In AI mode, the app forces YUYV + 320x240 (other input parameters are overridden).

Stop command:

usbh_uvc_stop

7.1 Runtime Screenshots

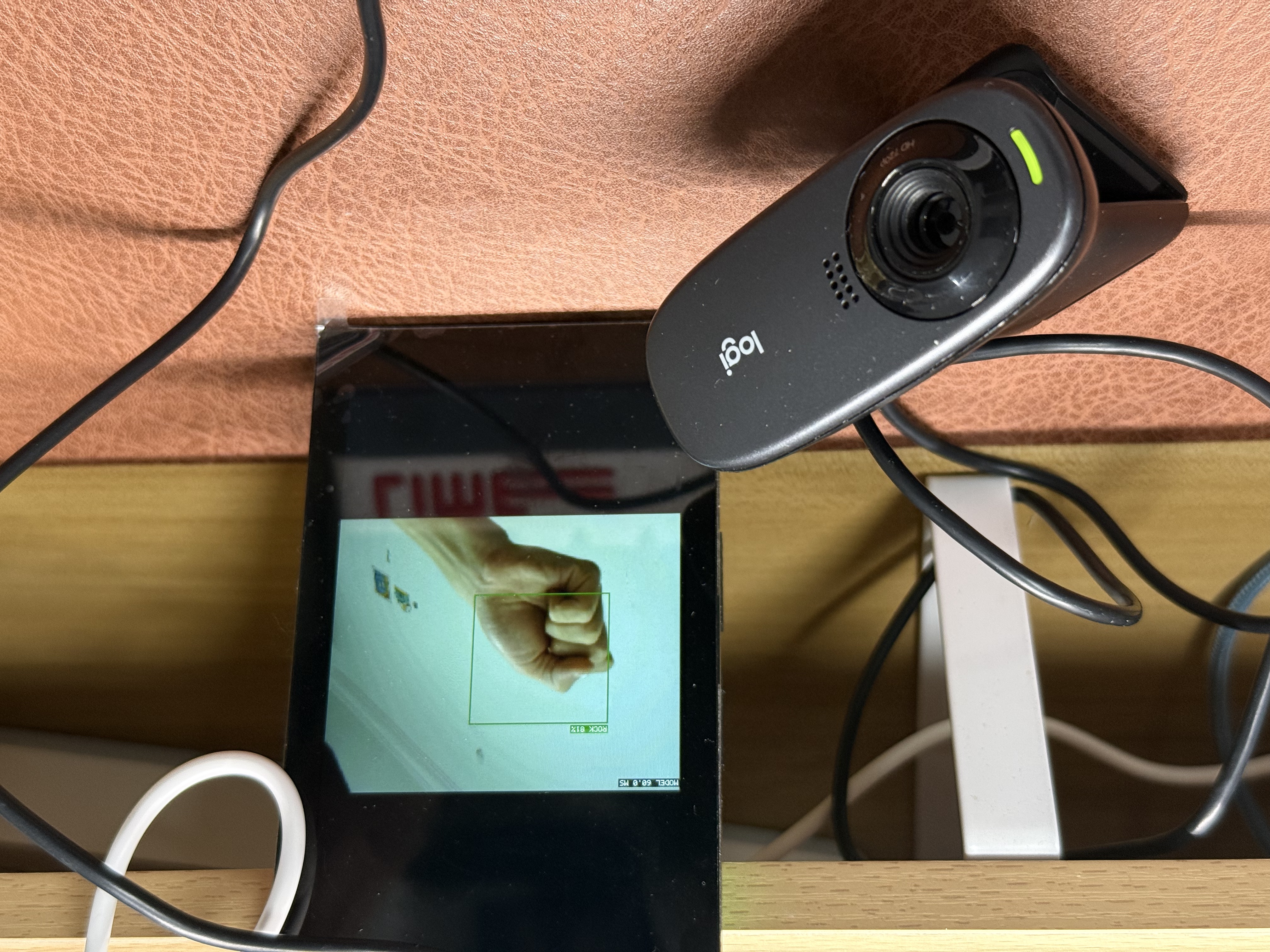

  • Figure 1: System running and detection display

Runtime-1

  • Figure 2: Camera frame with detection boxes

Runtime-2

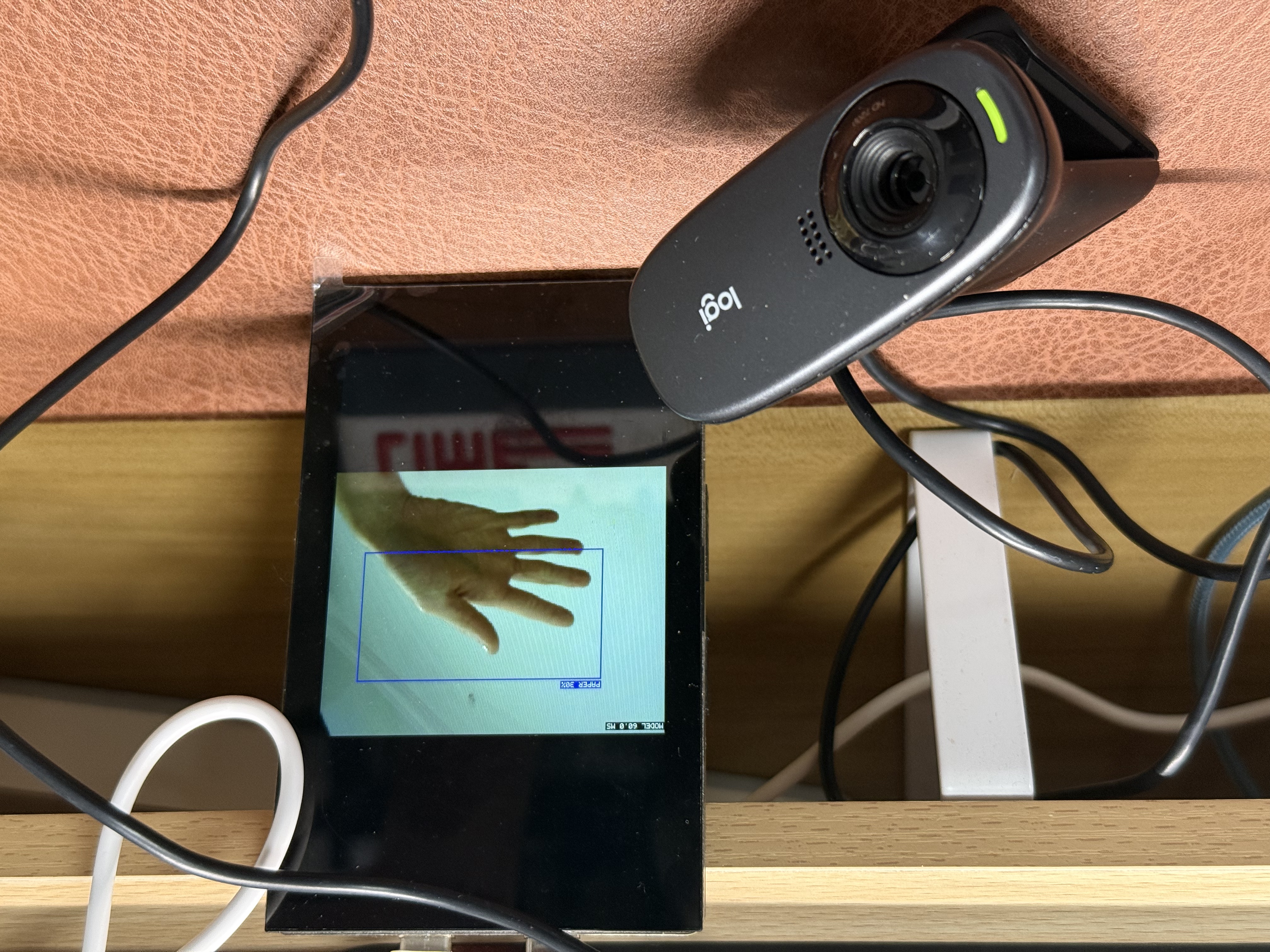

  • Figure 3: UART logs and detection output

Runtime-3

8. Logs and Behavior

  • UVC status logs:

    • UVC fps:...

    • start uvc stream...

  • AI logs:

    • AI inference ...

    • `AI #… bbox=[…]

9. Error Handling

If you see:

  • uvc abort1 / uvc abort2

The current implementation triggers a simplified auto-recovery flow (restart UVC stream) and prints:

  • UVC stream restart (...)

If this happens frequently, prioritize checking:

  • camera power/cable quality

  • UVC bandwidth and resolution settings

  • application load (display refresh, AI inference, log volume)

10. Model Replacement

This project now manages model files in a dedicated folder (aligned with the reference structure):

  • libraries/Common/deepcraft_ai/model/model.c

  • libraries/Common/deepcraft_ai/model/model.h

When replacing model files, keep exported interfaces compatible with current code (for example IMAI_init / IMAI_compute / IMAI_finalize) and rebuild.

11. Multi-core Boot Chain

Recommended flashing order:

  1. CM33 Secure

  2. CM33 Non-Secure (enables CM55)

  3. CM55 this project

If CM55 does not run, make sure CM55 is enabled in the M33 project configuration.
